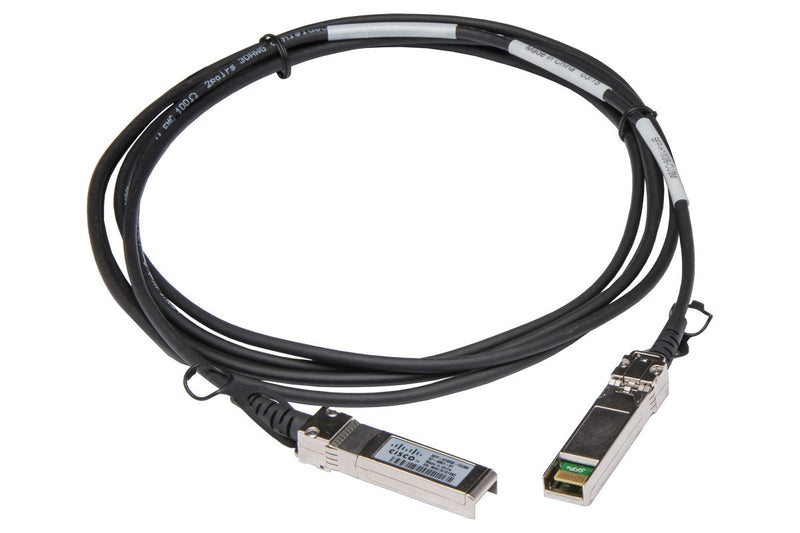

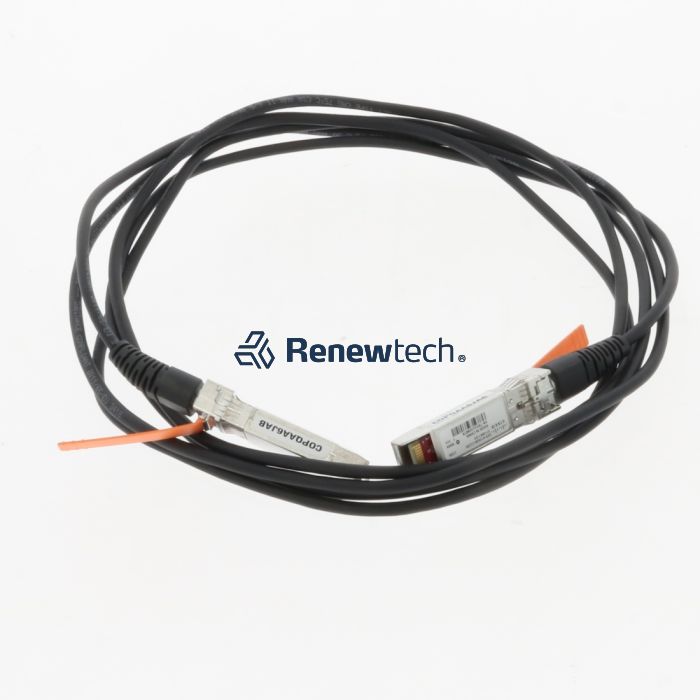

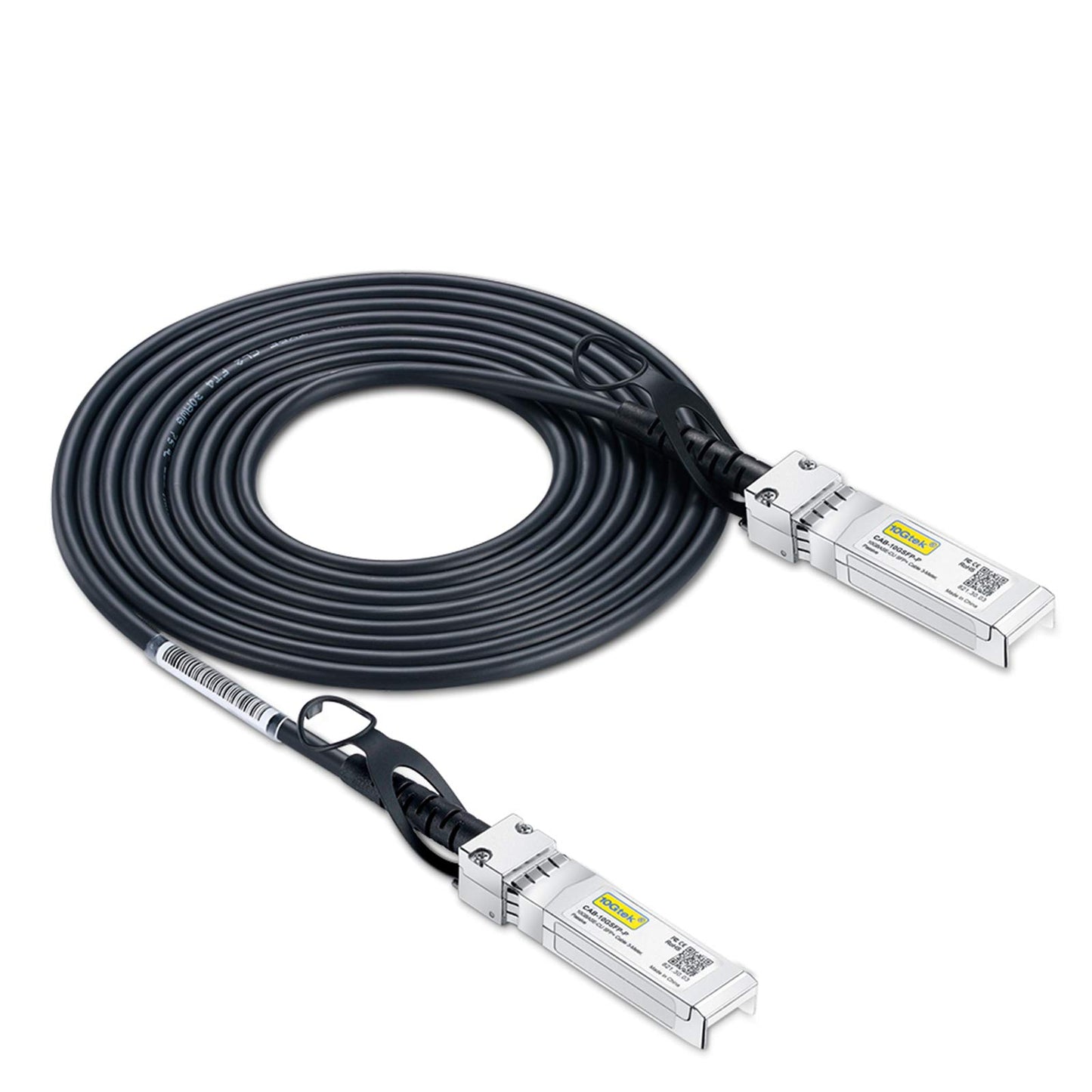

CISCO 10GBASE-CU SFP+ 3M Twinax Passive Cable

VENDOR: CISCO Mfg Part#: SFP-H10GB-CU3M
1 3
Photo is for illustration purposes only. Actual product may be different.
$124.00
$124.00
Sale Sold out
MSRP: $181.00
Shipping calculated at checkout.
  • 3-meter length passive Twinax cable with SFP+ connectors on both ends
  • 30AWG (American Wire Gauge) for flexible, short-reach high-speed links
  • Supports 10GBASE-CU standard for 10 Gigabit Ethernet
  • Low power consumption of only 0.1 watts
  • TAA compliant and manufactured in the United States
  • Distinct orange bail latch for easy identification

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Reduces power consumption in high-density environments with 0.1W usage
  • TAA compliance ensures eligibility for government and institutional procurement
  • Cost-effective high-speed interconnect alternative to active optical cables

Product Overview

The CISCO 10GBASE-CU SFP+ 3 Meter Cable (Model: SFP-H10GB-CU3M) is a passive Twinax solution tailored for short-reach 10 Gigabit Ethernet links. It features SFP+ connectors on both ends and a 30AWG gauge for flexibility and reliable signal quality over a 3-meter range. With 0.1W power consumption and a TAA-compliant design, this cable is well-suited for energy-efficient, secure government and enterprise deployments. Made in the United States, it offers an ideal balance between performance and cost-efficiency for high-density networking environments.

Specifications

Product Overview
Type 10GBASE-CU SFP+ Twinax Cable
Cable Type Passive Twinax
Length 3 meters
Connector Type SFP+ to SFP+
Wire Gauge 30 AWG
Power Consumption 0.1 W
Form Factor Direct Attach Cable (DAC)
Application 10 Gigabit Ethernet
Product Model SFP-H10GB-CU3M
Hot Swappable Yes

Wireless Features

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliance Yes
CE Marking Yes
FCC Certification Yes
ISO/IEC Standards ISO/IEC 11801 compliant
EMC Standards EN55022 Class B

Advanced Security Features

Interfaces
Interface Type SFP+
Data Transfer Rate 10 Gbps
Cable Impedance 100 Ohms
Connector Plating Gold
Interface Connector SFP+ compliant edge connector
Compatibility Compliant with Cisco and MSA SFP+ standards

Physical & Environmental
Cable Jacket Material PVC
Minimum Operating Temperature 0°C (32°F)
Maximum Operating Temperature 70°C (158°F)
Storage Temperature Range -40°C to 85°C
Relative Humidity (Operating) 10% to 80% non-condensing
Relative Humidity (Storage) 5% to 95% non-condensing
Cable Diameter Approx. 6.0 mm

Cloud Management & Licensing
Cloud Managed No
License Requirements None
Plug and Play Yes
