Cisco 2.0TB U.2 NVMe SSD High Performance Value Endurance

VENDOR: CISCO Mfg Part#: UCSB-NVME2H-I2TBV=
1 3

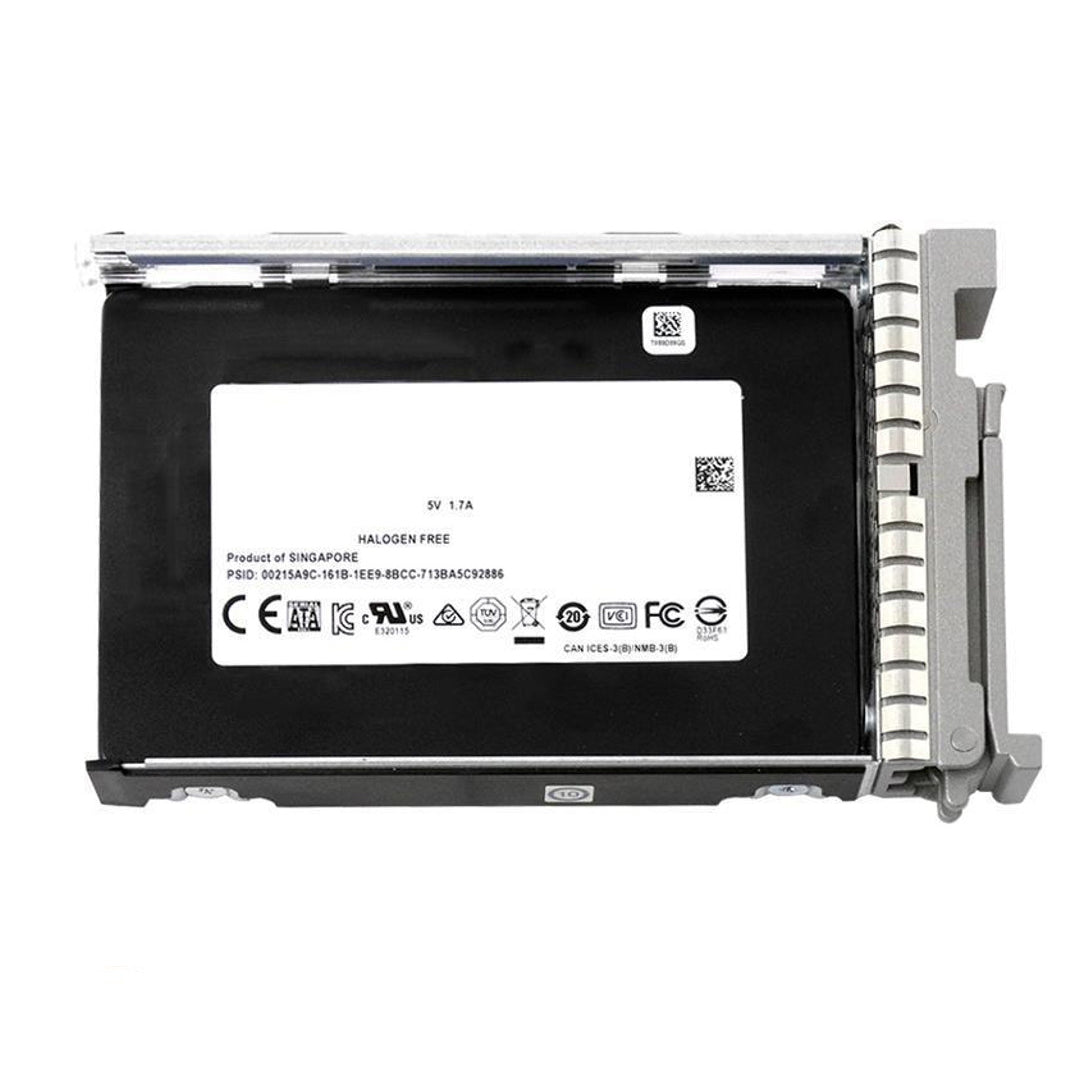

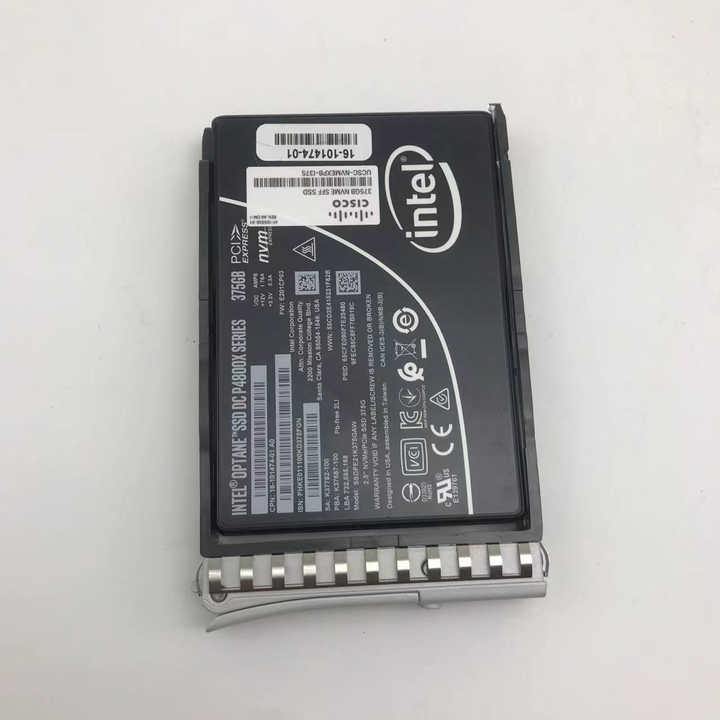

Photo is for illustration purposes only. Actual product may be different.
$5,649.00
$5,649.00
Sale Sold out
MSRP: $10,216.00
Shipping calculated at checkout.
  • Hot-swappable 2.5-inch U.2 form factor for easy integration
  • 2TB storage capacity optimized for enterprise environments
  • PCIe NVMe interface for high-speed data transfer
  • Intel P4510 platform for reliable performance and endurance
  • Designed for Cisco UCS B200 M5 and B480 M5 blade servers
  • TAA compliant for government and enterprise procurement standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed specifically for Cisco UCS and SmartPlay Select M5 servers, ensuring seamless compatibility and integration.
  • High-performance NVMe interface offers enhanced speed and reduced latency for critical workloads.
  • Hot-swap capability allows for easier maintenance and improved uptime in enterprise deployments.

Product Overview

The Cisco 2.0TB U.2 NVMe SSD is an enterprise-class solid-state drive engineered for performance-intensive and write-optimized applications. Built around the Intel P4510 NVMe platform, this SSD provides a robust 2TB of capacity in a 2.5-inch U.2 form factor. The drive supports PCIe NVMe connectivity, ensuring ultra-low latency and maximum throughput. Its hot-swap capability simplifies serviceability in mission-critical deployments.

Designed for compatibility with Cisco UCS B200 M5 and B480 M5 Blade Servers, and multiple configurations of SmartPlay Select B200 M5 systems, this SSD offers high performance and value endurance. It incorporates TAA compliance, making it suitable for government and enterprise installations. The U.2 interface ensures high-speed I/O operations, significantly improving performance.

With its dependable Intel P4510 lineage, this Cisco SSD supports data center agility and offers long-term ROI in storage efficiency, performance scaling, and system uptime.

Specifications

Product Overview
Type Solid state drive - hot-swap
Device Type Solid state drive - hot-swap
Form Factor 2.5"
Capacity 2 TB
Power Consumption (Active) 17 W
Power Consumption (Idle) 5 W
Hot-Swap Capability Yes
NAND Flash Type 3D TLC NAND
Endurance Rating (DWPD) 1 drive write per day (DWPD)
MTBF 2 million hours

Physical & Environmental
Dimensions (W x D x H) 69.85 mm x 100.45 mm x 15 mm
Weight 140 grams
Operating Temperature 0 °C to 70 °C
Storage Temperature -55 °C to 95 °C
Vibration (Operating) 2.17 GRMS (5–800 Hz)
Vibration (Non-Operating) 3.13 GRMS (5–800 Hz)
Shock (Operating) 1000 G / 0.5 ms
Shock (Non-Operating) 1000 G / 0.5 ms
Humidity Range (Operating) 5% to 95% (non-condensing)

Cloud Management & Licensing
Enterprise Management Compatibility Cisco UCS Manager
Lifecycle Monitoring Yes through UCS tooling
Hot Plug Support Yes

Interfaces
Interface Type U.2 PCIe 3.1 x4 (NVMe)
Interfaces 1 x PCI Express (NVMe)
Data Transfer Rate Up to 3200 MB/s (sequential read)
Sequential Write Speed Up to 3000 MB/s
Random Read IOPS (4KB) 638,000 IOPS
Random Write IOPS (4KB) 83,000 IOPS
Protocol NVMe 1.2
Compatible Drive Bay 2.5-inch U.2 bay

Compliance & Origin
TAA Compliant Yes
Country of Origin CHINA / TAIWAN
RoHS Compliance Yes
HALT Tested Yes
Certifications CE, UL, FCC

Advanced Security Features
End-to-End Data Protection Yes
AES 256-Bit Encryption Yes
Power-Loss Protection Yes
Support for Secure Erase Yes
