Cisco 6.4TB Intel P5600 U.2 NVMe SSD High Perf Medium Endurance

VENDOR: CISCO Mfg Part#: UCS-NVMEI4-I6400=
1 2
Photo is for illustration purposes only. Actual product may be different.
$16,149.00
$16,149.00
Sale Sold out
MSRP: $29,204.00
Shipping calculated at checkout.
  • 6.4TB storage capacity in 2.5" U.2 form factor
  • PCIe NVMe interface for high-speed data transfer
  • Medium endurance classification suitable for mixed workloads
  • TAA-compliant, manufactured in China/Taiwan
  • Compatible with multiple Cisco UCS M6 server models
  • 3-year limited warranty with next business day replacement

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for Cisco UCS M6 platforms to ensure seamless system integration and support
  • High-performance NVMe technology enhances data throughput for virtualized and compute-intensive applications
  • 3-year manufacturer's warranty with next business day replacement reduces potential downtime

Product Overview

The Cisco 6.4TB Intel P5600 U.2 NVMe SSD offers exceptional performance for data-intensive enterprise environments. Leveraging a high-speed PCIe NVMe interface, it delivers fast read/write operations ideal for virtualized workloads and high-performance computing. Its 2.5-inch U.2 form factor ensures compatibility with Cisco UCS M6 servers.

As a medium endurance SSD, it balances performance and longevity and is backed by a 3-year warranty with next business day support. TAA compliance and sourcing from CHINA / TAIWAN meet enterprise procurement standards.

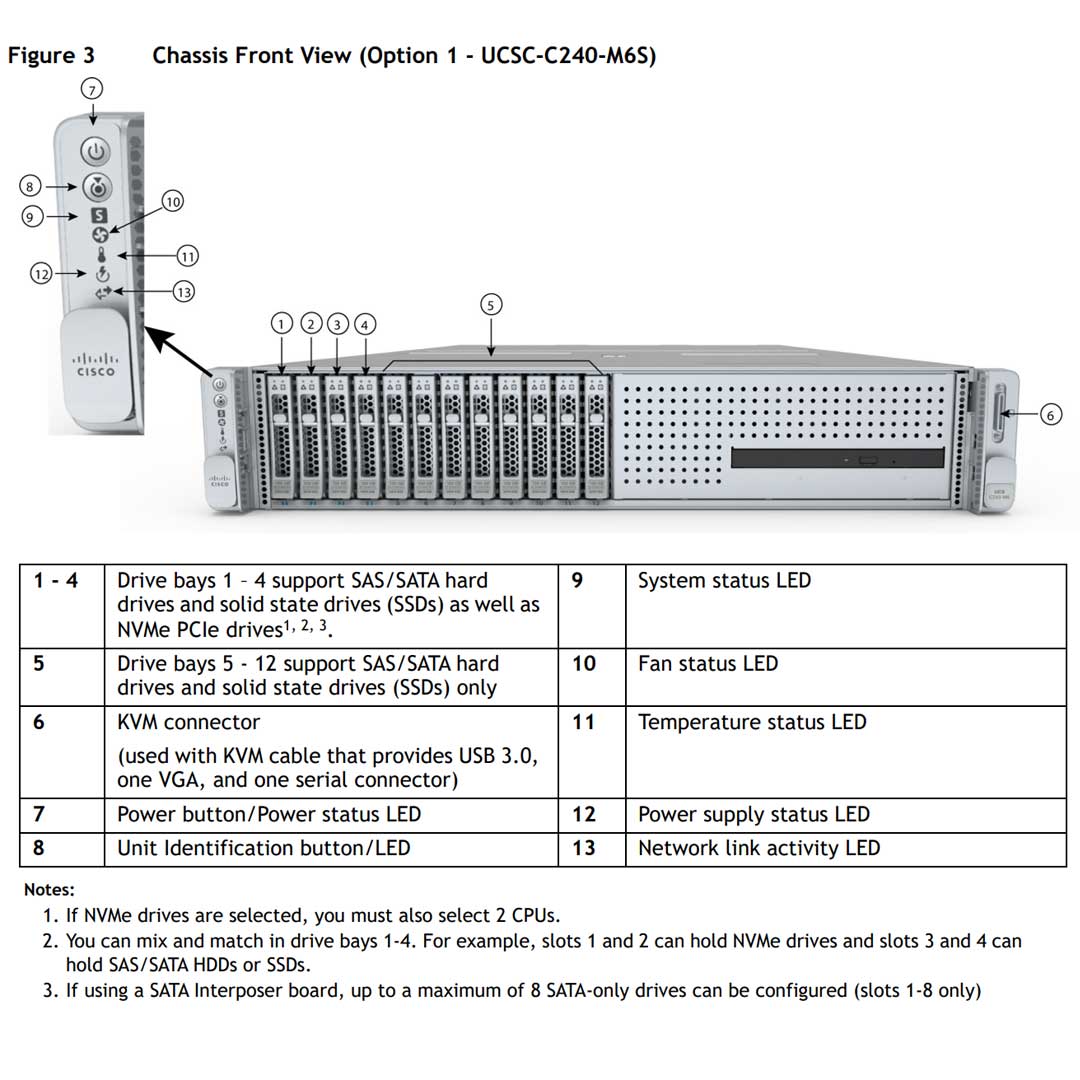

Optimized for Cisco UCS platforms, including the C220, C225, C240, and C245 M6 models, this SSD supports virtualization, cloud-native, and database workloads where I/O performance is critical.

Specifications

Product Overview
Type Solid state drive - internal
Device Type Solid state drive - internal
Form Factor 2.5"
Capacity 6.4 TB
Features High Performance, Medium Endurance
Power Consumption (Active) 18.7 W
Power Consumption (Idle) 5 W
MTBF (Mean Time Between Failures) 2 million hours
Endurance Rating 3.2 DWPD (Drive Writes Per Day)
NAND Type 3D TLC NAND
Controller Intel own controller for P5600 Series

Physical & Environmental
Dimensions (W x D x H) 69.85 mm x 100.45 mm x 15 mm
Weight 140 g
Operating Temperature 0°C to 70°C
Storage Temperature -55°C to 95°C
Shock Resistance 1000 G (0.5 ms)
Vibration (Operating) 2.17 GRMS (5-800 Hz)
Vibration (Non-operating) 3.13 GRMS (5-800 Hz)
Humidity (Operating) 5% – 95% (non-condensing)

Cloud Management & Licensing
Management Interface Supported via Cisco UCS Manager
Licensing Requirements No additional license required for basic usage
Cloud Integration Compatible with Cisco Intersight for UCS Platforms

Interfaces
Interface U.2 PCIe (NVMe)
Interfaces 1 x PCI Express (NVMe)
Interface Standard PCIe Gen4 x4 NVMe 1.3c
Compatible Bay 2.5"
Data Transfer Rate Up to 6.2 GB/s (read), up to 3.9 GB/s (write)
4KB Random Read IOPS 860,000 IOPS
4KB Random Write IOPS 195,000 IOPS
Latency (Read) 7 µs
Latency (Write) 13 µs

Compliance & Origin
Country of Origin CHINA / TAIWAN
TAA Compliance Yes
RoHS Compliance Yes
Certifications CE, UL, FCC, VCCI, BSMI, KCC

Advanced Security Features
Data Protection End-to-End Data Protection with CRC
Encryption AES 256-bit Self-Encrypting Drive (SED)
Power-fail Protection Yes (via onboard capacitors)
Secure Erase Yes (via NVMe Format NVM command)
