Products Memory, Storage and Components Cisco 7.6TB Intel P5500 U.2...

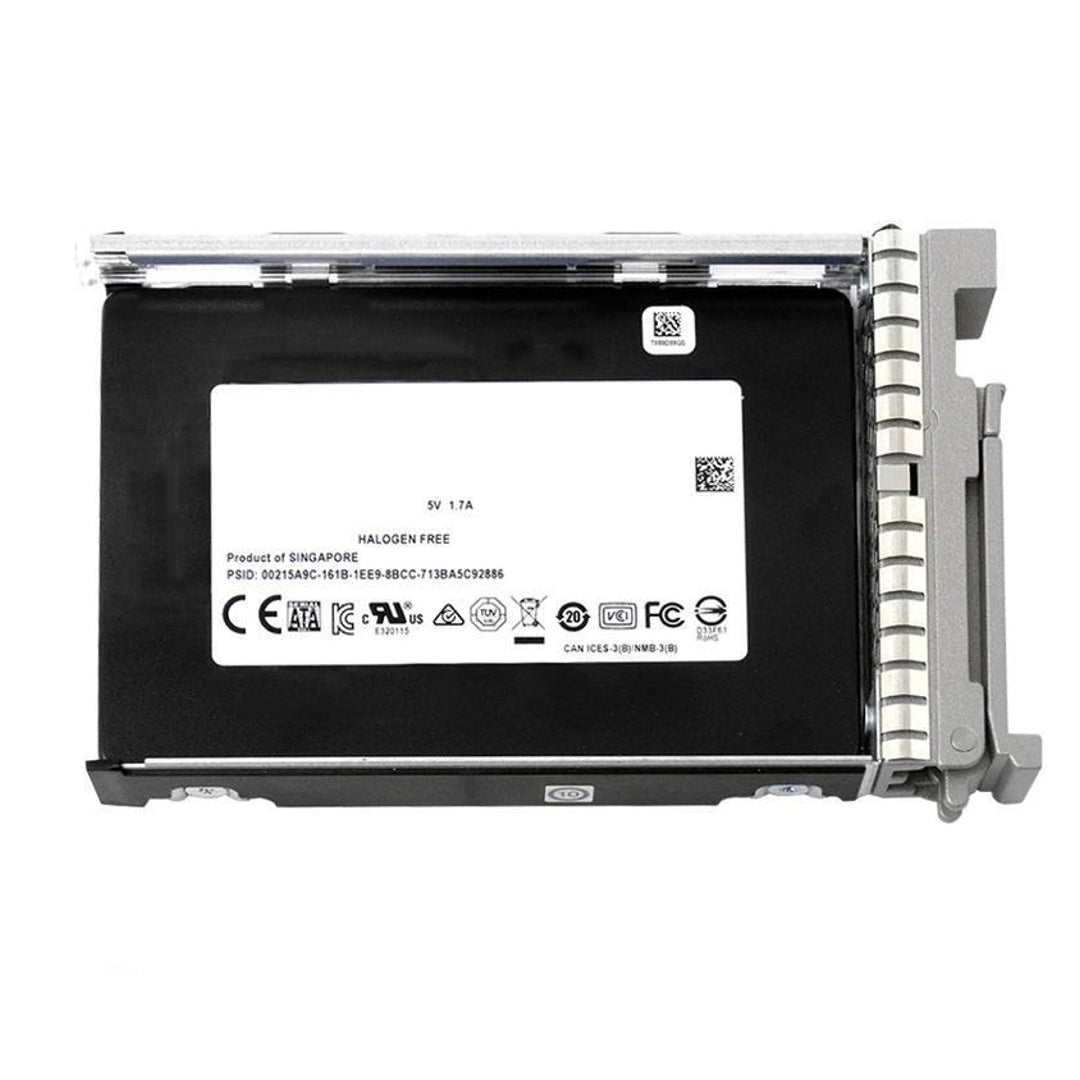

Cisco 7.6TB Intel P5500 U.2 NVMe SSD High Perf Medium Endurance

VENDOR: CISCO Mfg Part#: UCS-NVMEI4-I7680=
1 3
Photo is for illustration purposes only. Actual product may be different.
$13,454.00
$13,454.00
Sale Sold out
MSRP: $24,330.00
Shipping calculated at checkout.
  • 7.6TB U.2 PCIe NVMe SSD with 2.5" SFF form factor
  • High performance, medium endurance classification for enterprise workloads
  • Compatible with Cisco UCS C220 M6 and C240 M6 2.5" SFF rack servers
  • Includes 3-year limited warranty with next-business-day replacement
  • TAA compliant and manufactured in China or Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for Cisco UCS C220 and C240 M6 rack servers, ensuring seamless integration and performance alignment.
  • High-capacity 7.6TB NVMe SSD enables efficient workload consolidation and reduced data center footprint.
  • 3-year warranty with NBD replacement offers strong post-purchase service assurance for mission-critical environments.

Product Overview

The Cisco 7.6TB Intel P5500 NVMe SSD delivers high-performance storage in a compact 2.5-inch U.2 form factor, using a PCIe NVMe interface for rapid data throughput. Designed for Cisco UCS C220 M6 and C240 M6 SFF rack servers, this drive is tailored for high-demand enterprise workloads including virtualization and analytics. Offering a 7.6TB capacity, it reduces storage density concerns, while the 3-year warranty with next-business-day support enhances reliability. Fully TAA compliant, this SSD is ideal for both public and private sector deployments.

Specifications

Product Overview
Type Solid state drive - internal
Device Type Solid state drive - internal
Form Factor 2.5" SFF
Drive Class High Performance, Medium Endurance
Capacity 7.6 TB
Power Consumption (Active) Up to 14.8 W
Power Consumption (Idle) Less than 5 W
NAND Flash Type 3D TLC NAND
MTBF 2 million hours
Endurance Rating (DWPD) 1.3 DWPD
Target Workload Enterprise / Data Center
Warranty 3-year limited warranty with next-business-day replacement

Physical & Environmental
Dimensions (W x D x H) 69.85 mm x 100 mm x 7 mm
Weight 125 g
Operating Temperature 0°C to 70°C
Storage Temperature -55°C to 95°C
Operating Humidity 5% to 95% non-condensing
Vibration, Operating 2.17 GRMS (5-700 Hz)
Vibration, Non-Operating 3.13 GRMS (5-800 Hz)
Shock (Operating) 1000 G (0.5 ms half sine)

Cloud Management & Licensing
Management Tools Cisco UCS Manager (When installed in UCS systems)
Firmware Update Method In-band or via UCS Manager

Interfaces
Interface Type PCIe 4.0 x4 NVMe
Interface Connector U.2 (SFF-8639)
Interfaces 1 x PCI Express U.2 (NVMe)
Interface Bandwidth Up to 64 Gbps (PCIe 4.0 x4)
Compatible Drive Bay 2.5" U.2/SFF (7 mm height)
Hot-Swap Support Yes

Compliance & Origin
TAA Compliance Yes
Country of Origin China / Taiwan
RoHS Compliance Yes
Certifications UL, CE, FCC, VCCI, KC, RCM, BSMI

Advanced Security Features
End-to-End Data Protection Yes, with CRC and ECC
Secure Erase Supported
TCG Opal Support No
FIPS 140-2 Validation No
