Products Memory, Storage and Components CISCO 8TB 2.5in U.2 Intel P...

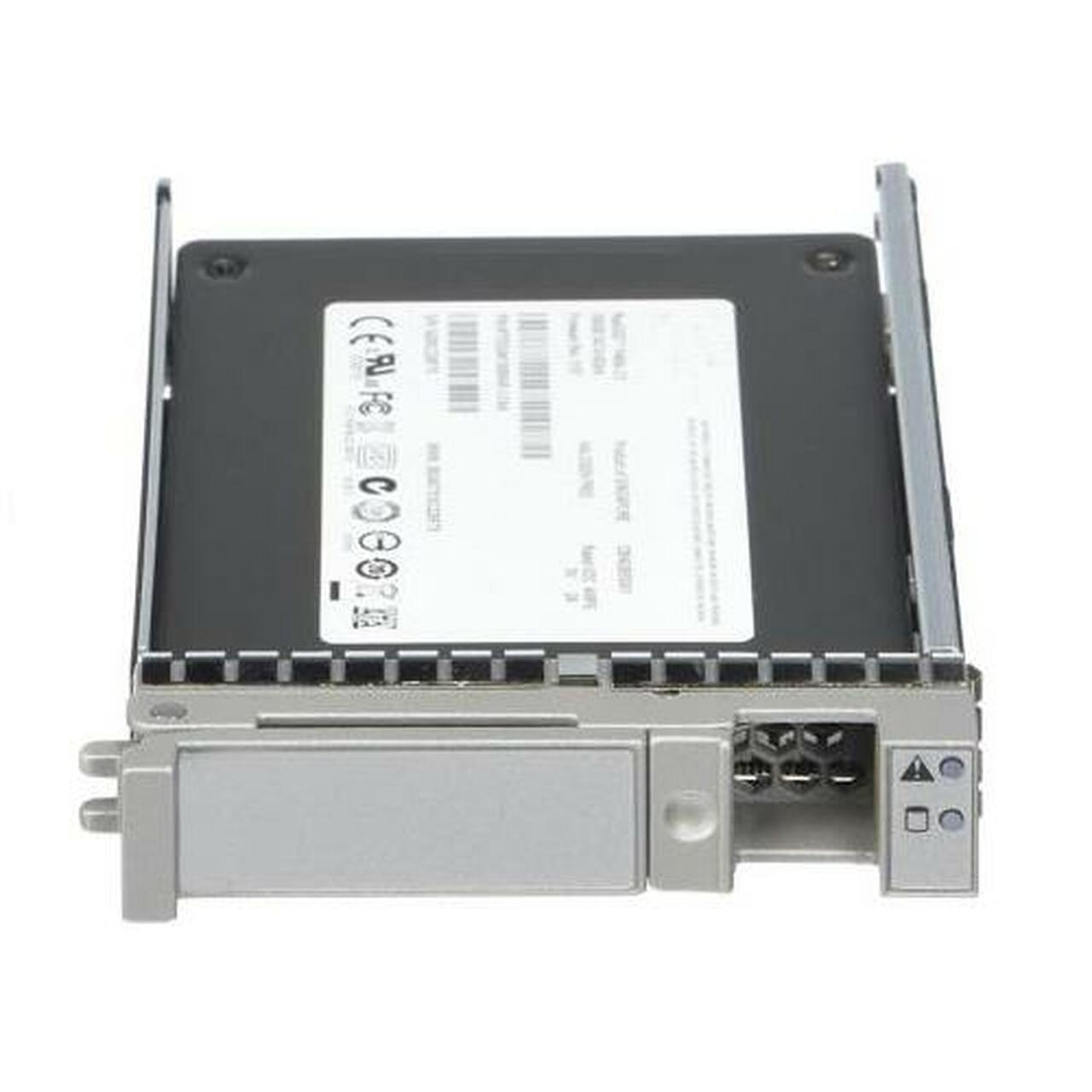

CISCO 8TB 2.5in U.2 Intel P4510 NVMe SSD - High Perf., Value Endurance

VENDOR: CISCO Mfg Part#: UCSC-NVMEHW-I8000=
1 3
Photo is for illustration purposes only. Actual product may be different.
$14,192.00
$14,192.00
Sale Sold out
MSRP: $25,666.00
Shipping calculated at checkout.
  • 8TB NVMe SSD with 2.5-inch U.2 form factor for enterprise-grade storage
  • PCIe NVMe interface for high throughput and low latency
  • Hot-swap capability enables minimal system downtime
  • Value Endurance design suitable for intensive operational cycles
  • Compatible with a wide range of Cisco UCS C-series servers
  • TAA-compliant for deployment in regulated environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-level storage performance through a high-speed PCIe NVMe interface
  • Seamless compatibility with multiple Cisco UCS servers ensures easy integration and scalability
  • Hot-swap functionality supports business continuity by reducing downtime during maintenance

Product Overview

The CISCO 8TB Intel P4510 SSD is a high-performance storage solution designed for enterprise environments. It features a 2.5-inch U.2 form factor with PCIe NVMe interface, supporting hot-swap capabilities to ensure minimal downtime. This SSD offers 8TB of storage and is engineered for compatibility across a wide range of Cisco UCS servers. Built on Intel's P4510 architecture, it provides a robust mix of speed, reliability, and value endurance, while also meeting TAA compliance requirements for regulated clients.

Specifications

Product Overview
Type Solid state drive - hot-swap
Device Type Solid state drive - hot-swap
Capacity 8 TB
Form Factor 2.5"
Interface U.2 PCIe (NVMe)
Features Value Endurance, High Performance
Hot-Swap Support Yes
Endurance Class Value Endurance
NAND Flash Type 3D TLC NAND
Use Case Enterprise storage, data center workloads

Physical & Environmental
Dimensions (W x D x H) 69.85 mm x 100.45 mm x 15 mm
Weight Approx. 150 grams
Operating Temperature 0ºC to 70ºC
Storage Temperature -55ºC to 95ºC
Operating Vibration 2.17 GRMS (5-700 Hz)
Non-Operating Vibration 3.13 GRMS (5-800 Hz)
Operating Shock 1000 G (0.5 ms)
Humidity Range (Operating) 5% to 95% (non-condensing)
Power Consumption (Active) Up to 16 W
Power Consumption (Idle) Less than 5 W

Cloud Management & Licensing
Management Platform Cisco Intersight (via UCS platform integration)

Interfaces
Interface Type PCI Express NVMe 3.1
Interface Connector U.2 (SFF-8639)
PCIe Lanes x4
Drive Interface Protocol NVMe 1.2
Data Transfer Rate Up to 3.2 GB/s (read), Up to 3.0 GB/s (write)
Sequential Read Speed Up to 3200 MB/s
Sequential Write Speed Up to 3000 MB/s
4KB Random Read IOPS Up to 637,000 IOPS
4KB Random Write IOPS Up to 139,000 IOPS
Latency (Read) Up to 10 µs
Latency (Write) Up to 18 µs

Compliance & Origin
Country of Origin CHINA / TAIWAN
TAA Compliant Yes
Compliance Standards RoHS, Halogen-Free, TAA
Certifications UL, CE, FCC, VCCI, BSMI, KCC

Advanced Security Features
Data Encryption AES 256-bit Self-Encrypting Drive (SED)
Secure Erase Yes (Crypto Erase supported)
End-to-End Data Protection Yes
Power Loss Protection Yes
