Cisco Aironet Yagi Antenna 2.4GHz 13.5dBi RP-TNC Mast Mount

VENDOR: CISCO Mfg Part#: AIR-ANT1949
1 3

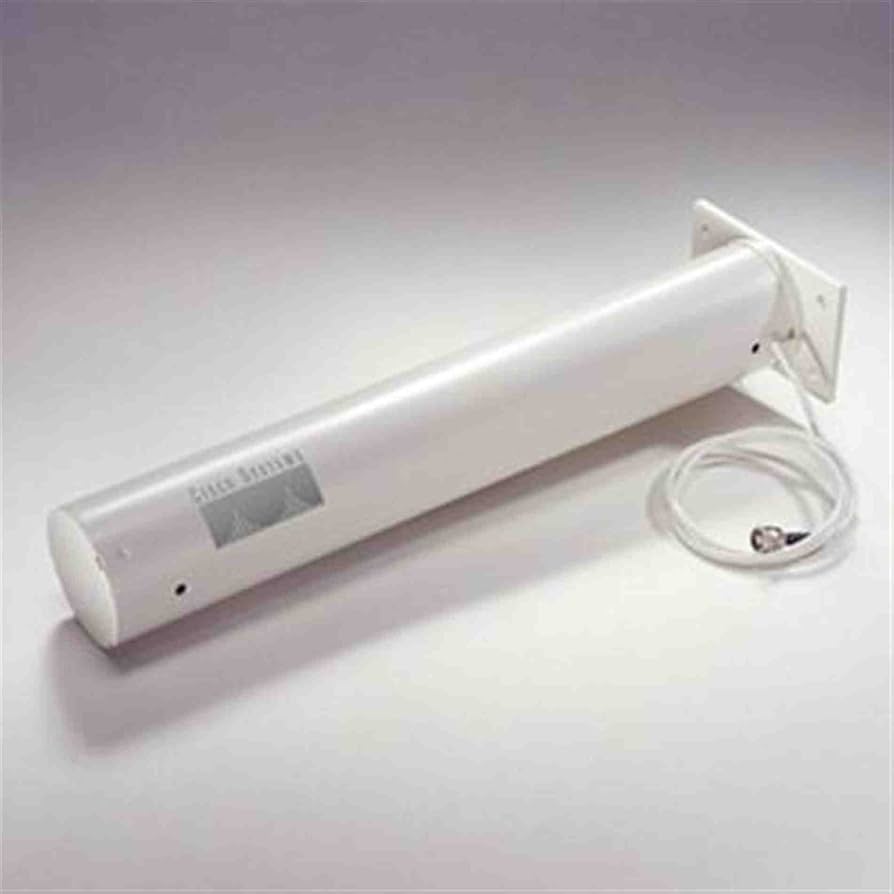

Photo is for illustration purposes only. Actual product may be different.
$354.00
$354.00
Sale Sold out
MSRP: $519.00
Shipping calculated at checkout.
  • 13.5 dBi gain directional Yagi antenna for focused signal strength
  • Operates in 2.40 GHz to 2.83 GHz frequency range (UHF)
  • RP-TNC connector compatible with Cisco Aironet 2.4 GHz bridges
  • Built to withstand outdoor environments with 110 MPH wind rating
  • Vertical polarization for signal clarity and range
  • TAA compliant and mast-mountable with 3" diameter, 18" height

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-gain directional performance enables long-range, point-to-point wireless connectivity between buildings.
  • Engineered for outdoor durability with a 110 MPH wind rating and robust mast-mount design.
  • Seamless integration with Cisco Aironet 2.4 GHz bridges via RP-TNC connector supports enterprise networking standards.

Product Overview

The Cisco Aironet Yagi Antenna (Model AIR-ANT1949) delivers directional 2.4 GHz wireless coverage with high 13.5 dBi gain, ideal for outdoor, point-to-point networking. With RP-TNC connectors, vertical polarization, and a Yagi-style design, this antenna ensures strong and efficient connectivity for enterprise and industrial applications. Built to withstand 110 MPH wind speeds and compatible with Cisco Aironet 2.4 GHz bridges, this compact yet powerful solution provides secure mast-mount deployment and meets TAA compliance standards, making it a reliable choice for robust wireless communication in demanding environments.

Specifications

Product Overview
Product Type Antenna
Product Line Aironet
Product Name Aironet Yagi Antenna
Product Model AIR-ANT1949
Manufacturer Cisco Systems, Inc
Brand Name Cisco
Form Factor Yagi
Application Outdoor midrange directional connections
Antenna Gain 13.5 dBi
Polarization Vertical
Maximum Antenna Range 18.3 km
Limited Warranty 1 Year
Power Requirements Passive (requires no power)

Wireless Features
Frequency 2.40 GHz to 2.83 GHz
Frequency Band Type UHF
Antenna Type Directional Yagi
Front-to-Back Ratio > 30 dB
Supported Wi-Fi Bands 2.4 GHz
Intended Deployment Point-to-Point Outdoor Wireless

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
RoHS Compliance Yes

Advanced Security Features
Security Features Not Applicable (Passive Antenna)

Interfaces
Connector Type RP-TNC
Cable Length 3 ft
Compatibility Cisco Aironet 2.4 GHz Bridge

Physical & Environmental
Weight (Approximate) 680.4 g
Diameter 3 in
Height 18 in
Width 3 in

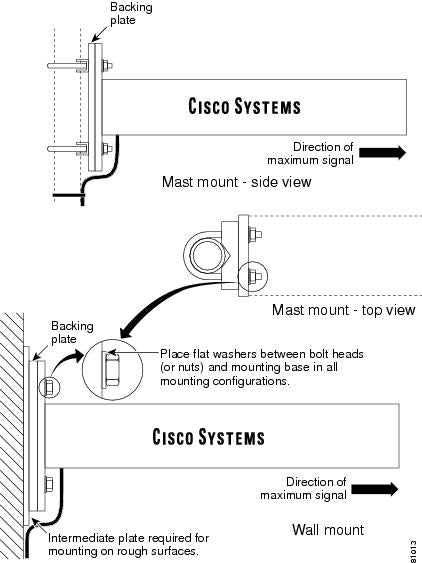

Installation Type Mast Mount
Wind Rating 110 MPH
Operating Temperature Range -40° to 80°C
Storage Temperature Range -40° to 85°C
Operating Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Cloud Management Not Applicable (Passive Antenna)
