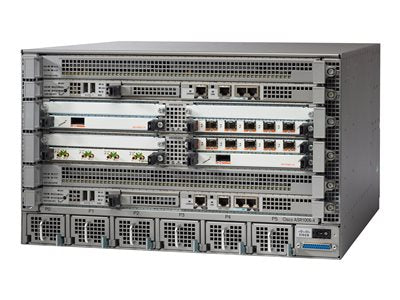

Cisco ASR1006-X Aggregation Services Router Chassis

VENDOR: CISCO Mfg Part#: ASR1006-X UPC#: 882658823008
  • CISCO ASR1006-X CHASSIS
1 1
Photo is for illustration purposes only. Actual product may be different.
$18,130.00
$18,130.00
Sale Sold out
MSRP: $26,590.00
Shipping calculated at checkout.
  • TAA compliant for regulated and government environments
  • Modular chassis design allows flexible network scaling
  • Manufactured in multiple countries including Brazil, China, Mexico, and the United States
  • Supports deployment in Cisco ASR 1000 Series systems

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprises and service providers needing scalable edge routing solutions
  • TAA compliance makes it suitable for U.S. government procurement and regulated sectors
  • Designed as part of the ASR 1000 Series for high performance and reliability

Product Overview

The Cisco ASR1006-X Aggregation Services Router Chassis provides a powerful, scalable solution for service providers and large enterprises seeking high-performance network edge routing. As part of the Cisco ASR 1000 Series, this chassis delivers increased throughput capacities tailored to evolving digital workloads, cloud connectivity, and secure WAN edge deployments.

The unit supports diverse Cisco network modules, enabling flexible configurations for provider edge or enterprise WAN applications. TAA compliance ensures its suitability for government and other regulated sectors, while manufacturing across multiple regions supports supply chain flexibility. Designed for high availability and modular growth, the ASR1006-X is an ideal choice for mission-critical networking infrastructure.

Specifications

Product Overview
Product Type Aggregation Services Router Chassis
Model ASR1006-X
Series Cisco ASR 1000 Series
Rack Units 6U
Form Factor Rack-mountable
Weight 47.2 lbs (21.4 kg)
Maximum System Throughput 200 Gbps
Redundant Power Yes
Power Supply Options AC or DC
Max Power Consumption 1300W (typical configuration)

Cloud Management & Licensing
Centralized Management Cisco DNA Center, Cisco Prime Infrastructure
Software Licensing Cisco Smart Licensing enabled
Licensing Model Subscription-based and perpetual options
Cloud Support Compatible with Cisco Cloud Services Router (CSR)

Physical & Environmental
Dimensions (H x W x D) 10.4 x 17.4 x 28.4 in (26.4 x 44.2 x 72.1 cm)
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -40° to 158°F (-40° to 70°C)
Operating Humidity 5% to 85% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Method Redundant fan trays

Interfaces
Route Processor Slots 2
Embedded Services Processor (ESP) Slots 2
Shared Port Adapter (SPA) Bays 6
Integrated Ethernet Ports 2 x 10/100/1000 RJ-45 (Management)
Console Port 1 x RJ-45
Auxiliary Port 1 x RJ-45
USB Ports 1 x USB Type-A 2.0
External Clock Input 1 x BNC

Advanced Security Features
Hardware-Based Encryption Yes (IPSec VPN supported)
Firewall Capabilities Integrated zone-based firewall (with software)
Intrusion Prevention Support Yes, via Cisco IOS XE security features
Content Filtering Supported via Cisco Umbrella or external solutions
Secure WAN Yes (supports DMVPN, FlexVPN)

Compliance & Origin
Country of Origin BRAZIL / CHINA / MEXICO / UNITED STATES
TAA Compliance Yes
RoHS Compliance Yes
Certifications FCC, UL/CSA, CE, IEC60950-1, EN55022 Class A
