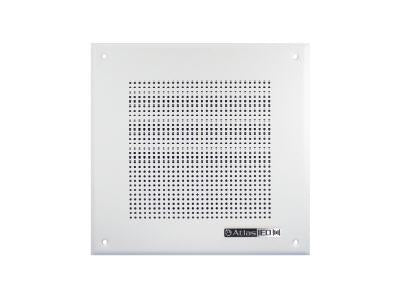

Cisco Atlas 8 In-Wall/In-Ceiling PoE+ IP Loudspeaker System

VENDOR: CISCO Mfg Part#: SP-ATLAS-IP-8SM=
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,669.00
$1,669.00
Sale Sold out
MSRP: $2,448.00
Shipping calculated at checkout.
  • 8" in-wall/in-ceiling speaker design fits 11.50" x 11.50" mounting profile
  • Supports Power over Ethernet Plus (PoE+) for combined power/data over Ethernet
  • 2.48-inch depth for low-profile or shallow wall/ceiling installations
  • Clean white enclosure suitable for modern commercial interiors
  • Includes integrated microphone for communication and paging needs
  • TAA-compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Simplified installation with PoE+ reduces wiring complexity and cost for businesses
  • TAA-compliance and U.S. manufacturing make it ideal for regulated and government environments
  • Discreet design allows integration into ceilings and walls without disrupting interior aesthetics

Product Overview

The Cisco Atlas 8 In-Wall/In-Ceiling PoE+ IP Loudspeaker System is a versatile audio solution engineered for discreet yet powerful sound delivery. Designed for conferencing, paging, and background audio systems, its in-wall or in-ceiling mount flexibility ensures aesthetic integration into professional environments such as classrooms, offices, and public buildings. With a square 11.50-inch profile and just 2.48 inches in depth, this system supports spaces where space conservation is key without compromising on audio coverage.

Power over Ethernet Plus (PoE+) capability significantly simplifies installation by enabling both power and data transmission over a single standard Ethernet cable. This eliminates the need for separate AC power lines and reduces infrastructure complexity, especially in larger deployments. The unit comes housed in a clean white enclosure that blends into most ceilings and walls, ideal for maintaining clean interior designs in commercial settings.

Built with commercial-grade durability, the loudspeaker also includes a microphone and complies with TAA standards, making it suitable for government and defense installations. Backed by a 1-year warranty and manufactured in the United States, the Cisco Atlas 8 Loudspeaker reflects Cisco's commitment to quality and integration-ready audio systems within enterprise AV ecosystems.

Specifications

Product Overview
Type In-Wall/In-Ceiling PoE+ IP Loudspeaker
Form Factor Flush mount (in-wall/in-ceiling)
Speaker System Type Speaker
Power Requirements IEEE 802.3at PoE+ (Power over Ethernet Plus)
Integrated Microphone Yes
Weight 4.1 lbs (1.86 kg)
Mounting Style In-wall or In-ceiling mount
Enclosure Color White
Included Accessories Mounting bracket, safety cable, hardware

Wireless Features
Wi-Fi Support

Compliance & Origin
TAA Compliance Yes
Country of Origin United States
Compliance Standards FCC Part 15 Class A, UL 60950-1, RoHS
Certifications TAA Compliant, CE, UL, RoHS

Advanced Security Features
Secure Communication Protocols HTTPS, SSH
802.1X Network Authentication Supported
MAC Address Filtering Supported
Firewall Built-in basic IP filters
TLS Support Yes

Interfaces
Network Interface Gigabit Ethernet (10/100/1000Base-T)
Connector Type RJ-45
Audio Input Type IP-based digital audio over Ethernet
Data Transmission Mode Unicast and multicast

Physical & Environmental
Width 11.50 Inch
Height 11.50 Inch
Depth 2.48 Inch
Cutout Dimensions 10.875 in x 10.875 in
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity (Operating) 10% to 95% non-condensing
Enclosure Material Metal backbox with flame-retardant plastic front
Cooling Passive

Cloud Management & Licensing
Management Interface Web browser-based GUI
Network Management SNMP v1/v2c/v3, DHCP, LLDP
License Requirement No license required for basic operation

Audio Performance
Frequency Response 75 Hz – 20 kHz
Coverage Pattern 100° x 100°
Maximum SPL 102 dB @ 1 meter
Driver Configuration 8" coaxial 2-way
