Cisco C9200L-24PXG-4X-E TAA-Compliant 24-Port PoE+ Switch

VENDOR: CISCO Mfg Part#: C9200L-24PXG-4XE++
1 2

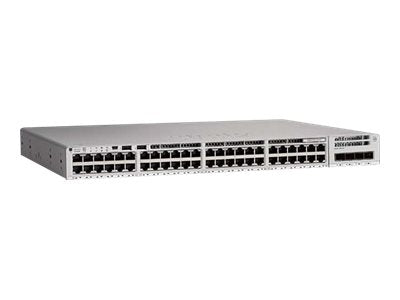

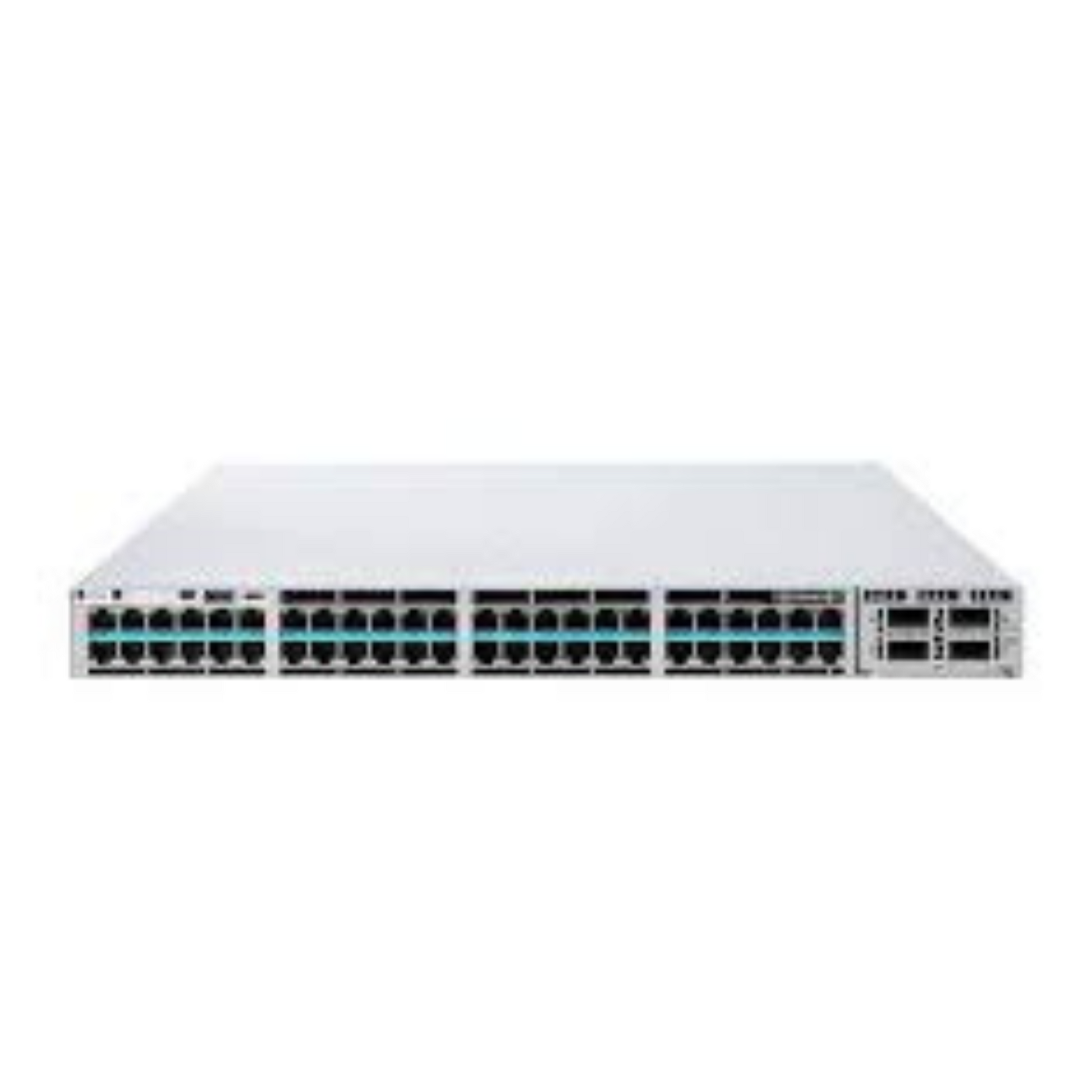

Photo is for illustration purposes only. Actual product may be different.
$7,324.00
$7,324.00
Sale Sold out
MSRP: $10,742.00
Shipping calculated at checkout.
  • 24-port configuration with 8 multigigabit (mGig) and 16 1G PoE+ ports
  • Four fixed 10G SFP+ uplink interfaces for high-speed backbone connections
  • Supports AES encryption and routing protocols including OSPFv3 and EIGRPv6
  • Managed via SNMP, Syslog, and DHCP with LED status indicators
  • Power over Ethernet Plus (PoE+) with 600W total power budget
  • Layer 2 and Layer 3 switching with 16,000-entry MAC address table

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports advanced Layer 3 features and AES encryption, making it ideal for secure enterprise and government deployments
  • High-capacity PoE+ and multigigabit support enable simplified deployments for modern networking devices like Wi-Fi 6 access points
  • Backed by Cisco’s Enhanced Limited Lifetime Warranty and an MTBF of over 379,000 hours for long-term network reliability

Product Overview

The Cisco C9200L-24PXG-4X-E switch is a TAA-compliant, enterprise-grade, Layer 2/3 fixed configuration device offering 24 PoE+ ports (8 mGig, 16 1G) and 4 fixed 10G uplinks. It supports advanced features such as AES encryption, OSPFv3, EIGRPv6, and SNMP/Syslog management for secure and scalable connectivity. With a power budget of 600W and a 1RU form factor, it meets high-throughput demands while maintaining compactness. Compliant with RoHS and built for durability, it offers an MTBF of 379,410 hours and is backed by Cisco's enhanced lifetime warranty, making it ideal for resilient enterprise networks.

Specifications

Product Overview
Product Type Managed Switch
Form Factor 1RU
Weight 5.44 Kg
Power Supply Type Internal AC Power Supply
Power Budget (PoE) 600 Watt
MAC Address Table Size 16000
Flash Memory 4 GB
Installed RAM 2 GB
MTBF 379410 hours
Connectivity Technology Wired
Switching Capacity 176 Gbps
Forwarding Rate 130.95 Mpps

Wireless Features

Compliance & Origin
RoHS Compliant Yes
Country of Origin Mexico
TAA Compliant Yes
Certifications FCC Class A, UL, cUL, CE, VCCI

Advanced Security Features
Encryption Algorithm AES
Routing Protocols Supported OSPFv3, EIGRPv6, IPv4, IPv6
Security Features Port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
Access Control 802.1x authentication, ACLs
DoS Prevention Yes

Interfaces
Total Number of Ports 24
Port Configuration 8x mGig PoE+ ports, 16x 1G PoE+ ports
Uplink Ports 4x 10G SFP+
Port Types RJ-45 and SFP+
Data Transfer Rate 10 Gbps
Jumbo Frame Support 9198 bytes
Media Access Control CSMA/CD
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Physical & Environmental
Width 17.5 Inch
Depth 13.8 Inch
Height 1.73 Inch
Minimum Operating Temperature -5 °C
Maximum Operating Temperature 45 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C
Operating Humidity Range 5% to 90% non-condensing
Acoustic Noise 43 dB
Heat Dissipation 273.37 BTU/hr
Voltage Required 100 to 240 VAC, 50 to 60 Hz

Cloud Management & Licensing
Management Interfaces Web UI, CLI, SNMP v1/v2c/v3, Syslog
Layer Support Layer 2 and Layer 3
Management Features DHCP, VLAN, RMON, SPAN, Auto-MDIX
Supported Standards 802.1Q, 802.1p, 802.1x, 802.1w, 802.1s
Warranty Cisco Enhanced Limited Lifetime Warranty
