| Product Type | Layer 3 Managed Switch |
| Model | Cisco Catalyst 9300 C9300-24UB-A |
| Form Factor | Rack-mountable 1U |
| Switching Capacity | 208 Gbps |
| Forwarding Rate | 154.76 Mpps |
| Forwarding Rate (Stacked) | 511.9 Mpps |
| Stacking Bandwidth | 688 Gbps |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| MTBF | 354,300 hours |
| Packet Buffer Size | 32 MB |
| Power Supply | Internal - hot-plug |
| Power Provided | 1100 W |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Redundant Power Option | Yes |
| PoE Capability | UPOE |
| PoE Power Budget | 830 W |

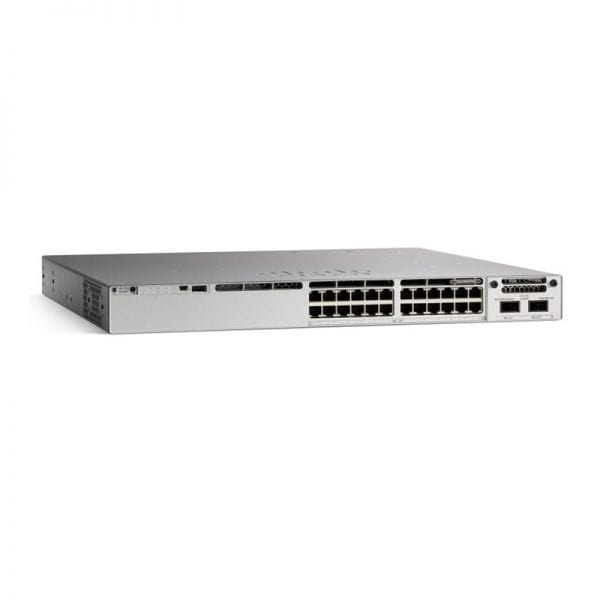

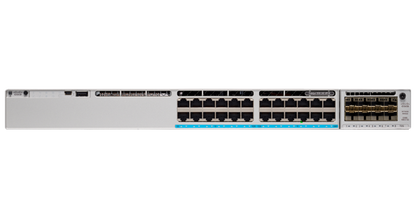

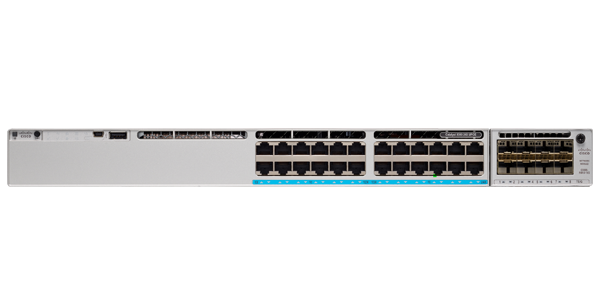

Cisco C9300-24UB-A Catalyst 9300 24-Port UPOE Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$8,275.00
Regular price
Sale price
$8,275.00
Unit price
per
MSRP: $12,137.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 x 10/100/1000 (UPOE) ports with 830W total PoE budget
- Switching capacity: 208 Gbps; stacking bandwidth: 688 Gbps
- Layer 3 routing support with protocols like OSPF, BGP, EIGRP, RIP
- Advanced security with MACsec support and policy-based routing
- Remote management via SNMP v3, NETCONF, RESTCONF, and CLI tools

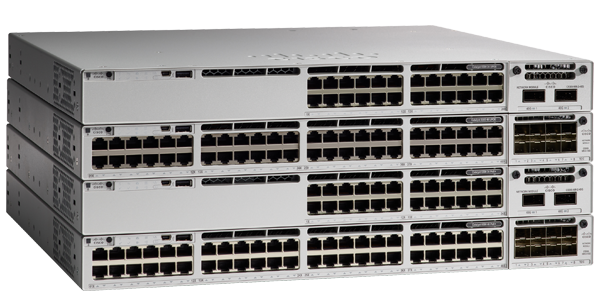

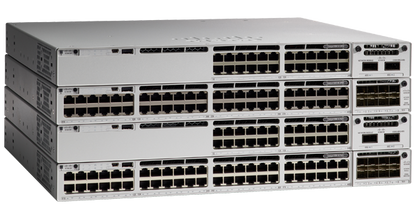

- StackWise-480 and StackPower support for high availability and scalability
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports high PoE power applications with 830W UPOE, ideal for powering IP phones, cameras, and access points
- Advanced Layer 3 feature set and routing scalability accommodate complex enterprise network topologies
- Future-ready with support for Cisco StackWise and redundant power options, ensuring uptime and easy expansion
Product Overview
The Cisco C9300-24UB-A is a high-performance Layer 3 switch built for enterprise networks, delivering 24 UPOE ports with an 830W power budget. It provides 208 Gbps switching capacity and exceptional stack scalability using StackWise-480 for up to 688 Gbps stacking bandwidth. Security and protocol options are comprehensive, including MACsec encryption, advanced QoS, and routing protocol support for OSPF, BGP, EIGRP, and others. With SNMP v3, RESTCONF, and integrated Wireshark, it ensures precise diagnostics and remote manageability. Built with 8 GB RAM, 16 GB flash memory, and a hot-plug capable internal power supply, it offers dependable and scalable performance with a 354,300-hour MTBF.
Specifications
Product Overview
Cloud Management & Licensing
| Remote Management Protocols | SNMP v1/v2c/v3, RMON 1/2, CLI, NETCONF, RESTCONF |
| Diagnostics | Integrated Wireshark |
| System Requirements | Cisco IOS Universal |
| Management Features | Cisco StackWise-480, Cisco StackPower, ITS Integration, IPAM Integration |
| License Type | Network Advantage |
Routing & Switching Capabilities
| Routing Protocols Supported | OSPF, IS-IS, RIP-1/2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM/SSM, MSDP, PBR, RIPng, OSPFv3 |
| IPv4 Routing Table Entries | 64,000 |
| IPv6 Routing Table Entries | 32,000 |
| Multicast Routes | 16,000 |
| QoS Entries | 18,000 |
| Flow Entries (FNF) | 128,000 |
| SVIs (Switched Virtual Interfaces) | 1000 |
| Routed Ports | 448 |
Compliance & Origin
| Country of Origin | CHINA / UNITED STATES |
| TAA Compliant | Yes |
| Certifications | UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 Class A, RoHS, VCCI Class A, BSMI Class A, ICE-003 Class A, EN55024, CE Mark, EN 300 386 |
Interfaces
| Port Count | 24 x 10/100/1000 UPOE RJ-45 |
| Interface Type | Gigabit Ethernet |
| Expansion Slots | 1 (total) / 1 (free) |
| Additional Ports | 1 x USB 2.0 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9198 bytes |
Advanced Security Features
| Encryption Algorithm | 128-bit AES |
| Authentication Protocols | 802.1X, MACsec |
| Access Control | SGT caching, SGACL, ACL support |
| Security Features | CoPP, Private VLAN, Trusted Relay, DHCP Snooping |
Physical & Environmental
| Dimensions (W x D x H) | 17.5 in x 16.1 in x 1.7 in |
| Weight | 16.62 lbs |
| Minimum Operating Temperature | 23°F (-5°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Operating Humidity Range | 5% – 90% (non-condensing) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Storage Humidity Range | 5% – 90% (non-condensing) |
