Cisco Catalyst 4500 1300W AC Power Supply PWR-C45-1300ACV=

VENDOR: CISCO Mfg Part#: PWR-C45-1300ACV=
1 3

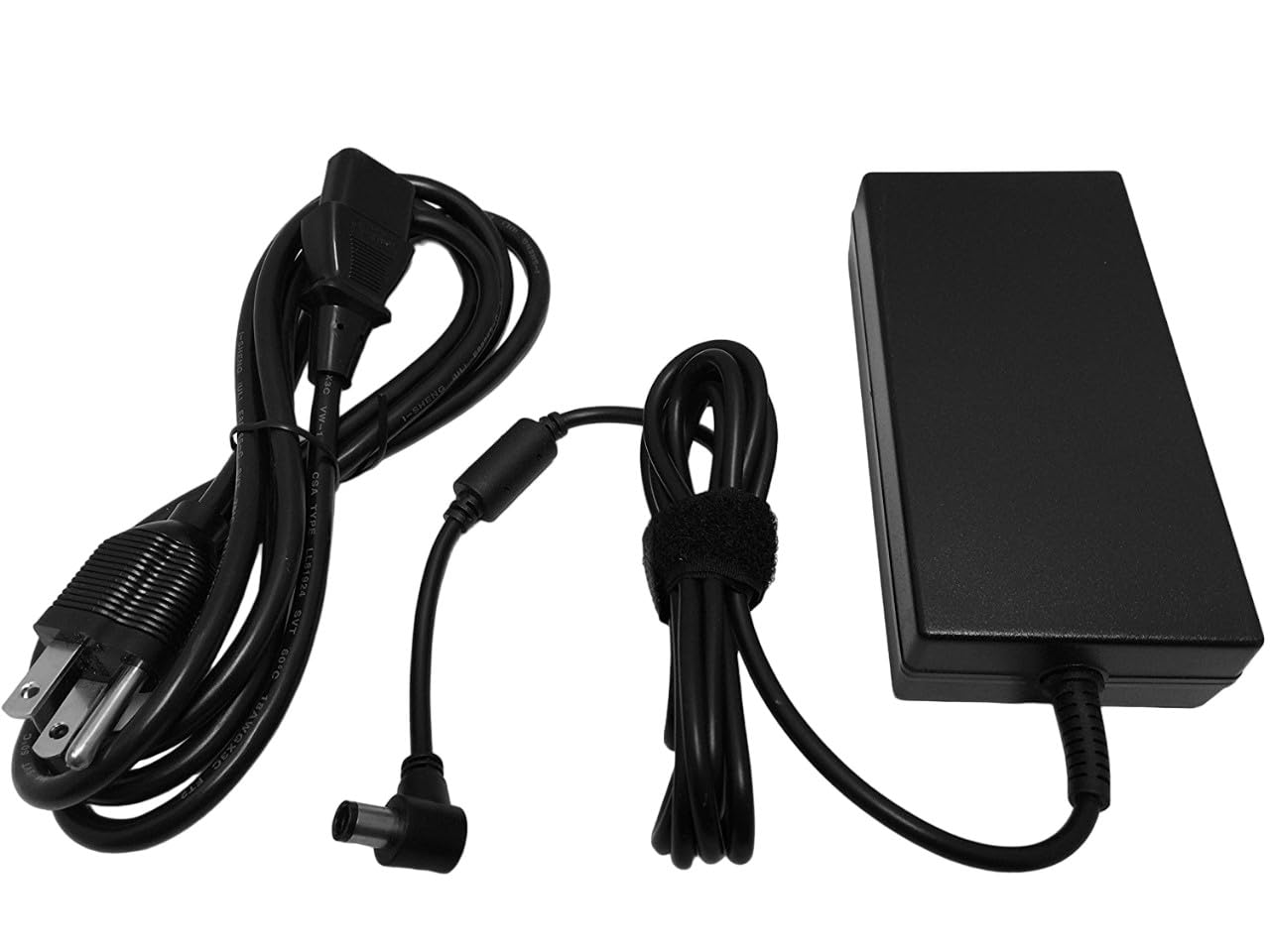

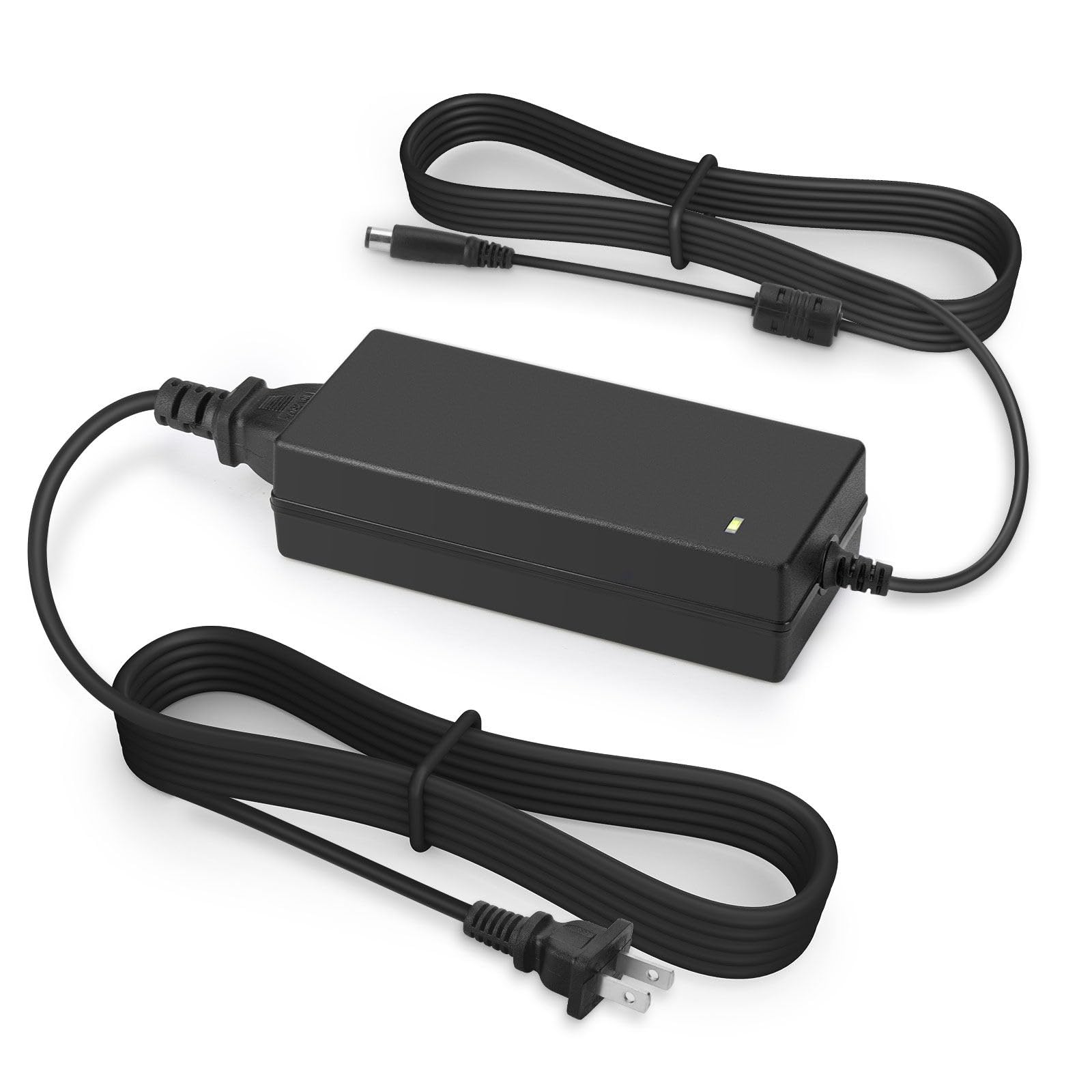

Photo is for illustration purposes only. Actual product may be different.
$1,420.00
$1,420.00
Sale Sold out
MSRP: $2,082.00
Shipping calculated at checkout.
  • 1300W output capacity with 48V output voltage
  • Supports up to 211 Cisco IP phones with integrated PoE up to 800W
  • Redundant and combined mode power options: up to 2166W (data), 1333W (PoE)
  • Hot-swappable design for uninterrupted service
  • Extensive safety and EMC certifications including UL 60950, EN 60950, FCC Part 15 Class A
  • SNMP MIB support for enhanced manageability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed specifically for Cisco Catalyst 4500 series, ensuring full compatibility and optimized performance.
  • High power output with PoE integration supports large IP phone deployments without additional infrastructure.
  • Hot-swappable and SNMP-manageable setup facilitates minimal downtime and simplified network management.

Product Overview

The Cisco PWR-C45-1300ACV= is a 1300W high-efficiency AC power supply built for the Catalyst 4500 series. It delivers inline power up to 800W per unit and outputs 2166W in combined mode for both data and PoE demands. With PoE support for up to 211 Cisco IP phones, redundant operation, and 48V output, it’s tailored for enterprise deployment. The unit supports hot swapping, has SNMP MIB integration, and complies with global EMC and safety standards including UL, FCC, EN60950, and NEBS Level 3. With TAA compliance and compatibility across Cisco IOS and CatOS platforms, this power supply is ideal for mission-critical networks requiring uptime, manageability, and scalability.

Specifications

Product Overview
Product Type Proprietary Power Supply
Brand Name Cisco
Manufacturer Cisco Systems, Inc
Product Name AC Power Supply
Manufacturer Part Number PWR-C45-1300ACV=
Family Power Equipment
Form Factor Plug-in module
Power Supply Type AC Power Supply with inline power support
Redundant Supply Supported
Hot Swappable Power Supply Yes
Power Output (Nominal) 1300W
Output Power Redundant Mode (Data) 1000W + 40W
Output Power Redundant Mode (In-line power) 800W max. per power supply
Output Power Combined Mode (Data) 2166W
Output Power Combined Mode (In-line power) 1333W max
Heat Dissipation 1568 BTU/hr
KVA Rating (Maximum) 1.76 KVA
Cisco Phones Supported 211

Physical & Environmental
Dimensions (Height x Width x Depth) 3.45 x 4.5 x 13.9 inches
Weight 7.5 lbs (3.4 kg)
Operating Temperature Range 0°C to 50°C (32°F to 122°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
Minimum IOS Software Requirement Cisco IOS Version 12.1(12c)EW
Minimum CatOS Requirement Cisco CatOS Version 7.4(1)

Compatibility
Compatible Models Cisco Catalyst 4503, Cisco Catalyst 4506, Cisco Catalyst 4507R

Interfaces
SNMP MIB Support Yes
Status Indicators Good, Fail

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 60950, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, VCCI Class A, FCC Part 15 Class A, NEBS Level 3
EMC Standards CISPR22 Class A, EN55022 Class A, EN 55024, EN 61000-6-1, ETS 300 386

Power Requirements
Input Voltage Range 100 V AC to 200 V AC
Input Voltage 200 V AC
Input Voltage Type AC
Output Voltage 48 V DC
