Cisco Catalyst 9105AXW Wi-Fi 6 Wallplate Access Point

VENDOR: CISCO Mfg Part#: C9105AXW-B-EDU
1 3

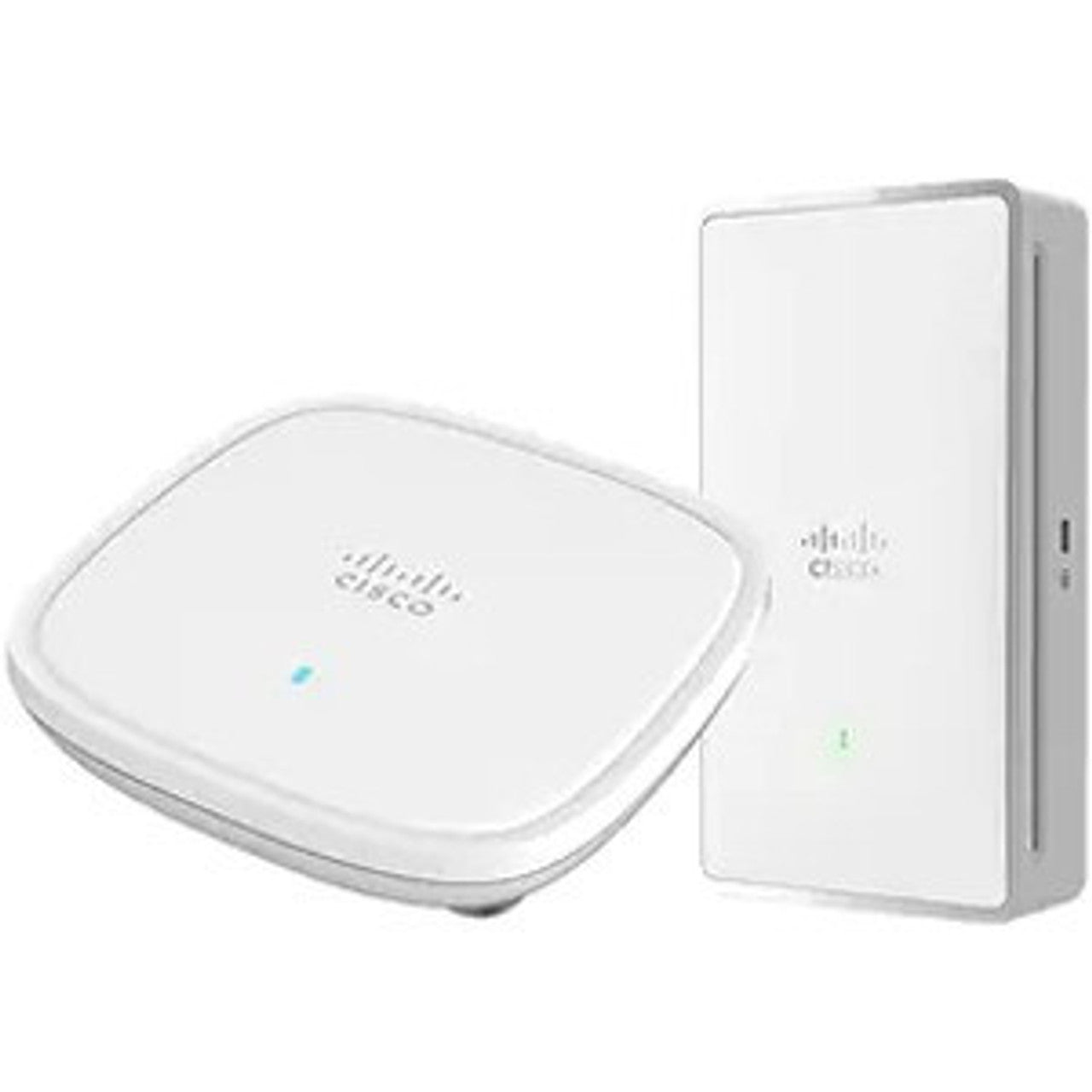

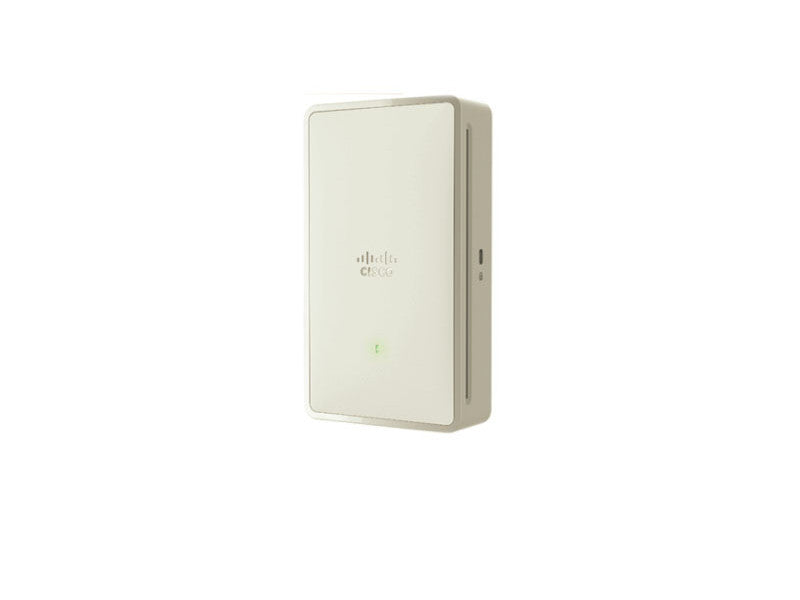

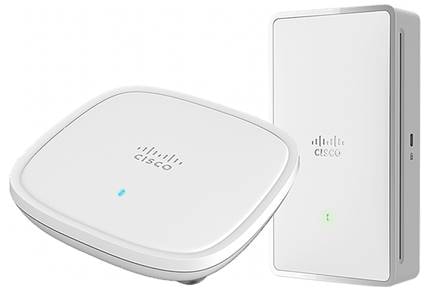

Photo is for illustration purposes only. Actual product may be different.
$680.00
$680.00
Sale Sold out
MSRP: $997.00
Shipping calculated at checkout.
  • Supports Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO and OFDMA
  • Dual-band operation: 2.4 GHz and 5 GHz with internal omni-directional antenna
  • Multiple Gigabit Ethernet ports including 1 x 2.5GBase-T and 3 x 1GBase-T
  • PoE support (802.3af and 802.3at) for simplified installation
  • Robust security: WPA3, Cisco Trust Anchor, secure boot, advanced EAP methods
  • Wall-mountable compact design with included low profile bracket

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Provides high-performance Wi-Fi 6 connectivity with 2x2 MU-MIMO and OFDMA—ideal for modern high-density environments.
  • Reduces total deployment cost with Power over Ethernet (PoE) and academic pricing.
  • Delivers enterprise-grade security with support for WPA3, Cisco Trust features, and secure boot mechanisms.

Product Overview

The Cisco Catalyst 9105AXW is a powerful, indoor wireless access point tailored for high-density settings such as classrooms, dormitories, and hospitality venues. Featuring dual-band 2.4 GHz and 5 GHz operation with support for Wi-Fi 6 (802.11ax), the device leverages 2x2 MU-MIMO and OFDMA to deliver improved spectral efficiency, reduced latency, and higher throughput. Internal omni-directional antennas and radio features like beamforming, DFS, and BSS Coloring ensure reliable coverage.

Easy to deploy in a discreet wall-mountable form factor, the 9105AXW supports PoE (802.3af/at), reducing cable complexity. It includes multiple Gigabit RJ-45 ports and USB 2.0 for flexible connectivity. Comprehensive cybersecurity support including secure boot, WPA3, and Cisco Trust Anchor promotes a secure network infrastructure. It also comes with an academic pricing model and installation hardware.

Backed by a limited lifetime warranty and CAPWAP software, this access point is a cost-efficient, scalable wireless infrastructure solution ideal for demanding institutional environments.

Specifications

Product Overview
Product Type Wireless access point
Model Cisco Catalyst 9105AXW
Form Factor Wall mountable - indoor
Power over Ethernet (PoE) Support Yes (802.3af/at)
Power Input Via PoE
Software Included CAPWAP Software Image
Weight 13.16 oz
Included Accessories Low profile bracket
Pricing Type Academic
Ruggedized Design Indoor

Wireless Features
Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
MU-MIMO 2x2 MU-MIMO
Bluetooth Version Bluetooth 5.0 Low Energy (LE)
Radio Band 2.4 GHz, 5 GHz
Beamforming Yes
Antennas Internal
Antenna Type Omni-directional
BSS Coloring Yes
DFS (Dynamic Frequency Selection) Yes
TWT (Target Wake Time) Yes

Compliance & Origin
Country of Origin China / Mexico
TAA Compliant Yes
Certifications Wi-Fi CERTIFIED 6, UL 60950-1, EN 60950-1, IEC 60950-1, EN 62368-1, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, FCC CFR47 Part 15, VCCI-CISPR 32:2016, ICES-003, CISPR 32, CISPR 24, RSS-247, KN32, KN35, RSP-100, SRRC, ARPANSA, QCVN, CNS, etc.

Advanced Security Features
Encryption Algorithms AES, TLS, PEAP, TTLS, WPA2, WPA3, EAP-FAST, EAP-TLS, EAP-TTLS
Authentication Methods MS-CHAP v2, EAP, EAP-FAST, EAP-SIM
Secure Boot Yes
Cisco Trust Anchor Module Yes
Secure Image Signing Yes

Interfaces
Ethernet Ports 4 x RJ-45 (3 x 1000Base-T, 1 x 1/2.5GBase-T)
Management Port 1 x RJ-45
USB Ports 1 x USB 2.0 Type A
Interface Type RJ-45, USB 2.0
Connectivity Technology Wireless and Wired
Line Coding Format OFDMA
Spread Spectrum Method OFDMA

Physical & Environmental
Width 6.3 in
Depth 3.5 in
Height 1.3 in
Operating Temperature Range 32 °F to 122 °F
Operating Humidity Range 10 - 90% (non-condensing)
Status Indicators Status LED

Cloud Management & Licensing
Management Interface Cisco Catalyst Center, cloud-managed options available
Software Licensing Available via Cisco DNA licensing models (subscription required)
