Cisco Catalyst 9200 24-Port Managed PoE+ Switch, TAA Compliant

VENDOR: CISCO Mfg Part#: C9200-24PXG-E++
1 1

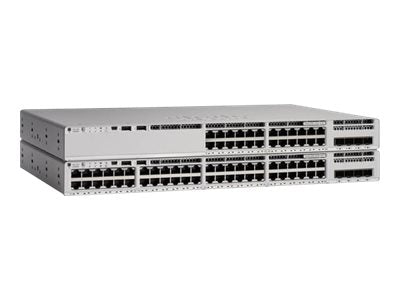

Photo is for illustration purposes only. Actual product may be different.
$6,106.00
$6,106.00
Sale Sold out
MSRP: $8,956.00
Shipping calculated at checkout.
  • 24 managed ports including 8 x MultiGig (100 Mbps to 10 Gbps) and 16 x PoE+ (10/100/1000)
  • 370W PoE+ budget supporting power delivery to connected devices
  • Layer 3 support with extensive routing protocols: OSPF, RIP, EIGRP, BGP, IPv6
  • High-performance switching: 272 Gbps capacity, 214.28 Mpps forwarding rate
  • AES 128-bit encryption and MACsec for secure traffic handling
  • Supports QoS, VLANs (up to 1024), and Cisco StackWise-80 for modularity and scalability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance makes this switch suitable for U.S. government and federal deployments
  • Dual-purpose MultiGig and PoE+ ports support next-gen Wi-Fi, VoIP, and IoT applications
  • Cisco enterprise-grade features like MACsec, StackWise-80, and policy-based routing offer long-term ROI and scalable infrastructure

Product Overview

The Cisco Catalyst 9200 24-Port Managed Switch (Model: C9200-24PXG-E++) offers TAA-compliant, enterprise-grade network infrastructure capabilities. This switch delivers 24 managed ports, including 8 MultiGig uplinks and 16 PoE+ ports, a 370W PoE budget, and Layer 3 routing features such as OSPF, EIGRP, RIPng, and more. With stacking bandwidth of 80 Gbps and switching capacity of up to 352 Gbps, it is designed for scalable deployments. Enhanced through policy-based management and AES encryption, this solution integrates advanced technologies like MACsec, VXLAN, and Cisco StackWise-80. With a MTBF of 379,410 hours, and lifetime limited hardware warranty, the switch delivers secure, reliable data distribution for evolving enterprise networks.

Specifications

Product Overview
Type Managed Layer 3 Stackable Switch
Form Factor Rack-mountable
Weight 11.99 lbs
Power Requirements AC 100-240 V (50 - 60 Hz)
Power Device Internal power supply - hot-plug
Power Redundancy Optional
Max Supported Power Supplies 2
PoE Budget 370 W
MTBF 379,410 hours
RAM 2 GB
Flash Memory 4 GB
Manufacturer Warranty Limited lifetime warranty

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
Compliance Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz
Safety & EMC Certifications CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Advanced Security Features
Supported Encryption 128-bit AES
Security Features MACsec, CoPP, FHS, PVLAN, SGT caching, Policy-Based Routing (PBR), MSTP
Supported Routing Protocols OSPF, RIP, EIGRP, IS-IS, VRRP, HSRP, PIM-SM, PIM-SSM, MSDP, OSPFv3, RIPng
Access Control Lists ACL scale entries: 1500

Interfaces
Total Number of Ports 24
Port Types 8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+)
PoE Support PoE+
Stacking Bandwidth 80 Gbps
Switching Capacity (Standalone) 272 Gbps
Switching Capacity (With Stacking) 352 Gbps
Forwarding Rate 214.28 Mpps
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Interfaces 8 x 100/1000/2.5G/5G/10GBase-T RJ-45, 16 x 1000Base-T RJ-45 PoE+, 1 x management RJ-45, 1 x console RJ-45, 1 x network stack device
Expansion Slots 1 (total) / 1 (free) x expansion slot

Physical & Environmental
Width 17.5 in
Depth 1.7 in
Height 13.8 in
Operating Temperature Range 23 °F to 113 °F
Storage Temperature Range -40 °F to 158 °F
Operating Humidity 5 - 90% (non-condensing)
Storage Humidity 5 - 90% (non-condensing)

Cloud Management & Licensing
Management Interface CLI, SNMP 1/2c/3, RMON 1/2, NETCONF, RESTCONF, YANG
Remote Management Protocols SNMP, IPv4, IPv6
Included License Network Essentials
