Cisco Catalyst 9200 48-Port PoE+ Switch, Enhanced VRF (C9200-48PB-A)

VENDOR: CISCO Mfg Part#: C9200-48PB-A UPC#: 889728255622
  • CATALYST 9200 48-PORT POE+, ENHANCED VRF
1 1

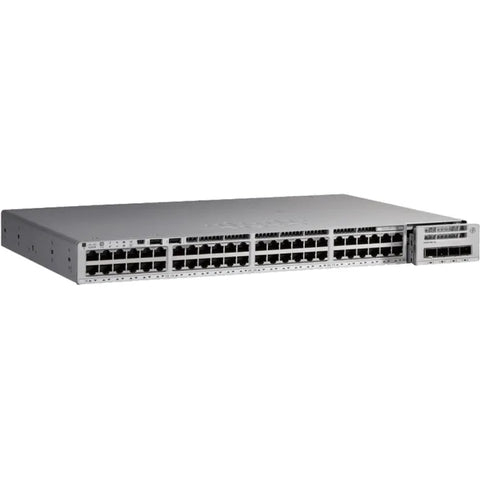

Photo is for illustration purposes only. Actual product may be different.
$12,069.00
$12,069.00
Sale Sold out
MSRP: $17,701.00
Shipping calculated at checkout.
  • 48 x 10/100/1000 RJ-45 ports with PoE+ (30W)
  • StackWise-160 technology with 160 Gbps stacking throughput
  • Advanced Layer 3 support with up to 4,000 IPv4 and 2,000 IPv6 routing entries
  • High forwarding rate of 261.9 Mpps and switching bandwidth of 176 Gbps
  • Includes 4 GB RAM, 4 GB flash, MACsec encryption, and network management via SNMP, CLI, RESTCONF
  • Supports up to 32 virtual networks and 16,000 Flexible NetFlow entries

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enterprise-level switching with enhanced security via MACsec and policy-based routing
  • High port density with PoE+ and scalable stacking makes it ideal for large and growing network infrastructures
  • Cisco Network Advantage software and robust protocol support ensure long-term compatibility and manageability

Product Overview

The Cisco Catalyst 9200 (C9200-48PB-A) is a high-performance 48-port PoE+ switch designed for enterprise-grade Layer 3 networking environments. Supporting scalable stackable architecture with Cisco StackWise-160, it offers a stacking bandwidth of up to 160 Gbps and a forwarding rate of 261.9 Mpps. With switching bandwidth at 176 Gbps and PoE+ support across all 48 10/100/1000 ports, it is ideal for high-density network setups requiring both power and performance.

Ideal for handling complex routing tasks, the switch includes support for extensive Layer 3 protocols such as OSPF, EIGRP, BGP, and more. It accommodates up to 4,000 IPv4 and 2,000 IPv6 routing entries, 32 virtual networks, and 16,000 NetFlow entries, ensuring efficient traffic flow and visibility. Additional features include MACsec security, Energy Efficient Ethernet, and jumbo frame support up to 9198 bytes.

Backend support includes 4 GB RAM, 4 GB flash storage, an internal hot-pluggable PSU, and optional power redundancy. With a MTBF of 384,980 hours and broad standards compliance, the C9200-48PB-A suits demanding environments. It includes Cisco's Network Advantage software and a limited lifetime warranty, delivering long-term value for critical operations.

Specifications

Product Overview
Product Type Layer 3 Stackable Managed Switch
Form Factor Rack-mountable
Height 1.7 in
Width 17.5 in
Depth 13.8 in
Weight 12.13 lbs
Power Requirements AC 100-240 V (50 - 60 Hz)
Power Supply Internal hot-pluggable PSU
Power Redundancy Optional
MTBF 384,980 hours
RAM 4 GB
Flash Memory 4 GB
Software Included Cisco Network Advantage
Built-in Devices RFID tag
Service & Support Limited warranty - advance parts replacement - lifetime - response time: next business day

Cloud Management & Licensing
Management Interface SNMP 1/2c/3, RMON 1/2, CLI, NETCONF, RESTCONF
Software Licensing Cisco Network Advantage license included
Cisco DNA Support Yes

Physical & Environmental
Operating Humidity Range 5 - 90% (non-condensing)
Storage Humidity Range 5 - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F

Interfaces
Network Ports 48 x 10/100/1000 (PoE+)
PoE Standard PoE+
PoE Power Per Port 30 W
Stacking Ports 1 x network stack device
Management Ports 1 x RJ-45 (Management LAN)
Console Ports 1 x RJ-45 (Console)
Expansion Slots 1 (total) / 1 (free)
Stacking Bandwidth 160 Gbps
Switching Bandwidth 176 Gbps
Forwarding Rate 261.9 Mpps
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Packet Buffer Size 6 MB

Advanced Security Features
MACsec Encryption Yes
Encryption Algorithm 128-bit AES
Access Control Lists 1600 entries
Private VLAN Support Yes
TrustSec SGT Caching Yes
Policy-Based Routing Supported
Control Plane Policing (CoPP) Yes
Flexible NetFlow Entries 16000

Compliance & Origin
Compliant Standards IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3at, 802.3bz
Additional Compliance EN 60950-1, UL 60950-1, RoHS, CISPR 22/24/32/35, EN 300 386, VCCI Class A, ICES-003 Class A, BSMI Class A, TAA Compliant
TAA Compliance Yes
Country of Origin China / Mexico / Malaysia
