| Model | C9200CX-12T-2X2G-E |
| MTBF | 960180 hours |
| Network Device Type | Switch |
| Form Factor | 1U |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Status Indicators | LED indicators |
| RAM / Total Installed Size | 4 GB |
| Flash Memory / Installed Size | 8 GB |
| Networking Compliant Standards | IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3bt |
| Power / Device Type | Power Supply |
| Media Layer Supported | Layer 2 and Layer 3 |
| Uplink Port | 2x 1G copper, 1x 1G CU PD 802.3bt Class 6, 2x 10G SFP+ fixed uplinks |
| Power / Provided (W) | 80 Watt |
| Power / Voltage Required | 100 to 240 VAC, 50 to 60 Hz |
| Features | Plug and Play (PnP) enabled; Cisco IOS XE; ASIC with programmable pipeline and micro-engine capabilities |
Cisco Catalyst 9200CX 12-Port 1G Switch, 2x10G SFP+, Essentials

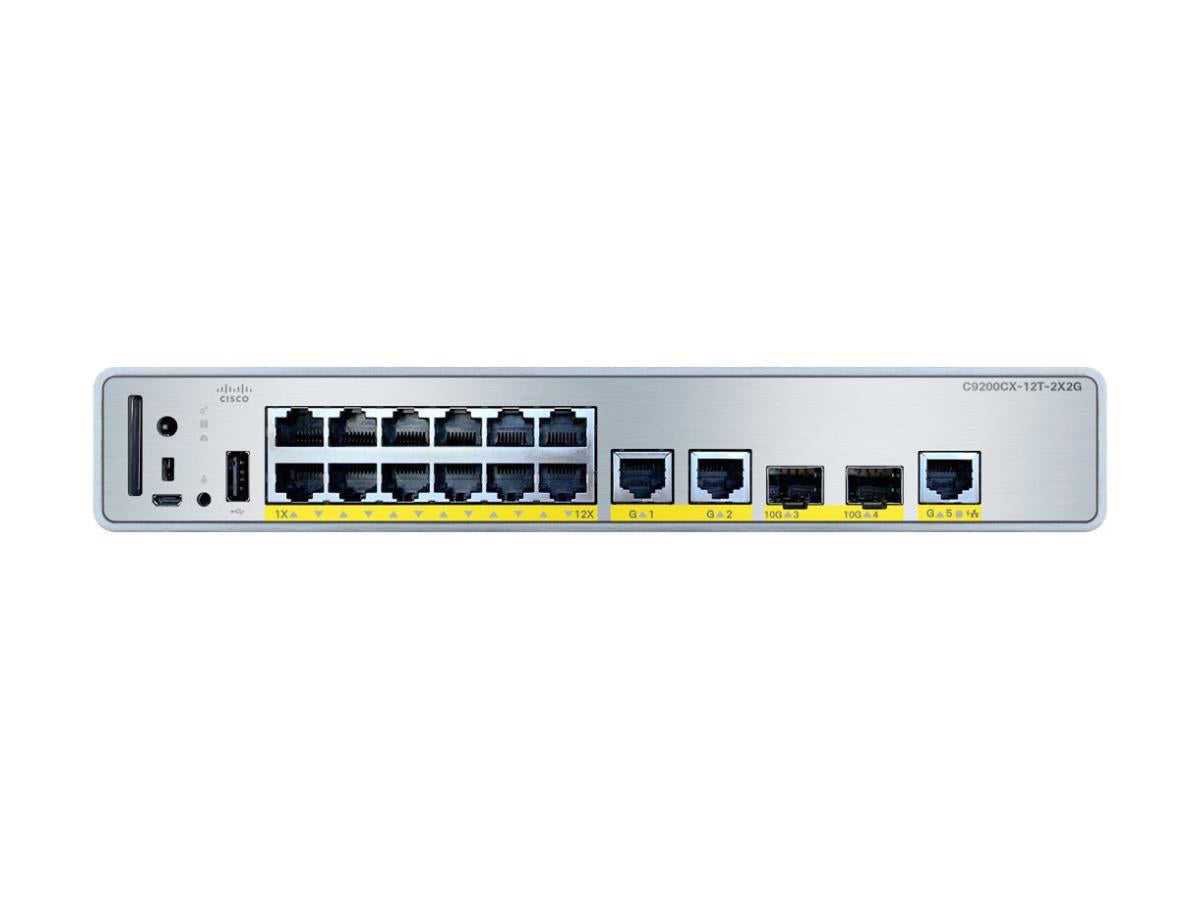

Photo is for illustration purposes only. Actual product may be different.
Regular price
$2,960.00
Regular price
Sale price
$2,960.00
Unit price
per
MSRP: $3,718.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 12-port 1G Ethernet with 2x10G SFP+ and 3x1G uplinks
- Layer 2 and Layer 3 support with IPv4/IPv6, RIPv1/v2, OSPFv3
- 4GB RAM and 8GB flash memory for fast, reliable performance
- Supports jumbo frames up to 9198 bytes and MAC table size of 32,000
- Remote management via SNMP, Syslog, and DHCP
- Compact 1U design with 80W power and wide operating temperature range
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for space-constrained environments with its compact 1U form factor and robust feature set
- Plug and Play enabled and Cisco IOS XE support make it easy to deploy and manage
- Enterprise-grade durability with 960,180-hour MTBF and limited lifetime warranty ensures long-term viability
Product Overview
The Cisco Catalyst 9200CX C9200CX-12T-2X2G-E is a high-performance compact Layer 2 and 3 switch engineered for secure enterprise networking. This 12-port Gigabit Ethernet switch includes two fixed 10G SFP+ uplink ports and three additional 1G copper uplinks, offering flexible connectivity for diverse deployments. Powered by Cisco IOS XE and enhanced with AES encryption, it maintains performance and security in space-constrained environments.
The switch supports a data throughput of 10 Gbps, features 4GB RAM and 8GB flash memory, and enables jumbo frames up to 9198 bytes. With up to 960,180 hours MTBF and a limited lifetime warranty, it is built for long-term dependability. It supports SNMP, Syslog, and DHCP for remote management and is compliant with key standards like IEEE 802.1x and 802.3bt. Operating in environments from -5°C to 45°C, the unit draws 80W and is TAA-compliant, making it suitable for government and enterprise use.
With rich routing protocol support including IPv4, IPv6, RIPv1/v2, and OSPFv3, this compact switch is an excellent fit for robust branch deployments requiring accelerated provisioning with Plug and Play (PnP) enablement. LED indicators and compact 1U chassis further enhance usability and space efficiency.
Specifications
Primary Information
UNSPSC Code
| UNSPSC Code | 43222612 |
Interfaces / Ports
| Interfaces | 12-port 1G, 2x10G and 3x1G, mini USB, USB |
| SFP+ Ports | 2 |
Service&Support
| Service & Support Type | Limited Lifetime Warranty |
Special Feature
| COO | MEXICO |
| TAA compliance | Yes |
| Min Operating Temperature | -5 celsius |
| Min Storage Temperature | -40 celsius |
| Max Storage Temperature | 70 celsius |
| Max Operating Temperature | 45 celsius (1500m); 40 celsius (3000m) |
Network
| Power Over Ethernet (PoE) Support | NONE |
| PoE Power Consumption | NONE |
| MAC Address Table Size | 32000 |
| Jumbo Frame Support | 9198 bytes |
| Remote Management Protocol | DHCP; Syslog; SNMP |
| Routing Protocol | IPv4, IPv6, RIPv1, RIPv2,OSPFv3 |
| Encryption Algorithm | AES |
| SFP+ Ports | 2 |
| Interfaces | 12-port 1G, 2x10G and 3x1G, mini USB, USB |
Dimensions&Miscellaneous
| Width | 10.6 Inch |
| Depth | 6.5 Inch |
| Height | 1.73 Inch |
| Weight | 4 lbs. |
