Products Network Stuff Cisco Catalyst 9300 48-Port...

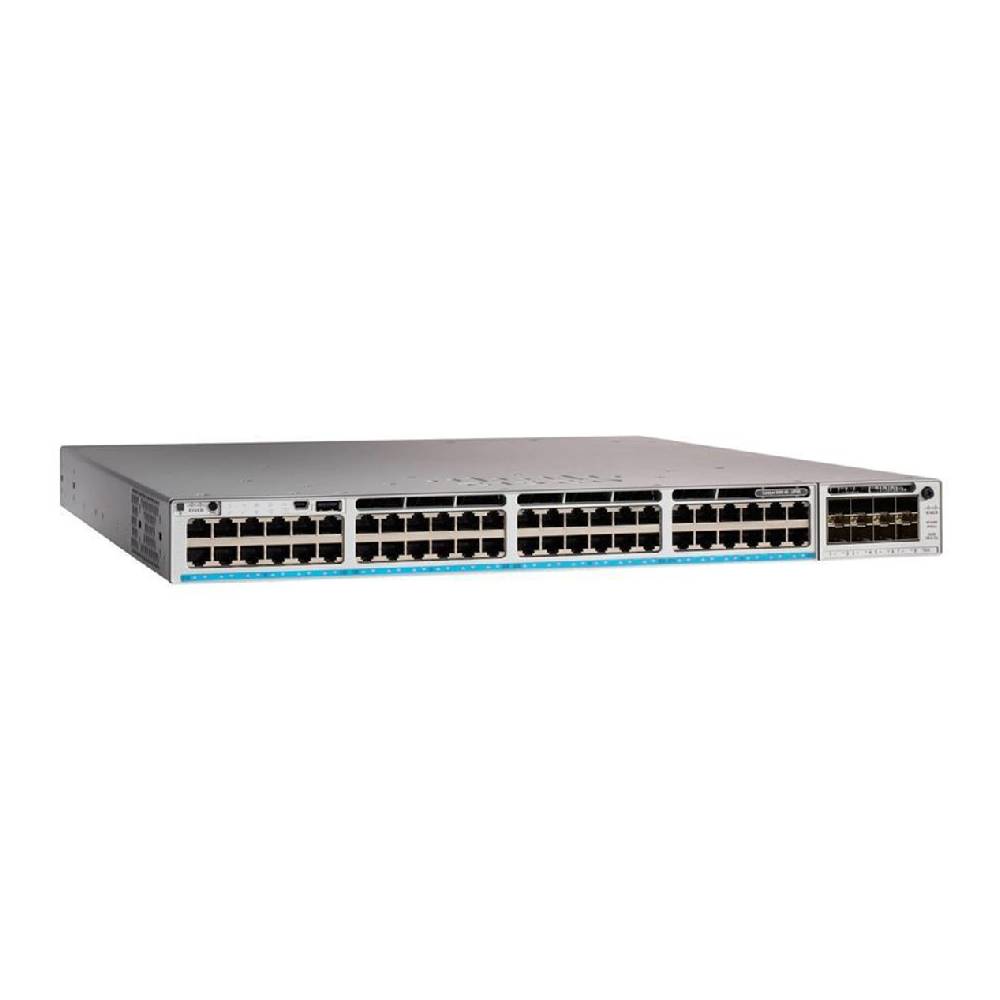

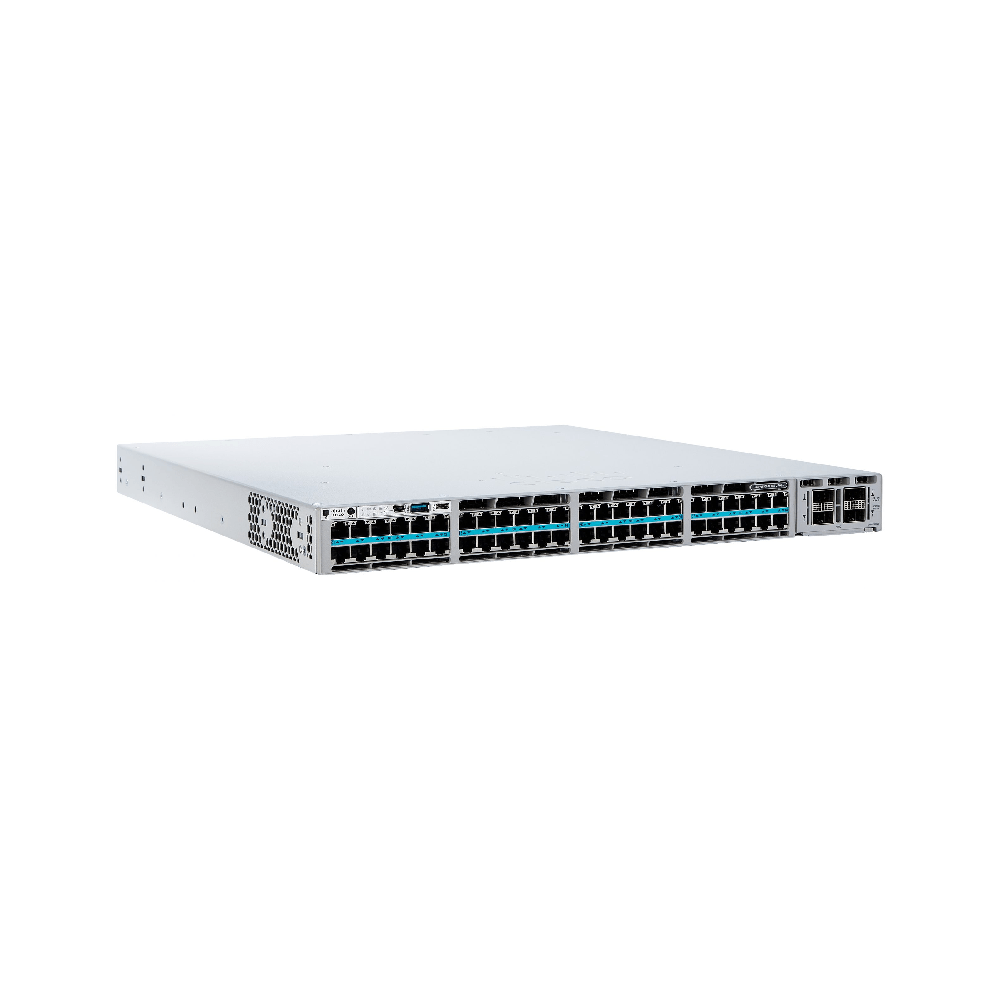

Cisco Catalyst 9300 48-Port mGig UPOE+ Switch C9300X-48HXN-EDU

VENDOR: CISCO Mfg Part#: C9300X-48HXN-EDU
1 3
Photo is for illustration purposes only. Actual product may be different.
$15,437.00
$15,437.00
Sale Sold out
MSRP: $22,640.00
Shipping calculated at checkout.
  • 48-port managed Layer 3 switch supporting 8x 10G mGig and 40x 5GBase-T UPOE+ (90W per port)
  • Up to 3000 Gbps switching capacity and 2232 Mpps forwarding rate with stacking
  • Advanced protocol support including BGP, OSPF, MPLS, MACsec, VXLAN, and TrustSec
  • Integrated 16GB RAM and 16GB flash memory; supports jumbo frames up to 9198 bytes
  • IEEE 802.3-compliant, rack-mountable form factor; includes hot-plug redundant PSU support
  • Limited lifetime warranty and optional next-business-day replacement service

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for educational and enterprise deployments with UPOE+ power and high port density

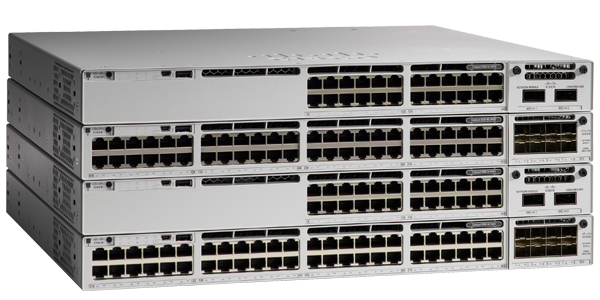

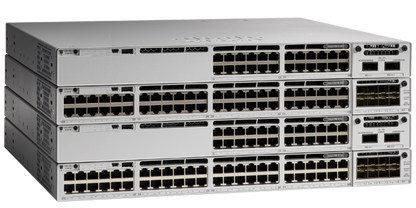

  • Optimized for scalable performance with 8-unit stacking and up to 3000 Gbps in stack configuration
  • Future-proof infrastructure with advanced routing, encryption, and virtualization protocol support

Product Overview

The Cisco Catalyst 9300 Series C9300X-48HXN-EDU is a next-generation layer 3 managed switch, designed to power digital-ready networks across educational institutions and enterprise infrastructures. It features 48 ports with 8 ports supporting 10G multi-gigabit and 40 ports with 5G capability, all enabled with Cisco’s UPOE+ up to 90W for high-power PoE devices. With a switching capacity of 2000 Gbps and up to 3000 Gbps with stacking, it handles bandwidth-intensive applications with ease. This switch also integrates 16GB RAM, 16GB flash memory, and advanced routing protocols like BGP, OSPF, MPLS, and others, ensuring future-ready versatility and high-performance networking.

Compliant with IEEE and 80 PLUS Platinum standards, the switch emphasizes energy efficiency and long-term operational reliability (MTBF 188,200 hours). It supports hot-plug internal PSU and optional power redundancy with up to 1100W. It features advanced security and virtualization technologies such as MACsec encryption, TrustSec, LISP, and VXLAN, and is manageable via a broad array of protocols including NETCONF, RESTCONF, SNMP, and gRPC. Built-in QoS, extensive ACL capacity, jumbo frame (9198 bytes) support, and a robust VLAN architecture promote granular traffic control and network segmentation — ideal for converged applications such as voice, video, and data.

Specifications

Catalyst 9300 48-port, 8xmGig+40x5G 90W UPOE+, K12
Product Description Cisco Catalyst 9300X - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable
Subtype 10 Gigabit Ethernet
Ports 8 x 100/1000/2.5G/5G/10GBase-T (UPOE+) + 40 x 100/1000/2.5G/5GBase-T (UPOE+)
Power Over Ethernet (PoE) UPOE+
Performance Switching capacity: 2000 Gbps ¦ Switching capacity with stacking: 3000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Forwarding rate with stacking: 2232 Mpps
Capacity IPv4 routing table entries: 39000 ¦ Multicast routes: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 8000 ¦ IPv6 routing table entries: 19500 ¦ Packet buffer size: 16 MB ¦ FNF entries: 64000 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP, BGP-4, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, PIM-SM, static IP routing, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, policy-based routing (PBR), RIPng, MPLS, BGP for IPv6, MSTP, STP, LISP, IS-ISv4, mVPN
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG
Features VPN support, full duplex mode, NSF, QoS, Cisco StackWise Technology, Rapid PVST+, SRR, LACP support, RSPAN, VRF, FNF, 802.1x authentication, PTP, DSCP support, MACsec support, VPLS, CoPP, VXLAN, LISP, EVPN, TrustSec support, EoMPLS, Blue Beacon LED, IPSec support, ZTP, CoAP support, EEE, SPAN, SGT caching, PIM, FHS, AVB, PVLAN support, GIR mode, NBAR 2, CIR, Cisco UADP 2.0, CDP, BSR Mechanism, mDNS, SUDI, Preboot Execution Environment, Cisco StackWise-1T technology
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz
Power AC 115-240 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.5 in x 20.6 in x 1.7 in
Weight 14.2 lbs
Pricing Type K-12 education
Manufacturer Warranty Limited lifetime warranty
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable
Subtype 10 Gigabit Ethernet
Ports 8 x 100/1000/2.5G/5G/10GBase-T (UPOE+) + 40 x 100/1000/2.5G/5GBase-T (UPOE+)
Power Over Ethernet (PoE) UPOE+
Performance Switching capacity: 2000 Gbps ¦ Switching capacity with stacking: 3000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Forwarding rate with stacking: 2232 Mpps
Capacity IPv4 routing table entries: 39000 ¦ Multicast routes: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 8000 ¦ IPv6 routing table entries: 19500 ¦ Packet buffer size: 16 MB ¦ FNF entries: 64000 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Max Units In A Stack 8
Routing Protocol OSPF, RIP, BGP-4, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, PIM-SM, static IP routing, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, policy-based routing (PBR), RIPng, MPLS, BGP for IPv6, MSTP, STP, LISP, IS-ISv4, mVPN
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG
Encryption Algorithm 128-bit AES, 256-bit AES
Features VPN support, full duplex mode, NSF, QoS, Cisco StackWise Technology, Rapid PVST+, SRR, LACP support, RSPAN, VRF, FNF, 802.1x authentication, PTP, DSCP support, MACsec support, VPLS, CoPP, VXLAN, LISP, EVPN, TrustSec support, EoMPLS, Blue Beacon LED, IPSec support, ZTP, CoAP support, EEE, SPAN, SGT caching, PIM, FHS, AVB, PVLAN support, GIR mode, NBAR 2, CIR, Cisco UADP 2.0, CDP, BSR Mechanism, mDNS, SUDI, Preboot Execution Environment, Cisco StackWise-1T technology
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz
RAM 16 GB
Flash Memory 16 GB
Built-in Devices RFID tag
Status Indicators Status
Interfaces 8 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE+ - 90 W ¦ 40 x 100/1000/2.5G/5GBase-T RJ-45 UPOE+ - 90 W ¦ 1 x USB 2.0
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power Device Internal power supply - hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Provided 1100 Watt
Voltage Required AC 115-240 V (50 - 60 Hz)
80 PLUS Certification 80 PLUS Platinum
MTBF 188,200 hours
Compliant Standards EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, CISPR 35, V-2/2015.04, V-3/2015.04
Pricing Type K-12 education
Width 17.5 in
Depth 20.6 in
Height 1.7 in
Weight 14.2 lbs
Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 3 years
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 90% (non-condensing)
COO MEXICO
TAA compliance Yes
