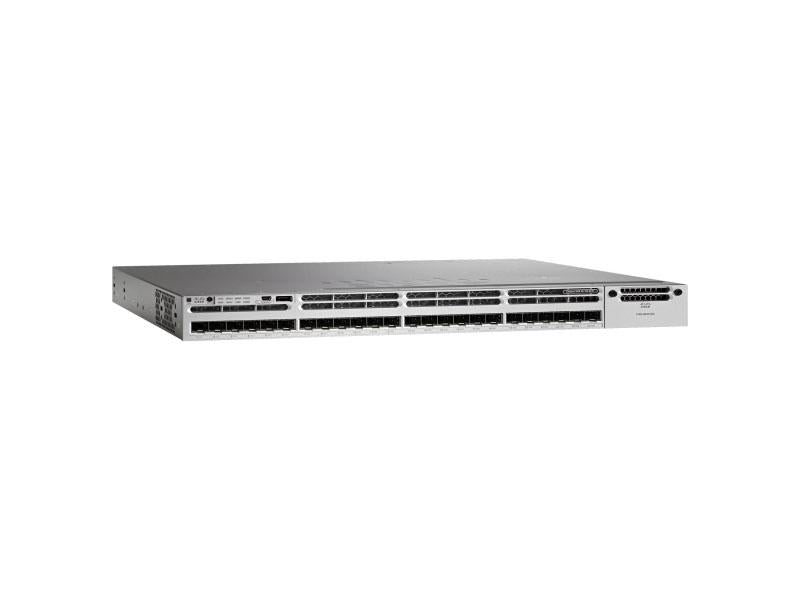

Cisco Catalyst 9300 C9300-24S-A 24-Port GE SFP Managed Switch

VENDOR: CISCO Mfg Part#: C9300-24S-A UPC#: 889728193597
  • The Cisco Catalyst 9300 C9300-24S-A is a high-performance, enterprise-grade Layer 2 and Layer 3 switch with 24 Gigabit SFP ports. Designed for scalable networking environments, it supports advanced routing protocols and provides robust memory and security features. Ideal for organizations prioritizing performance, reliability, and long-term support.
1 1
Photo is for illustration purposes only. Actual product may be different.
$34,907.00
$34,907.00
Sale Sold out
MSRP: $49,295.00
Shipping calculated at checkout.
  • 24x 1G SFP ports for high-performance fiber connectivity
  • Layer 2 and Layer 3 support with RIPv1, RIPv2, RIPng routing protocols
  • Built-in 8 GB RAM and 16 GB flash memory for application headroom
  • Advanced remote management: SNMP, RMON, and Syslog protocols
  • Supports jumbo frames up to 9198 bytes for efficient large packet transfer
  • MTBF of 284,130 hours for high reliability and uptime
View full details

Key Benefits

Eye-Insights
  • Supports secure and scalable enterprise networking with Layer 3 protocols and AES-256 encryption.
  • Built-in hardware resiliency featuring over 284,000 hours MTBF and wide operating temperature compatibility.
  • Backed by Cisco’s Enhanced Limited Lifetime Warranty and TAA compliance, ensuring long-term value and regulatory support.

Product Overview

The Cisco Catalyst 9300 C9300-24S-A is a next-generation wired enterprise switch delivering high-performance 24x 1G SFP ports for scalable, fiber-based networks. It supports Layer 2 & Layer 3 routing, including RIPv1, RIPv2, and RIPng, and is built with 8 GB RAM and 16 GB of flash memory for robust performance. Advanced management options include SNMP, RMON, and Syslog, while compliance with 802.1p/s/w ensures interoperability. Designed with an impressive MTBF of 284,130 hours and environmental resilience, it's ideal for mission-critical environments. The switch also features AES-256 encryption, TAA compliance, and comes backed by an Enhanced Limited Lifetime Warranty.

Specifications

Primary Information
Network Device Type Switch
Model C9300-24S-A
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1D
Media Layer Supported Layer 2, Layer 3
Power / Device Type Power Supply
Uplink Port Modular Uplinks
Power / Provided (W) 715 Watt
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
MTBF 284130 hours

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol Syslog; RMON; SNMP
Routing Protocol RIPv1, RIPv2, RIPng
Encryption Algorithm AES (256-bit)
SFP Ports 24
Interfaces 24-port 1G SFP

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

Special Feature
COO BRAZIL / CHINA / MEXICO / UNITED STATES
TAA compliance Yes
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 17.7 Inch
Height 1.73 Inch
Weight 7.64 Kg

Interfaces / Ports
Interfaces 24-port 1G SFP
SFP Ports 24
