| Product Type | Managed Layer 3 Stackable Switch |
| Form Factor | Rack-mountable |
| Weight | 15.72 lbs |
| Power Requirements | AC 120/230 V (50 - 60 Hz) |
| Redundant Power Support | Optional |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 1100 Watt |
| PoE Support | UPOE (Universal Power Over Ethernet) |
| PoE Budget | 880 W |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| MTBF | 332,640 hours |

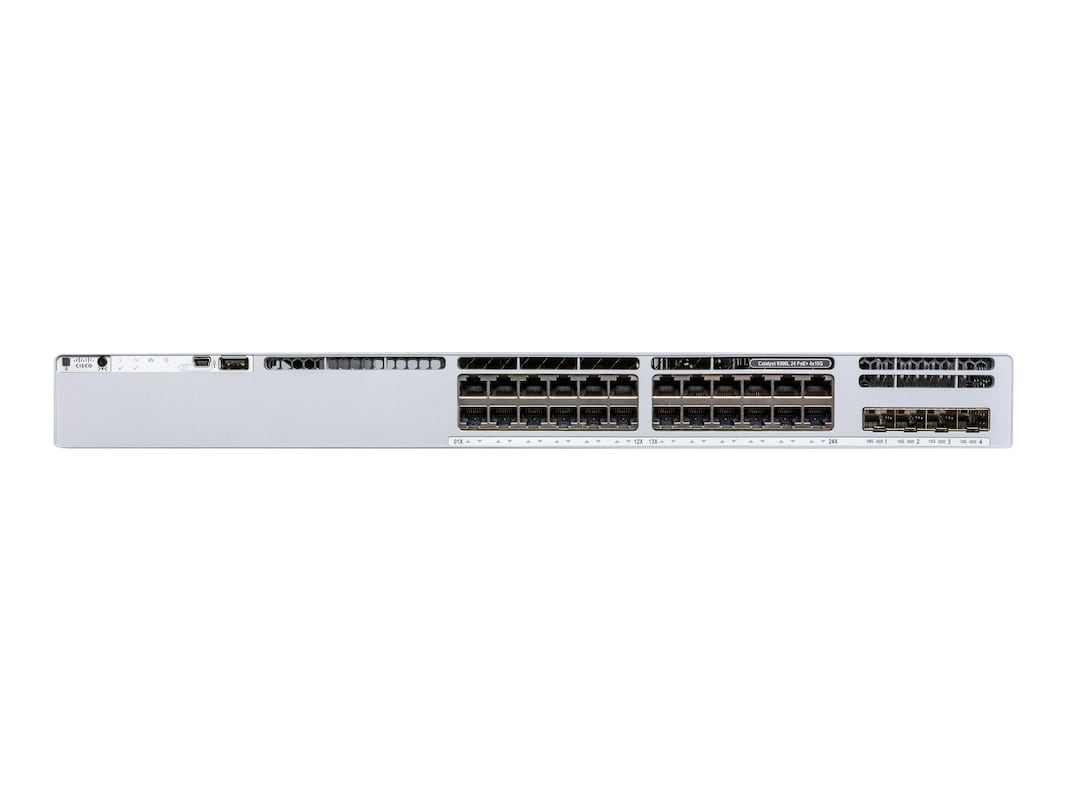

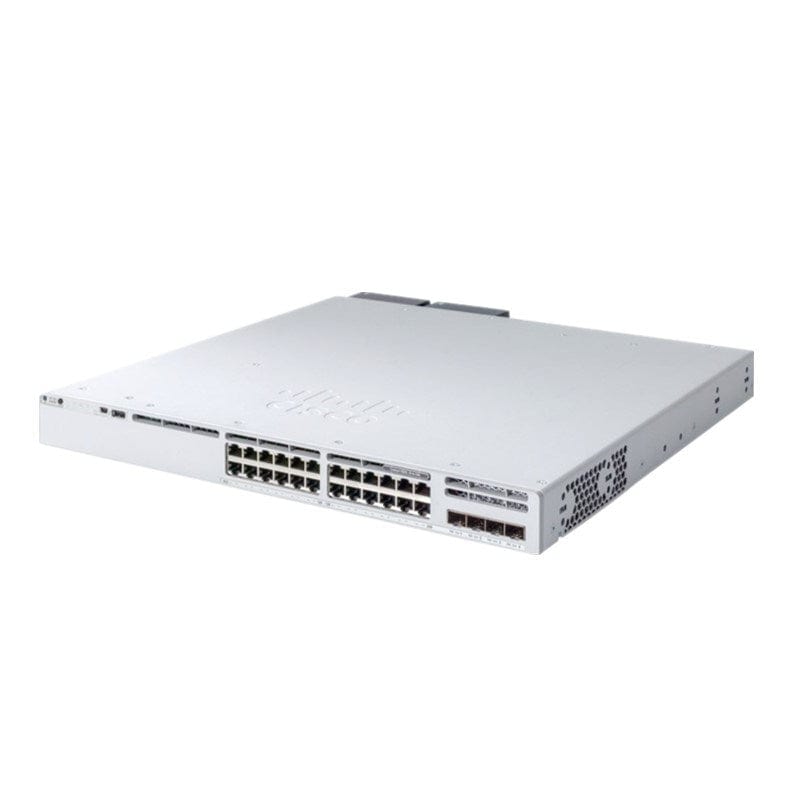

Cisco Catalyst 9300L 24-Port UPOE Switch with 4x10G Uplinks, Network Essentials
Photo is for illustration purposes only. Actual product may be different.
Regular price
$9,823.00
Regular price
Sale price
$9,823.00
Unit price
per
MSRP: $14,406.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 x 10/100/1000 UPOE ports with 880W power budget
- 4 x 10G SFP+ uplinks for high-speed connectivity
- Switching capacity up to 272 Gbps (592 Gbps with stacking)
- Support for MACsec, QoS, ACLs, and VLANs up to 4094
- Advanced routing protocol support including OSPF, EIGRP, RIPng
- StackWise-320 technology and 16 GB flash / 8 GB RAM
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports full UPOE power delivery across all ports, making it ideal for powering VoIP, video, and wireless devices without additional adapters.
- Exceptional throughput and scalability with high switching capacity and forwarding rate, ideal for enterprise networks with heavy traffic.
- Built-in enterprise-grade security and remote management protocols ensure secure and centralized network control.
Product Overview
The Cisco Catalyst 9300L-24UXG-4X-E is a next-generation enterprise-grade switch designed to meet increasing network demands for speed, scale, and centralized control. Featuring 24 UPOE-capable 10/100/1000 ports alongside 4x10G SFP+ uplink ports, it allows for high-throughput data transmission while powering end devices. With optional power redundancy, internal hot-plug power supply, and a total PoE budget of 880W, this switch ensures efficient, reliable deployment in diverse enterprise environments.
This unit delivers a non-blocking switching capacity of 272 Gbps (592 Gbps with stacking) and a forwarding rate up to 440.47 Mpps, supporting large routing tables, VLANs, and MAC entries. Advanced routing and remote management tools ensure adaptability in complex settings. Built-in security features like MACsec encryption, 802.1X authentication, and Cisco Trust Anchor module help secure traffic. Designed for stackable deployments, and backed by a limited lifetime warranty, this switch offers dependable scalable performance for demanding networks.
Specifications
Product Overview
Performance & Capacity
| Switching Capacity | 272 Gbps |
| Switching Capacity with Stacking | 592 Gbps |
| Forwarding Rate | 202.38 Mpps |
| Forwarding Rate with Stacking | 440.47 Mpps |
| MAC Address Table Size | 32000 entries |
| IPv4 Routing Table Size | 32000 routes |
| IPv6 Routing Table Size | 16000 routes |
| Multicast Routing Scale | 8000 entries |
| QoS Scale Entries | 5120 entries |
| ACL Scale Entries | 5120 entries |
| Supported VLANs | 4094 |
| Switched Virtual Interfaces (SVIs) | 1000 |
Cloud Management & Licensing
| Software Image | Network Essentials |
| Management Interfaces | CLI, SNMP (v1, v2c, v3), RMON, RESTCONF, NETCONF, gRPC, YANG |
| Zero-Touch Provisioning | Yes (ZTP) |
| Stacking Technology | Cisco StackWise-320 |
Physical & Environmental
| Width | 17.5 in |
| Height | 1.7 in |
| Depth | 19.2 in |
| Minimum Operating Temperature | 23 °F |
| Maximum Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Minimum Storage Temperature | -40 °F |
| Maximum Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Compliance & Origin
| Country of Origin | China / Mexico / Vietnam |
| TAA Compliant | Yes |
| Certifications & Standards | FCC Part 15 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 55032 Class A, CISPR 22/24/32/35, VCCI, BSMI, CCC, ICES-003, EN 300 386, IEEE 802 standards (various) |
Interfaces
| Data Ports | 24 x 10/100/1000 (UPOE) |
| Uplink Ports | 4 x 10 Gigabit SFP+ |
| Multigigabit Ports | 8 x 1/2.5/5/10GBase-T RJ-45 |
| Additional Interfaces | 1 x network stack device, 1 x management LAN RJ-45, 1 x console port, 1 x USB 2.0 |
| Jumbo Frame Support | 9198 bytes |
| Data Transfer Rate | Up to 10 Gbps (uplinks), up to 5/10 Gbps (multigig) |
Advanced Security Features
| MACsec Encryption Support | Yes, 802.1ae (128 & 256-bit AES) |
| 802.1X Port-Based Authentication | Yes |
| Cisco Trust Anchor Module | Yes |
| Secure Boot | Yes |
| Access Control Lists (ACL) | Yes |
| Storm Control | Supported |
| DHCP Snooping | Yes |
Routing & Protocol Support
| Routing Protocols | OSPF, RIP, EIGRP, VRRP, PIM-SM, MSTP, RIPng, OSPFv3, PIM-SSM, PBR, EIGRP for IPv6 |
| Multicast Protocol Support | Yes (PIM, IGMP Snooping) |
| Spanning Tree Protocol | Rapid PVST+, MSTP |
Memory
| RAM | 8 GB |
| Flash Memory | 16 GB |
Warranty & Support
| Manufacturer Warranty | Limited Lifetime Warranty |
| Service & Support | Replacement - lifetime NRA; Technical support - 90 days (consulting) |
