Cisco Catalyst 9300L 48-Port Gigabit Network Switch, C9300L-48UXG-4X-E

VENDOR: CISCO Mfg Part#: C9300L-48UXG-4X-E UPC#: 889728174244
  • CATALYST 9300L 48P, 12MGIG, NETWORK ESSE
1 1

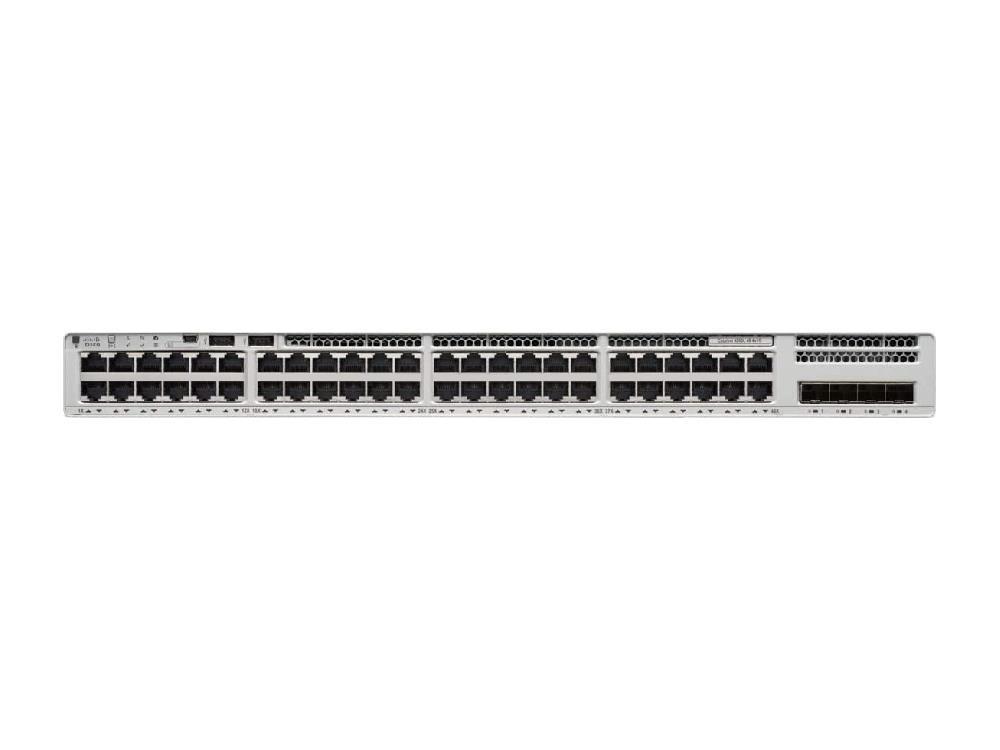

Photo is for illustration purposes only. Actual product may be different.
$11,755.00
$11,755.00
Sale Sold out
MSRP: $22,655.00
Shipping calculated at checkout.
  • - 48 x 10/100/1000 UPOE ports with 4 x 10G SFP+ uplinks for high-density connectivity
  • - Switching capacity up to 392 Gbps (712 Gbps with stacking) and forwarding rate up to 529.76 Mpps
  • - Advanced Layer 3 support with multiple routing protocols including OSPF, EIGRP, PIM, RIPng
  • - Integrated MACsec encryption, secure boot, and Cisco Trust Anchor module for enhanced security
  • - QoS and ACL scale entries of 5,120 and support for up to 4094 VLANs
  • - Management protocols include SNMP (v1/2c/3), RESTCONF, gRPC, and CLI

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers exceptional performance and scalability for enterprise-class networks with up to 712 Gbps switching capacity and high forwarding rates.
  • Provides future-ready infrastructure with UPOE support and 4 x 10G uplink ports for high-bandwidth applications.
  • Incorporates robust security and network management capabilities, including MACsec encryption, QoS, and a wide array of remote management options.

Product Overview

The Cisco Catalyst 9300L-48UXG-4X-E is a stackable, rack-mountable Layer 3 managed switch with 48 UPOE-enabled Gigabit Ethernet ports and 4 x 10G SFP+ uplinks. Supporting a PoE budget of 675W, and offering extensive routing protocols and advanced security features like MACsec encryption, it is ideal for high-density enterprise networks. The switch delivers performance of up to 712 Gbps with stacking and is IPv6 ready, featuring full support for modern traffic management. With management options like SNMP, RESTCONF, and CLI support, and optimal environmental operating ranges, this switch ensures enterprise-grade scalability and reliability.

Specifications

Product Overview
Type Layer 3 Managed Stackable Network Switch
Form Factor Rack-mountable
Installed Power Supply 1 (internal, hot-plug)
Max Supported Power Supplies 2
Power Redundancy Optional
Power Provided 1100 Watt
Power Requirements AC 120/230 V (50 - 60 Hz)
MTBF 273,820 hours
Flash Memory 16 GB
RAM 8 GB
Packet Buffer Size 16 MB
Jumbo Frame Support 9198 bytes
Status Indicators Status
Weight 16.87 lbs

Advanced Security Features
MACsec Encryption Yes
Encryption Algorithms 128-bit AES, 256-bit AES
Access Control Lists (ACL) Supported (5120 entries)
802.1X Authentication Yes
Secure Boot Yes
Cisco Trust Anchor Module Yes
Policy-Based Routing (PBR) Supported
Private VLAN Support Yes
Control Plane Protection (CoPP) Yes

Cloud Management & Licensing
Management Interface CLI, SNMP (v1/v2c/v3), RESTCONF, NETCONF, gRPC, YANG
License Included Network Essentials
Zero Touch Provisioning (ZTP) Yes

Compliance & Origin
Country of Origin China / Mexico
TAA Compliant Yes
Certifications UL 60950-1, IEC 60950-1, FCC CFR47 Part 15 B Class A, EN 55022 Class A, VCCI Class A, RoHS, ICES-003 Class A, BSMI Class A, EN 61000-3-2/3, CISPR 22/24/32/35, AS/NZS 3548/60950-1, CCC, KN32, KN35

Interfaces
Downlink Ports 48 x 10/100/1000 (UPOE)
Uplink Ports 4 x 10 Gigabit SFP+
Multi-Gigabit Ports 12 x 1/2.5/5/10GBase-T RJ-45
Console Ports 1 x RJ-45, 1 x USB 2.0
Stacking Port 1 x Network Stack Device Port
Management Port 1 x RJ-45 (LAN)
Switching Capacity (Standalone) 392 Gbps
Switching Capacity (With Stacking) 712 Gbps
Forwarding Rate (Standalone) 291.66 Mpps
Forwarding Rate (With Stacking) 529.76 Mpps
MAC Address Table Size 32,000 entries
PoE Type UPOE
PoE Budget 675 W

Routing & Network Features
IPv4 Route Entries 32,000
IPv6 Route Entries 16,000
Access Control Entries (ACL) 5,120
Multicast Scale 8,000
Quality of Service Entries 5,120
VLANs Supported 4094
SVIs Supported 1000
Routing Protocols OSPF, RIP, EIGRP, VRRP, PIM-SM, PIM-SSM, OSPFv3, EIGRP for IPv6, RIPng, MSTP
Traffic Features QoS, CoS, DSCP, Rapid PVST+, SRR, CIR, FNF

Physical & Environmental
Width 17.5 in
Height 1.7 in
Depth 19.2 in
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Operating Humidity Range 5 - 90% (non-condensing)
Storage Humidity Range 5 - 90% (non-condensing)
