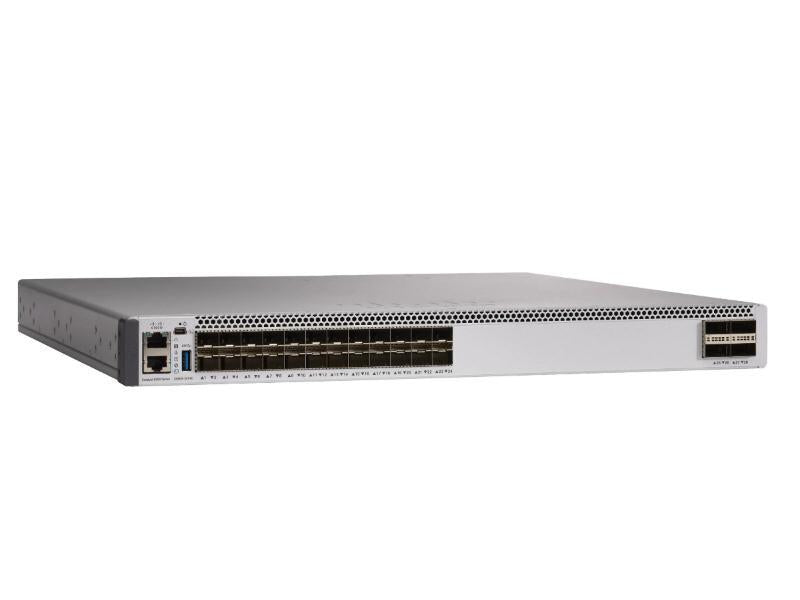

Cisco Catalyst 9500 24x25G + 4x100G Switch, DNA Essentials 1Y

VENDOR: CISCO Mfg Part#: C9500-24Y4C-1E UPC#: 889728146623
  • The Cisco Catalyst 9500 24x25G and 4-port 40/100G is a high-performance, secure, and scalable enterprise switch bundled with a one-year DNA Essentials subscription. With robust Layer 3 capabilities, high-density 25G/100G interfaces, and full programmability, it's engineered for next-gen access and aggregation in critical enterprise networks. The switch combines extended policy control, automation, and network visibility to boost operational efficiency and secure infrastructure.
1 1
Photo is for illustration purposes only. Actual product may be different.
$34,359.00
$34,359.00
Sale Sold out
MSRP: $48,521.00
Shipping calculated at checkout.
  • 24 x 25 Gigabit SFP28 ports and 4 x 100Gbit LAN interfaces
  • Switching capacity of 1.6 Tbps and forwarding rate of 1 Bpps
  • Supports up to 64K MAC addresses and 90K host IPv4/IPv6 routes
  • Includes Cisco IOS Universal and 1-year DNA Essentials license
  • Advanced L3 features: OSPF, BGP, EIGRP, policy-based routing
  • Redundant power supply options with 1+1 scheme and hot-plug support
View full details

Key Benefits

Eye-Insights
  • Delivers ultra-high performance with 1.6 Tbps switching capacity, ideal for bandwidth-intensive enterprise applications.
  • Advanced automation and security via Cisco DNA Essentials, 256-bit AES encryption, and integrated Wireshark.
  • Scalable, future-ready architecture with deep protocol support and 64K MAC address table, supporting expansive network growth.

Product Overview

The Cisco Catalyst 9500 Series Switch (C9500-24Y4C-1E) delivers advanced Layer 3 switching in a compact 1U rack-mountable design, supporting 24x 25G SFP28 and 4x 100G high-speed ports for top-tier data throughput. Tailored for digital-ready enterprise cores and aggregation layers, this managed switch supports 1.6 Tbps switching capacity and 1 Bpps forwarding rate, ideal for bandwidth-heavy, latency-sensitive applications. It supports 64K MAC addresses, 90K routes per protocol, and scale-optimized multicast and ACL configurations.

Integrated with Cisco IOS Universal and a 1-year DNA Essentials subscription, it enables automation, analytics, and policy enforcement. Compatibility with OSPF, BGP, VRRP, and other key protocols ensures robust routing, while 256-bit AES encryption and 802.1x authentication reinforce network security posture. Embedded Wireshark support, programmable interfaces (NETCONF/RESTCONF), and telemetry enhance operational visibility.

The device is equipped with hot-pluggable redundant power support, optional 1+1 redundancy, and offers a notable MTBF of 336,780 hours. Jumbo frame support, advanced QoS, IPv6 readiness, and class-leading standards compliance make it a durable, scalable solution for future-ready enterprise networks.

Specifications

Primary Information
Power / Voltage Required 90 to 264 VAC
Network Device Type Switch
Model Catalyst 9500
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Networking / Ports Qty Not Included
Data Link Protocol Gigabit Ethernet

Service&Support
Service & Support Type Limited Lifetime Hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Interfaces 24x 1/10/25G Gigabit Ethernet + 4x 40/100G Uplink;RJ45 and USB-mini type B

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 18 Inch
Height 1.73 Inch

Special Feature
COO CHINA / MEXICO / THAILAND / CHINA / MEXICO / THAILAND
TAA compliance Yes

Interfaces / Ports
Interfaces 24x 1/10/25G Gigabit Ethernet + 4x 40/100G Uplink;RJ45 and USB-mini type B
