Cisco Catalyst 9500 C9500-48Y4C-CX 48-Port 1/10/25G Switch

VENDOR: CISCO Mfg Part#: C9500-48Y4C-CX
1 3

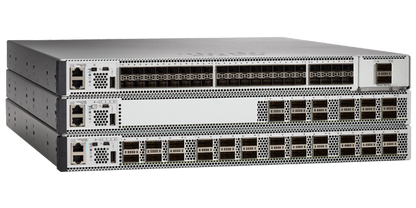

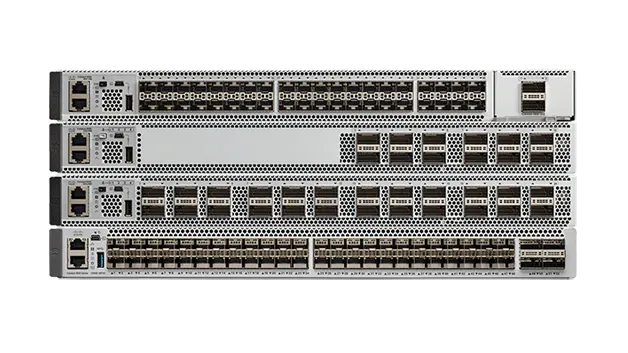

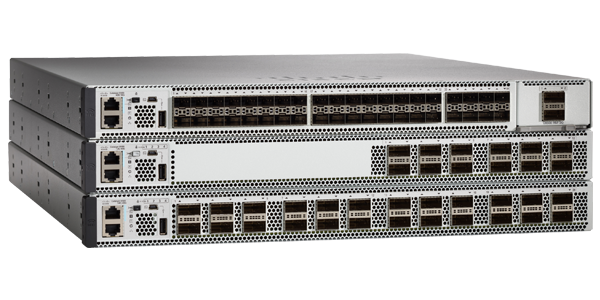

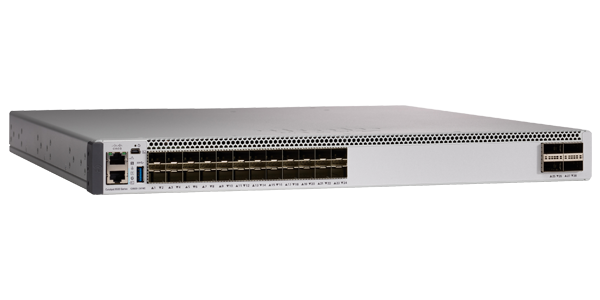

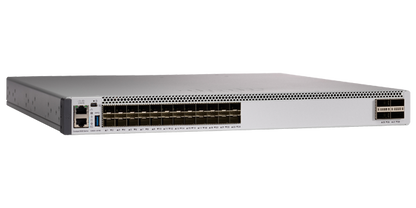

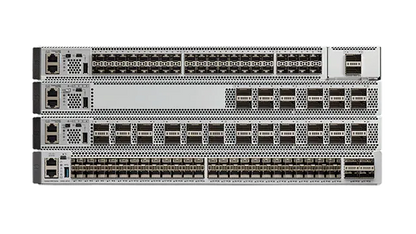

Photo is for illustration purposes only. Actual product may be different.
$27,436.00
$27,436.00
Sale Sold out
MSRP: $40,239.00
Shipping calculated at checkout.
  • 48-port 1/10/25G and 4-port 40/100G wired switch supporting high-speed connectivity
  • Layer 2 and Layer 3 capable with routing protocols RIPv2, RIPng, OSPFv2
  • MACsec encryption support ensures secure data transmission
  • Supports jumbo frames up to 9216 bytes and 82,000 MAC address entries
  • Includes 16 GB RAM and 16 GB flash memory for reliable performance
  • TAA compliant, with an MTBF of 316,960 hours for industrial reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers exceptional port density and uplink flexibility with 48 multigigabit and 4 high-speed ports
  • Advanced routing features and secure encryption make it suitable for enterprise core deployments
  • Long operational lifespan and limited lifetime support reduce total cost of ownership

Product Overview

The Cisco Catalyst 9500 C9500-48Y4C-CX is a fixed core and aggregation switch designed for next-gen enterprise networks. It features 48 1/10/25G ports and 4 40/100G uplinks, with support for Layer 2 and Layer 3 switching. With an MTBF of 316,960 hours, 16 GB RAM, jumbo frames up to 9216 bytes, and advanced protocols (RIP, OSPFv2, MACsec), it's ideal for secure high-traffic network environments. The 1RU switch provides robust management features and meets TAA compliance standards.

Specifications

Product Overview
Product Type Fixed Core and Aggregation Switch
Model C9500-48Y4C-CX
Form Factor 1RU
Weight 8.15 kg
Power Requirements 90 to 264 VAC
MTBF 316960 hours
RAM 16 GB
Flash Memory 16 GB
Layer Support Layer 2, Layer 3
Power Device Type Power Supply

Routing & Network Protocols
Routing Protocols RIPv2, RIPng, OSPFv2
Remote Management Protocols IPv4, IPv6, VLAN
Networking Standards 802.1s, 802.1w, 802.1x

Physical & Environmental
Width 17.5 inches
Depth 18.0 inches
Height 1.73 inches
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 40 °C
Minimum Storage Temperature -20 °C
Maximum Storage Temperature 65 °C

Cloud Management & Licensing
Management Interface Cisco DNA Center, CLI, SNMP, NetFlow, REST API
License Options Cisco DNA Advantage or Essentials licenses required
Cloud-Managed Features Yes, via Cisco DNA Center

Interfaces
Total Ports 56
Downlink Ports 48 x 1/10/25G
Uplink Ports 4 x 40/100G
Interface Types 1/10/25G Ethernet, 40/100G Uplinks, RJ45, USB Mini-B
Data Transfer Rate 100 Gbps
MAC Address Table Size Up to 82000
Media Access Protocol Gigabit Ethernet
Jumbo Frame Support 9216 bytes
PoE Support None

Advanced Security Features
Encryption Algorithm MACsec

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes

Service & Warranty
Warranty Type Enhanced Limited Lifetime Hardware Warranty
