Cisco Catalyst 9500X 60x25/50G + 4x400G Switch, 1RU, C9500X-60L4D-CX

VENDOR: CISCO Mfg Part#: C9500X-60L4D-CX
  • The Cisco Catalyst C9500X-60L4D-CX is a high-density, enterprise-grade switch delivering 65 ports of multispeed Ethernet, including 60x 10/25/50G and 4x 40/100/200/400G, in a compact 1RU format. Powered by the Cisco Silicon One Q200 ASIC and offering full Layer 2 and 3 functionality, it is engineered for scalable, secure deployments in core and edge networking environments. Ideal for high-performance enterprise environments requiring top-tier data forwarding and routing capabilities.
1 1

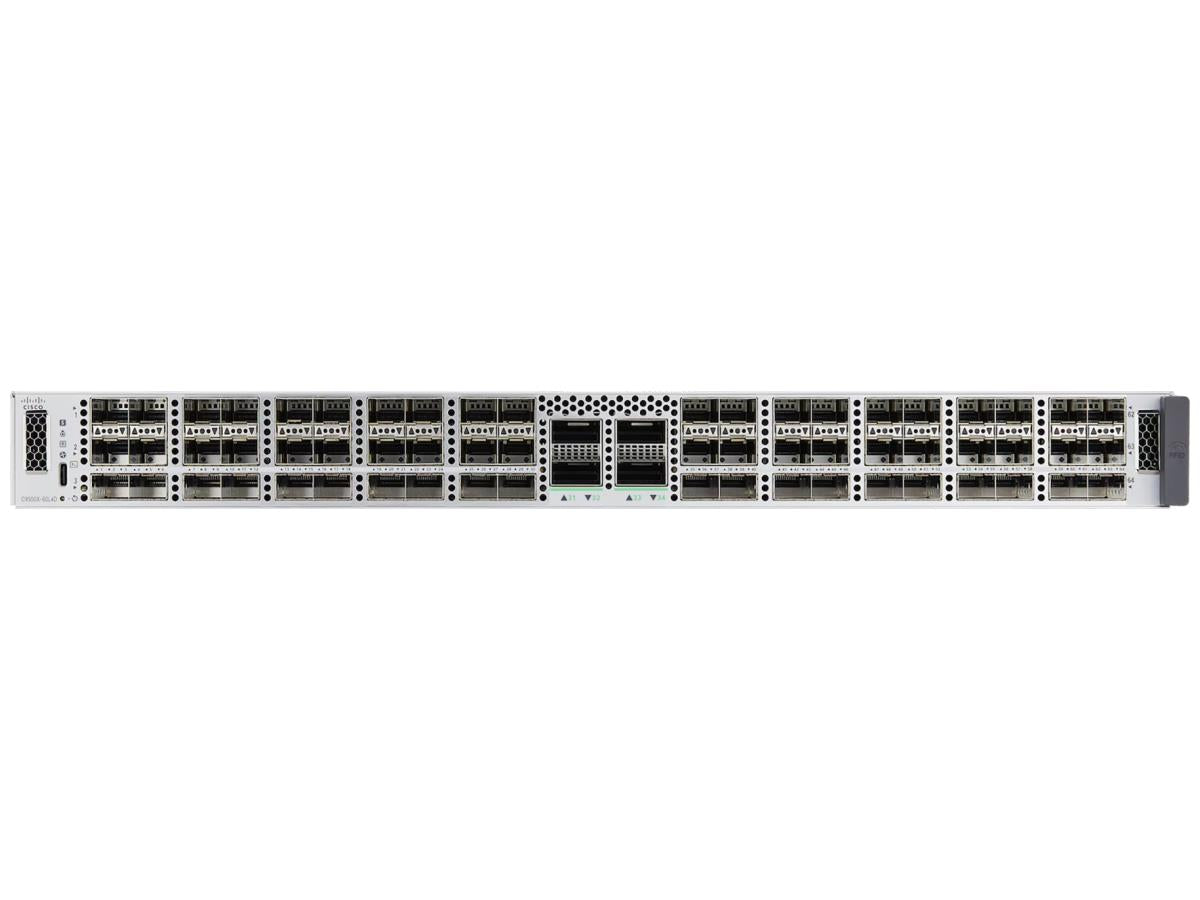

Photo is for illustration purposes only. Actual product may be different.
$52,053.00
$52,053.00
Sale Sold out
MSRP: $95,818.00
Shipping calculated at checkout.
  • 65 total networking ports including 60x 10/25/50G and 4x 40/100/200/400G interfaces
  • Cisco Silicon One Q200 ASIC enabling up to 12.8 Tbps duplex and 8 Bpps forwarding
  • 32GB RAM and 32GB flash memory for advanced networking applications
  • Full support for Layer 2 and Layer 3 routing protocols including OSPF and EIGRP
  • Enhanced Limited Lifetime Hardware Warranty with 133,260-hour MTBF
  • Supports 9216-byte jumbo frames and AES encryption for secure, high-throughput data flows
View full details

Key Benefits

Eye-Insights
  • Offers superior port density and speed flexibility with 65 multispeed Ethernet ports for high-performance scalability.
  • Delivers enterprise-grade switching performance with Cisco Q200 ASIC architecture providing 12.8 Tbps throughput.
  • Long life expectancy and warranty coverage support enterprise TCO with 133,260-hour MTBF and enhanced lifetime warranty.

Product Overview

The Cisco Catalyst 9500X C9500X-60L4D-CX is a high-performance enterprise-class switch tailored for organizations demanding dense, scalable connectivity and next-generation throughput. Housed in a compact 1RU chassis, this switch features 60 multispeed 10/25/50G Ethernet ports and 4 ultra-high-speed 40/100/200/400G uplink ports—bringing the port count to 65 for extensive connectivity in data-intensive environments.

Powered by the Cisco Silicon One Q200 ASIC, the platform supports 12.8 Tbps throughput and 8 Bpps packet forwarding, ensuring unmatched performance for core and edge networking. It includes Layer 2/3 capabilities, advanced routing protocols, extensive remote management (SNMP, DHCP, IPv6), and strong hardware specs with 32GB RAM + 32GB flash.

Additional features include jumbo frame support (9216 bytes), AES encryption, and compliance with key standards (802.1x, 802.1p/w/s). Backed by a 133,260-hour MTBF and Enhanced Limited Lifetime Warranty, it's designed for reliable, long-term operation in enterprise environments.

Specifications

Primary Information
Data Transfer Rate 400 Gbps
Data Link Protocol Gigabit Ethernet
Processor / Type Octa-Core
Connectivity Technology Wired
Model C9500X-60L4D-CX
Features The Cisco Silicon One Q200 Application-Specific Integrated Circuit (ASIC) is purpose built for the next generation network core + edge switch. It is the first enterprise ASIC to offer speeds up to 12.8 Tbps full duplex with 8 Bpps of forwarding performance, while supporting high-performance and full routing and switching capabilities without external memories
Network Device Type Switch
Form Factor 1RU
Networking Compliant Standards 802.1D,802.1s,802.1w,802.1p, 802.1x
Power / Device Type Power Supply
Media Layer Supported Layer 2 and Layer 3
MTBF 133260 hours
RAM / Total Installed Size 32 GB
Flash Memory / Installed Size 32 GB
Power / Provided (W) 1500 Watt
Networking / Ports Qty 65

Service&Support
Service & Support Type Enhanced Limited Lifetime Hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 60x 10/25/50G Gigabit Ethernet + 4x 40/100/200/400G Gigabit Ethernet, USB

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 21.8 Inch
Height 1.73 Inch

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
Max Operating Temperature 45 Celsius

Network
Power Over Ethernet (PoE) Support none
Remote Management Protocol SNMP; IPv6; DHCP
Routing Protocol EIGRPv6,IPv4,IPv6,EIGRP,OSPFv2,OSPFv3
Encryption Algorithm AES
Interfaces 60x 10/25/50G Gigabit Ethernet + 4x 40/100/200/400G Gigabit Ethernet, USB
PoE Power Consumption none
MAC Address Table Size 256000
Jumbo Frame Support 9216 bytes
