| Device Type | Switch - 24 ports - L3 - stackable |
| Product Description | Cisco Catalyst 9200L - Network Advantage - switch - 24 ports - rack-mountable - TAA Compliant |
| Form Factor | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Weight | 11.02 lbs |
| Power Requirements | AC 100-240 V (50 - 60 Hz) |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Max Supported Power Supplies | 2 |
| MTBF | 525,990 hours |

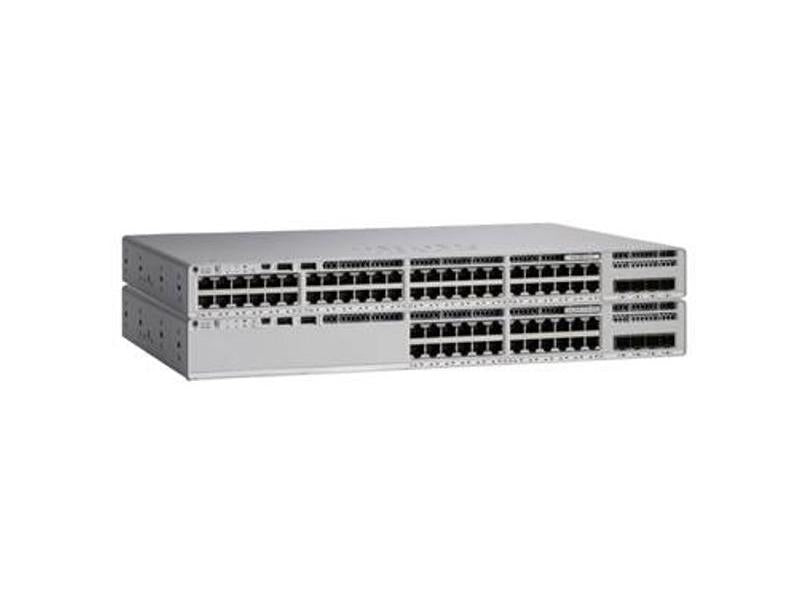

Cisco Catalyst C9200L-24T-4X-A++ 24-Port TAA L3 Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$3,668.00
Regular price
Sale price
$3,668.00
Unit price
per
MSRP: $5,380.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 x 10/100/1000 + 4 x 10G SFP+ uplink ports
- Switching capacity of 128 Gbps and forwarding rate of 190.4 Mpps
- Advanced routing support including OSPF, EIGRP, PIM, and RIPng
- QoS with 8 hardware queues per port and 16000 MAC address entries
- Energy Efficient Ethernet and MACsec encryption support
- Supports Cisco StackWise Technology with 80 Gbps stacking bandwidth
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers robust Layer 3 switching performance with 24 Gigabit ports and high-speed uplinks for growing enterprise networks
- TAA compliance ensures suitability for government and regulated industry deployments
- Extensive protocol and management support, including QoS, NetFlow, and secure remote access, optimizes control and efficiency
Product Overview
The Cisco Catalyst C9200L-24T-4X-A++ is a high-performance stackable L3 switch with 24 Gigabit ports and 4 x 10G SFP+ uplinks, ideal for high-throughput enterprise environments. It supports 190.4 Mpps forwarding rate and 128 Gbps switching capacity, powered by Cisco StackWise for scalable stacking up to 80 Gbps. Advanced routing support, including OSPF, EIGRP, RIP, VRRP, enhances compatibility with complex topologies. Rich feature support includes Flexible NetFlow (FNF), QoS with 8 queues per port, and MACsec security. Fully TAA-compliant and rack-mountable, this switch guarantees performance, compliance, and manageability through CLI, SNMP, RESTCONF, and more.
Specifications
Product Overview
Physical & Environmental
| Width | 17.5 in |
| Depth | 11.3 in |
| Height | 1.7 in |
| Operating Humidity | 5 - 90% (non-condensing) |
| Storage Humidity | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
Advanced Security Features
| MACsec Support | Yes |
| 802.1X Authentication | Yes |
| Control Plane Protection (CoPP) | Yes |
| Private VLAN (PVLAN) Support | Yes |
| First Hop Security (FHS) | Yes |
Routing & Protocols
| Routing Protocols | OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, Policy-Based Routing (PBR), RIPng, MSTP |
Warranty & Support
| Manufacturer Warranty | Limited lifetime warranty |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Interfaces
| Total Ports | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) |
| RJ-45 Ports | 24 x 1000Base-T RJ-45 |
| SFP+ Ports | 4 x 10GBase-X SFP+ |
| Stacking Port | 1 x network stack device |
| Management Port | 1 x management (LAN) RJ-45 |
| Console Port | 1 x console RJ-45 |
| Performance | Stacking bandwidth: 80 Gbps, Switching capacity: 128 Gbps, Forwarding rate: 190.4 Mpps |
| Jumbo Frame Support | 9198 bytes |
Cloud Management & Licensing
| Remote Management Protocols | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Software Feature Set | Network Advantage |
System Performance & Capacity
| IPv4 Routing Table Entries | 3000 |
| IPv6 Routing Table Entries | 1500 |
| IPv4 Routes | 11000 |
| Multicast Scale | 1000 |
| ACL Scale Entries | 1500 |
| FNF Entries | 16000 |
| MAC Address Table Size | 16000 entries |
| VLANs Supported | 1024 |
| Switched Virtual Interfaces (SVIs) | 512 |
| QoS Hardware Queues per Port | 8 |
| Packet Buffer Size | 6MB |
| RAM | 2 GB |
| Flash Memory | 4 GB |
Compliance & Origin
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz |
| Additional Compliance Certifications | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, UL 60950-1, RoHS, EN 60950-1, FCC CFR47 Part 15 B Class A, and more |
| TAA Compliant | Yes |
| Country of Origin | Mexico |
