Products Networking Switches Cisco Catalyst C9300-24UX 2...

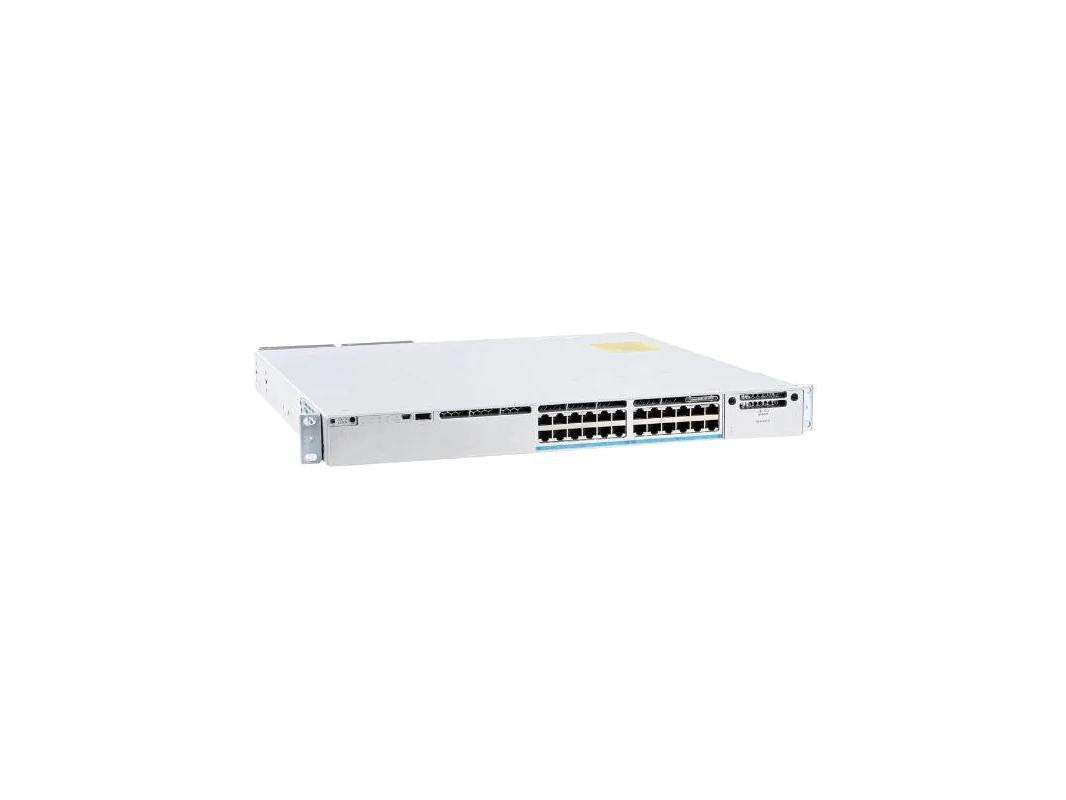

Cisco Catalyst C9300-24UX 24-Port mGig UPOE Switch, K12-Optimized

VENDOR: CISCO Mfg Part#: C9300-24UX-EDU UPC#: 889728116992
  • The Cisco Catalyst C9300-24UX K12 model is a 24-port multi-gigabit Ethernet switch engineered to deliver high-performance networking in educational environments. Featuring UPOE support and a modular-free design, it is optimized for future-ready deployments and scalability. Designed as part of Cisco’s SDA architecture, it offers resiliency, security, and superior stackability for evolving campus infrastructures.
1 1
Photo is for illustration purposes only. Actual product may be different.
$20,245.00
$20,245.00
Sale Sold out
MSRP: $28,590.00
Shipping calculated at checkout.
  • 24 x 10/100/1000Base-T multi-gigabit Ethernet ports with UPOE support
  • Fully manageable with Cisco IOS XE OS for advanced programmability
  • Built-in support for Cisco StackPower and resilient architecture features
  • Based on Cisco UADP 2.0 architecture for high throughput and future growth
  • Compact 1U design with dimensions: 1.73" x 17.5" x 18.5" (HxWxD)
  • TAA compliant and manufactured in the United States
View full details

Key Benefits

Eye-Insights
  • Optimized for educational environments with K12 designation and full UPOE power delivery
  • Engineered for scalability and resiliency with stackable architecture and redundant power support
  • Cost-effective ownership backed by Cisco’s lifetime warranty and TAA compliance

Product Overview

The Cisco Catalyst C9300-24UX K12 is a 24-port multi-gigabit Ethernet switch from Cisco’s leading 9300 Series, tailored for high-performance, scalable networking in education and enterprise environments. Designed with UPOE capabilities and full manageability, it supports powerful endpoint integration including PoE+ devices. With its stackable design and support for redundant power, the switch promotes resilient and secure network architectures. Built on Cisco’s trusted UADP 2.0 architecture, this model ensures future-ready extensibility and policy-based security. TAA compliance and lifetime warranty position it as a cost-effective and regulation-compliant solution for mission-critical applications.

Specifications

Primary Information
Network Device Type Switch
Model C9300-24UX
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Networking / Ports Qty 24
Data Link Protocol Gigabit Ethernet
Status Indicators LED
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards 802.1p, 802.1s, 802.1w
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
MTBF 214760 hours

Interfaces / Ports
Interfaces 24 port Multigigabit UPOE

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support Y
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol Syslog; RMON; SNMP
Routing Protocol RIPv1, RIPv2, RIPng
Encryption Algorithm AES (256-bit)
Interfaces 24 port Multigigabit UPOE

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 17.1 Inch
Height 1.73 Inch
Weight 8.25 Kg

Special Feature
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y
COO UNITED STATES
TAA compliance Yes
