Cisco Catalyst C9300L-24T-4X-EDU 24-Port Managed Switch

VENDOR: CISCO Mfg Part#: C9300L-24T-4X-EDU
1 3

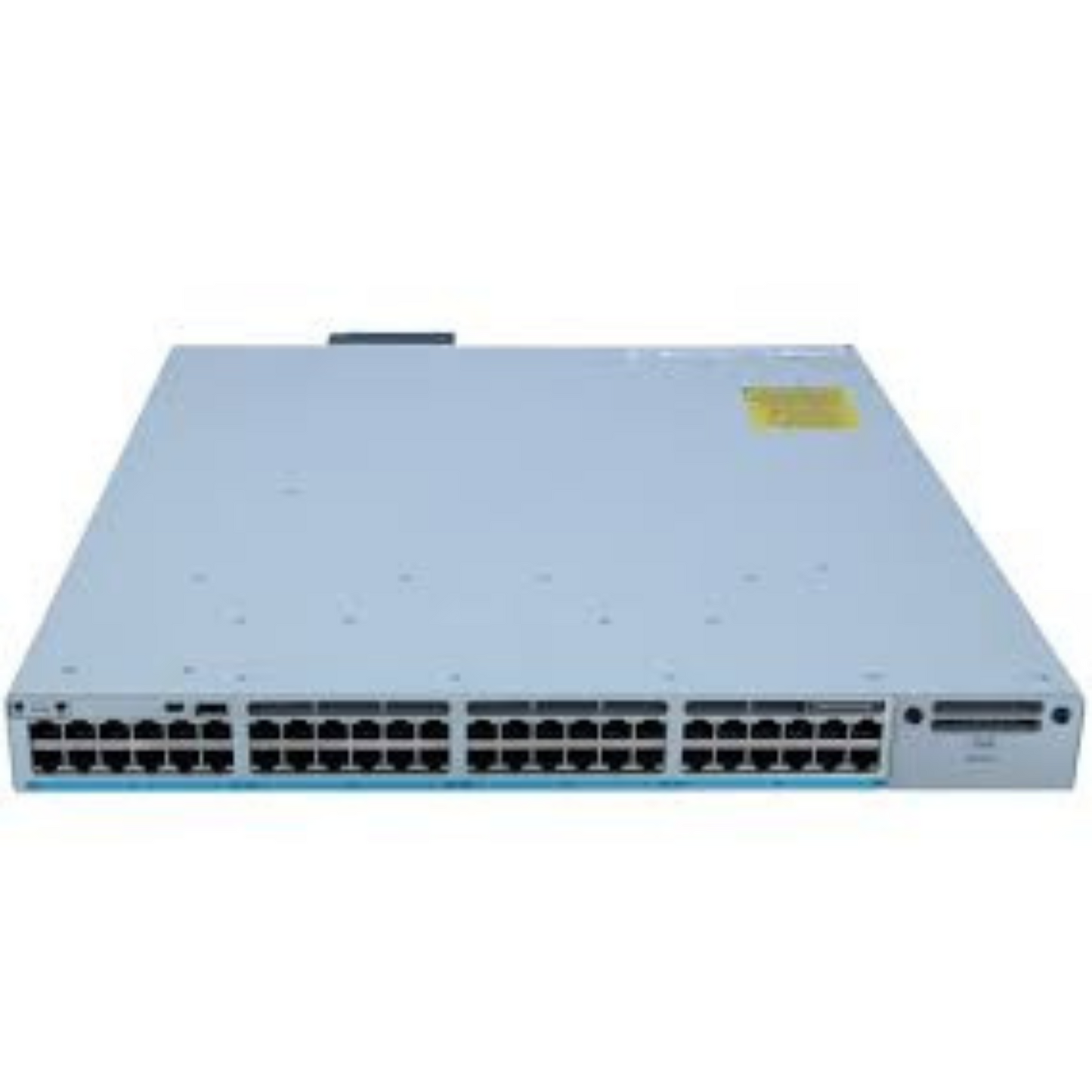

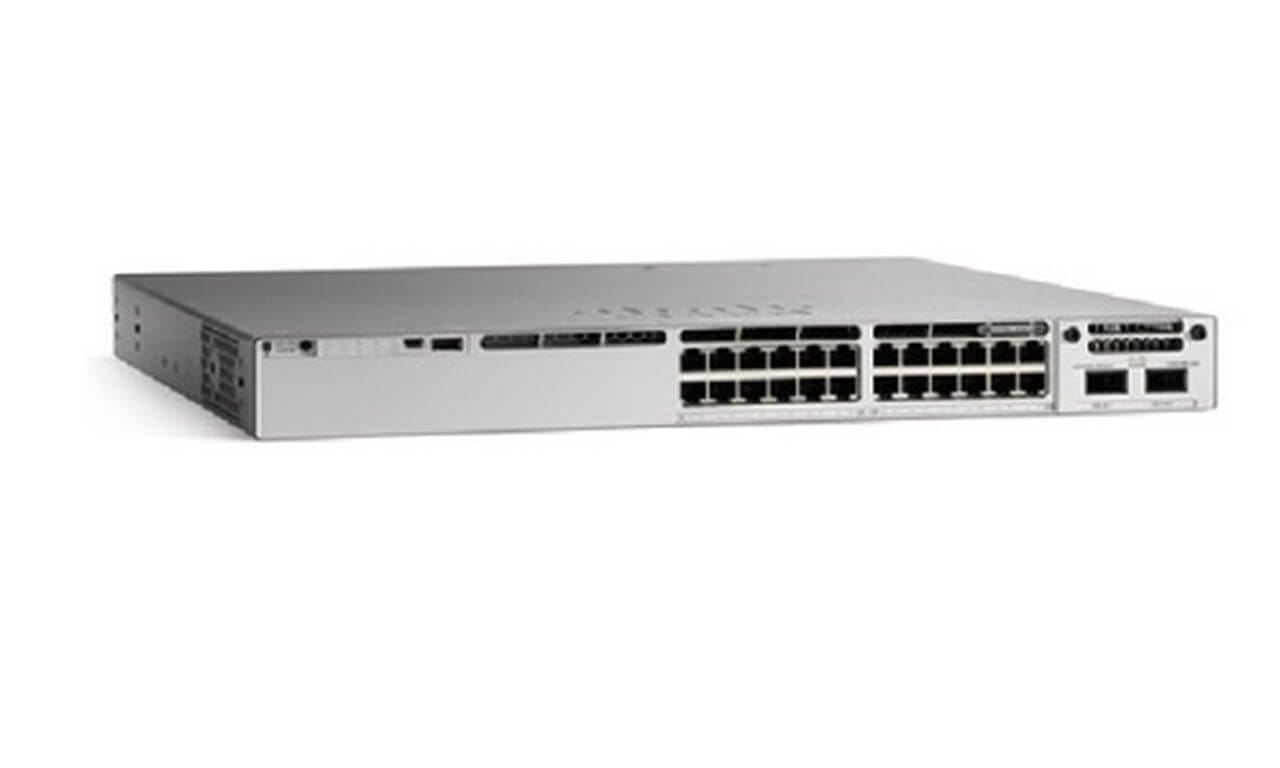

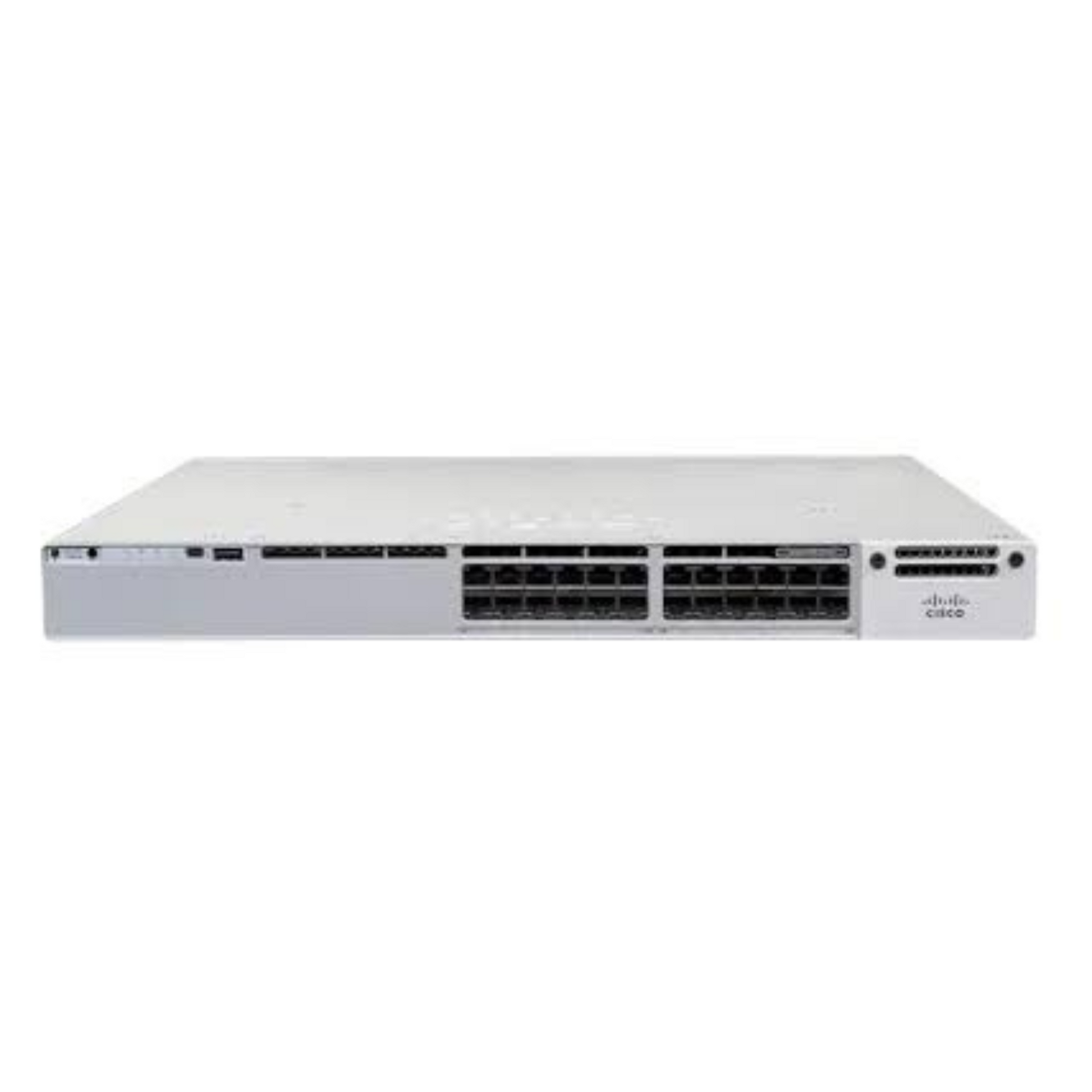

Photo is for illustration purposes only. Actual product may be different.
$6,593.00
$6,593.00
Sale Sold out
MSRP: $9,669.00
Shipping calculated at checkout.
  • 24 x 10/100/1000 Ethernet ports plus 4 x 10G SFP+ uplinks for high-speed connectivity
  • StackWise support with up to 448 Gbps switching capacity and 333.33 Mpps forwarding rate when stacked
  • Advanced routing protocols including OSPF, EIGRP, RIPng, and policy-based routing
  • Security features such as MACsec encryption and 802.1x authentication
  • Remote management over SNMP, NETCONF, RESTCONF, and CLI
  • Support for up to 32,000 MAC addresses and jumbo frames up to 9198 bytes

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides scalable performance with stacking capacity of up to 448 Gbps and support for 1000 virtual interfaces
  • K-12 pricing combined with enterprise-grade features like AES encryption and NetFlow make it ideal for educational institutions
  • Backed by Cisco’s limited lifetime warranty and next-business-day replacement, reducing downtime and TCO

Product Overview

The Cisco Catalyst C9300L-24T-4X-EDU is a high-performance, 24-port stackable Layer 3 switch engineered for enterprise-grade networking. Designed with education in mind, this K-12 optimized model supports 24 Gigabit Ethernet ports and four 10G SFP+ uplink interfaces, enabling high-speed connectivity across critical infrastructures. Cisco StackWise Technology adds stack scalability with a switching capacity of up to 448 Gbps, while the base unit delivers 128 Gbps switching throughput and a forwarding rate of 95.23 Mpps.

Compliant with a wide range of IEEE standards, the C9300L is built for resilience and reliability, offering features like policy-based routing, MACsec encryption, and support for advanced protocols such as OSPF, EIGRP, and VRRP. It holds up to 32,000 MAC entries and supports jumbo frames up to 9198 bytes. Remote management is streamlined via SNMP, CLI, NETCONF, and RESTCONF, while enhanced security is assured with 128/256-bit AES encryption and 802.1x authentication. Energy Efficient Ethernet and QoS capabilities further reinforce its suitability for high-demand environments.

Durably constructed in a rack-mountable form factor with optional power redundancy and internal hot-plug PSU, the unit is backed by a limited lifetime warranty and a next-business-day replacement service. Its extended feature set and education-focused pricing make it an ideal long-term investment for institutions seeking scalable, secure, and easy-to-manage networking solutions.

Specifications

Product Overview
Type Managed Layer 3 Stackable Switch
Form Factor Rack-mountable
Installed Power Supply 1 (internal, hot-plug)
Maximum Supported Power Supplies 2
Power Redundancy Optional
Power Provided 350 Watt
Power Requirements AC 120/230 V (50 - 60 Hz)
Switching Capacity (Standalone) 128 Gbps
Switching Capacity (Stacked) 448 Gbps
Forwarding Rate (Standalone) 95.23 Mpps
Forwarding Rate (Stacked) 333.33 Mpps
MAC Address Table Size 32,000 entries
Jumbo Frame Support 9198 bytes
RAM 8 GB
Flash Memory 16 GB
MTBF 387,700 hours
Warranty Limited lifetime warranty with next-business-day hardware replacement

Cloud Management & Licensing
Remote Management Options CLI, SNMPv1/v2c/v3, RESTCONF, NETCONF
Stacking Technology Cisco StackWise-320
Device Virtual Interfaces 1000 SVIs

Physical & Environmental
Width 17.5 in
Depth 16.1 in
Height 1.7 in
Weight 14.95 lbs
Operating Humidity 5% - 90% (non-condensing)
Storage Humidity 5% - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F

Interfaces
Total Ports 24 x 10/100/1000Base-T + 4 x 10G SFP+ uplinks
Ethernet Ports 24 x 1G RJ-45
Uplink Ports 4 x 10G SFP+
Console Ports 1 x Console RJ-45
Management Ports 1 x RJ-45 Management LAN
USB Ports 1 x USB 2.0

Advanced Security Features
Access Control 802.1x authentication, ACLs, CoPP
Encryption MACsec (128/256-bit AES)
Secure Routing Protocols OSPF, EIGRP, VRRP, RIPng
Traffic Filtering Policy-based Routing (PBR), QoS, Port ACLs

Compliance & Origin
Country of Origin China / Mexico / Vietnam
TAA Compliance Yes
Compliant IEEE Standards 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3ad (LACP), 802.1D/w/s/Q/p/x, 802.1x, 802.3bz
Certifications FCC Part 15 Class A, UL 60950-1, ICES-003 Class A, EN 55032 Class A, EN 55024, VCCI Class A, BSMI Class A, CE, RoHS
