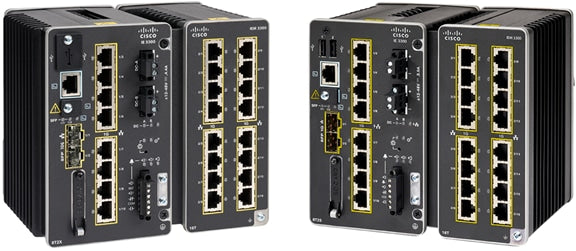

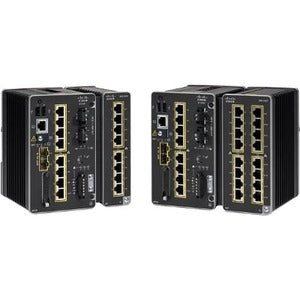

Cisco Catalyst IE3300 8-Port Modular Switch, TAA, 2 SFP, NE

VENDOR: CISCO Mfg Part#: IE-3300-8T2S-E++
1 3
Photo is for illustration purposes only. Actual product may be different.
$3,975.00
$3,975.00
Sale Sold out
MSRP: $5,829.00
Shipping calculated at checkout.
  • 8 Gigabit Ethernet RJ45 ports and 2 Gigabit SFP ports for flexible connectivity
  • Supports Layer 2 and Layer 3 protocols including OSPF, BGP, and RIP
  • Industrial-rated temperature tolerance from -40°C to 85°C (storage)
  • Dual power input support from 9.6 to 60VDC with 23W power consumption
  • Rugged, modular design with 4GB RAM and 1.5GB flash memory
  • Remote management via SNMP, RMON, and TFTP with 802.1x, TACACS+, and RADIUS authentication

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for industrial applications requiring robust, wide-temperature-range networking hardware
  • TAA-compliant for deployment in U.S. federal and government procurement projects
  • Five-year limited hardware warranty ensures investment protection and long-term reliability

Product Overview

The Cisco Catalyst IE3300-8T2S-E is engineered for demanding industrial and mission-critical environments where robust performance, modularity, and compliance are essential. This TAA-compliant Gigabit switch offers eight 10/100/1000BASE-T ports and two 100/1000 SFP uplink interfaces, allowing seamless integration with copper and fiber network segments. With its support for Layer 2 and Layer 3 protocols, including OSPF, BGP, and RIP, and compliance with 802.1p, 802.1q, and 802.1s VLAN tagging standards, the device ensures both efficient traffic management and scalability for growing industrial networks.

Built to withstand extreme conditions, the IE3300 operates in temperatures as low as -40°C and up to 85°C storage temperature, making it ideal for transportation, energy, and factory automation sectors. It offers a high availability solution with a mean time between failures (MTBF) of over 633,000 hours and redundant power input across a wide voltage range (9.6–60VDC). Equipped with 4 GB of RAM and 1.5 GB of flash storage, it supports SNMP, RMON, and TFTP for robust remote management. A five-year limited hardware warranty ensures long-term value and reliability. The compact footprint further facilitates deployment in space-constrained environments.

Specifications

Product Overview
Product Type Managed Industrial Ethernet Switch
Model IE-3300-8T2S-E
Form Factor DIN Rail Mountable
Weight 3.8 lbs.
Power Consumption (Operational) 23 Watt
Power Requirements 9.6 to 60VDC
RAM 4 GB
Flash Memory 1.5 GB
MTBF 633420 hours
Warranty Five-year limited hardware warranty

Wireless Features
Wi-Fi

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliant Yes
Compliant Standards 802.1p, 802.1q, 802.1s
Certifications IEC 61850, IEEE 1613, UL 508, CSA C22.2 No 142

Advanced Security Features
Authentication Methods 802.1X, TACACS+, RADIUS
Supported Security Features Port Security, DHCP Snooping, Dynamic ARP Inspection
Access Control Lists (ACLs) Yes
Firewall Support No (switch only)
Intrusion Detection/Prevention No (switch only)

Interfaces
10/100/1000BASE-T Ports 8
SFP Ports 2
Interface Types 10/100/1000 RJ-45, 100/1000 SFP, RS-232 via RJ-45, USB Mini Type B
Data Transfer Rate 1 Gbps
MAC Address Table Size 16K
Jumbo Frame Support 8996 bytes
Media Layer Supported Layer 2, Layer 3
Data Link Protocol Gigabit Ethernet
Uplink Ports 2

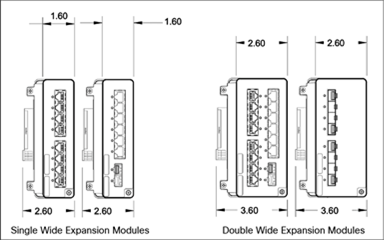

Physical & Environmental
Width 3.6 Inch
Depth 5.3 Inch
Height 6 Inch
Minimum Operating Temperature -40 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 85 °C
Humidity Range (Operating)
Cooling Type Fanless

Cloud Management & Licensing
Remote Management Protocols SNMP, RMON, TFTP
Management Interface Web UI, CLI, Telnet, SSH
Cloud-Based Management Cisco DNA Center (optional)
Licensing Model DNA Essentials (optional)
