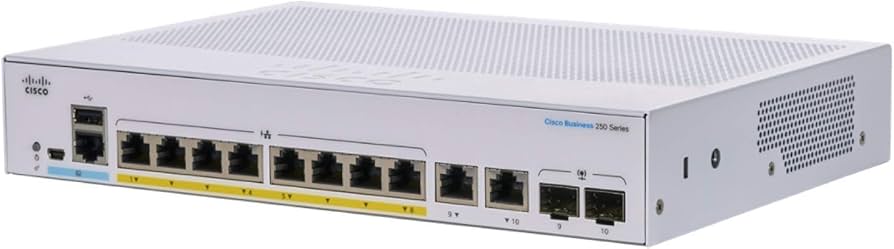

Cisco CBS250-8FP-E-2G Smart 8-Port GE PoE+ Switch (Remanufactured)

VENDOR: CISCO Mfg Part#: CBS250-8FPE2GNA-RF
1 3
Photo is for illustration purposes only. Actual product may be different.
$269.00
$269.00
Sale Sold out
MSRP: $289.00
Shipping calculated at checkout.
  • - 8-port Gigabit Ethernet with full 120W PoE+ support
  • - 2x Gigabit copper/SFP combo uplink ports
  • - Layer 2 & Layer 3 support: 802.1d, 802.1w, 802.1s, with static routing
  • - ARM processor with 512MB RAM and 256MB flash memory
  • - Remote management via SNMP, Syslog, and DHCP
  • - Rack-mountable form factor with jumbo frame support up to 9K bytes

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Enables cost-effective deployment of powered devices with 120W PoE+ capability across 8 ports
  • - Combines smart Layer 2/3 features and remote manageability ideal for scalable SMB networks
  • - High reliability with an MTBF of over 1.7 million hours and wide temperature tolerances for dependable operation

Product Overview

The Cisco CBS250-8FP-E-2G is a feature-rich, smart managed switch offering 8 Gigabit Ethernet ports with full PoE+ support and a 120-watt power budget, enabling connection and powering of IP phones, cameras, and access points. Its combo uplink ports offer network expansion flexibility using copper or SFP fiber modules.

It supports Layer 2 and Layer 3 protocols, including 802.1d/w/s and static routing, alongside jumbo frame handling, backed by a 512MB RAM / 256MB flash memory setup and ARM processor. With remote management via SNMP, Syslog, and DHCP, the switch is built for streamlined operations in modern SMB networks.

Featuring an MTBF of over 1.7 million hours and broad environmental tolerances (-5°C to 50°C), this remanufactured, TAA-compliant rack-mountable PoE switch delivers commercial-grade reliability with strong cost-efficiency.

Specifications

Product Overview
Product Type Smart Managed PoE+ Switch
Model CBS250-8FP-E-2G
Form Factor Rack-Mountable
Mounting Type Rack-mountable / Desktop
Processor Type ARM
RAM (Installed) 512 MB
Flash Memory (Installed) 256 MB
Power Device Type Internal Power Supply
Power Requirements 100 to 240V AC, 50 to 60 Hz
PoE Power Budget 120 W
PoE Support PoE+
MAC Address Table Size 8,000 entries
Jumbo Frame Support Up to 9,000 bytes
MTBF 1,706,649 hours
Weight 1.53 kg

Wireless Features

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Standards Compliance IEEE 802.1d, 802.1w, 802.1s

Advanced Security Features
Authentication Method RADIUS
Switching Type Layer 2 / Layer 3 Lite with Static Routing
Routing Protocols Supported Static Routing

Interfaces
Total Ports 10
Ethernet Ports 8 x 10/100/1000 PoE+
Combo Uplink Ports 2 x Gigabit Copper/SFP Combo
Console Port 1 x RJ45
USB Port 1 x USB Type-A
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet

Physical & Environmental
Width 10.56 in (268.3 mm)
Depth 7.28 in (185.0 mm)
Height 1.73 in (44.0 mm)
Minimum Operating Temperature -5 °C
Maximum Operating Temperature 50 °C
Minimum Storage Temperature -25 °C
Maximum Storage Temperature 70 °C
Humidity (Operating) 10% to 90% (non-condensing)

Cloud Management & Licensing
Remote Management Protocols SNMP, Syslog, DHCP
Management Interface Cisco Business Dashboard / Web UI / CLI
