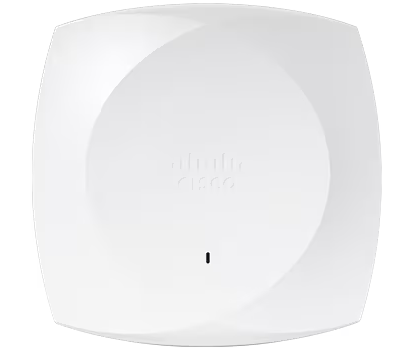

Cisco CW9176D1 Tri-Radio Wi-Fi 6E Access Point, UWB, 4x4 MU-MIMO

VENDOR: CISCO Mfg Part#: CW9176D1-CFG UPC#: 889728625852
  • Cisco Wireless 9176D1(W7,3 radio,3 band 4x4,UWB),Global
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,206.00
$2,206.00
Sale Sold out
MSRP: $3,949.00
Shipping calculated at checkout.
  • Tri-radio support across 2.4 GHz, 5 GHz, and 6 GHz bands with Wi-Fi 6E (802.11be) compliance
  • 4x4 MU-MIMO architecture for high-efficiency wireless performance
  • Multigigabit Ethernet (up to 10 Gbps) and USB 2.0 interfaces
  • Integrated ultra-wideband (UWB) radio for location-based services
  • 16 GB flash storage and 4 GB DRAM for demanding enterprise needs
  • Compact indoor form factor: 9.5" x 9.5" x 2.0"

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Future-proof with tri-band support and latest Wi-Fi 6E (802.11be) standard for optimal performance
  • Ideal for enterprise and high-density environments with 4x4 MU-MIMO and UWB capabilities
  • Protected by Cisco’s limited lifetime warranty for dependable long-term operation

Product Overview

The Cisco CW9176D1 access point supports Wi-Fi 6E across 2.4 GHz, 5 GHz, and 6 GHz bands with tri-radio functionality. Equipped with 4x4 MU-MIMO and an integrated UWB radio, it delivers efficient, concurrent connections ideal for high-density applications. A 10 Gbps Ethernet interface, along with USB and management ports, provides flexible deployment. With 4 GB DRAM and 16 GB flash memory, this access point supports complex wireless configurations while maintaining performance. A limited lifetime warranty backs sustained reliability in enterprise environments.

Specifications

Product Overview
Product Type Access Point
Model CW9176D1
Form Factor Ceiling or wall mountable
Environment Indoor
Power Requirements 802.3bt PoE, 44 – 57 V DC
Power Consumption (Maximum) 31.1 W
RAM / Total Installed Size 4 GB
Flash Memory 16 GB
MIMO Type 4x4 MU-MIMO
Warranty Limited lifetime warranty

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax/be (Wi-Fi 6E and Wi-Fi 7 Ready)
Frequency Bands Supported 2.4 GHz, 5 GHz, 6 GHz
Radio Count Tri-radio
Antenna Type Internal directional antennas
Integrated UWB Radio Yes
Spatial Streams 4 spatial streams per radio
Bandwidth per Radio Up to 160 MHz
Maximum Aggregate Throughput 5.9 Gbps

Compliance & Origin
Country of Origin
TAA Compliance
Certifications FCC, UL, ICES, CE, RCM, RoHS

Advanced Security Features
Security Standards WPA3, WPA2-Enterprise, 802.1X authentication
Integrated Security Hardware Trusted Platform Module (TPM)
Wireless Intrusion Detection/Prevention (WIDS/WIPS) Supported
Rogue AP Detection Yes
Content Filtering Available through cloud management (Meraki)
Automatic Firmware Updates Yes

Interfaces
Interface Types 1 x 10GBASE-T (Multigigabit Ethernet), 1 x 100/1000 BASE-T, 1 x USB 2.0 Type A, 1 x Console Port (RJ-45)
Port Count 3
Data Transfer Rate 10 Gbps
Supported Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10-Gigabit Ethernet
USB Interface USB 2.0 Type A
Console Port RJ-45

Physical & Environmental
Width 9.5 in (241 mm)
Depth 9.5 in (241 mm)
Height 2.0 in (51 mm)
Weight 2.6 lbs (1.17 kg)
Operating Temperature 0°C to 40°C
Storage Temperature -30°C to 70°C
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)
Mounting Options Ceiling mount, Wall mount (brackets sold separately)

Cloud Management & Licensing
Management Interface Cisco Meraki Dashboard or Cisco DNA Center (Cisco Catalyst mode)
Licensing Model Subscription-based (Meraki or DNA license required)
Cloud Features Centralized cloud management, traffic analytics, remote monitoring, zero-touch provisioning
