Cisco CW9176I Tri-Band Wi-Fi 6E Access Point with UWB, Global

VENDOR: CISCO Mfg Part#: CW9176I-CFG UPC#: 889728625821
  • Cisco Wireless 9176I(W7,3 radio,3 band 4x4,UWB),Global
1 1

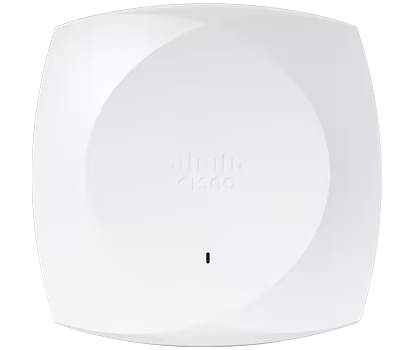

Photo is for illustration purposes only. Actual product may be different.
$1,969.00
$1,969.00
Sale Sold out
MSRP: $3,525.00
Shipping calculated at checkout.
  • Supports tri-band operation: 2.4 GHz, 5 GHz, and 6 GHz
  • Advanced 4x4 MU-MIMO for high-density environments
  • Compatible with 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7)
  • Three Ethernet ports supporting up to 10 Gbps multigigabit speeds
  • Integrated Ultra-Wideband (UWB) radio for location-based services
  • Includes 4 GB RAM and 16 GB flash memory

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Future-ready with support for Wi-Fi 7 (802.11be) across tri-band operation
  • Enhanced precision and IoT capability with integrated Ultra-Wideband (UWB) radio
  • Multigigabit Ethernet uplinks (up to 10 Gbps) ensure high-speed and scalable deployment

Product Overview

The Cisco CW9176I Global version is an advanced tri-band access point supporting Wi-Fi 7 (802.11be), engineered for high-performance indoor wireless networks. It operates across the 2.4 GHz, 5 GHz, and 6 GHz bands with 4x4 MU-MIMO omni antennas, delivering reliable performance in high-density scenarios. With 16 GB flash and 4 GB DRAM, alongside multigigabit (up to 10 Gbps) Ethernet and an integrated UWB radio, it supports next-gen connectivity and advanced location services. Ideal for enterprises and campuses, it is backed by a limited lifetime warranty.

Specifications

Product Overview
Product Type Access Point
Model CW9176I
Form Factor Ceiling mountable / Wall mountable
Environment Indoor
Weight 1.75 kg (3.86 lb)
Power Requirements PoE+ (802.3at) / Cisco Universal PoE (UPOE)
Power Consumption (Max) 31.5 W
Flash Memory 16 GB
RAM 4 GB
Service & Support Type Limited lifetime warranty

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Frequency Band 2.4 GHz; 5 GHz; 6 GHz
MIMO Type 4x4 MU-MIMO
Antenna Type Internal Omni-directional antennas
Radio Count Tri-radio
Max Supported Clients Up to 200 per radio
Integrated UWB Support Yes
Modulation Types 1024-QAM, OFDMA

Compliance & Origin
Networking Compliant Standards 802.11 a/b/g/n/ac/ax/be
Country of Origin
TAA Compliance
Certifications UL 60950-1, IEC 60950-1, RoHS, WEEE, EN 60601-1-2

Advanced Security Features
Wireless Security WPA3, WPA2-Enterprise, 802.1X
Rogue AP Detection Yes
Integrated IDS/IPS Yes, with DNA Center integration
Content Filtering Yes (requires Cisco Umbrella subscription)
Secure Boot Supported
Malware Protection Cisco Talos backed threat intelligence (license required)

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Data Transfer Rate 10 Gbps
Networking / Ports Qty 3
Uplink Interface 1x Multigigabit Ethernet (2.5G/5G/10GBase-T)
Secondary Interface 1x 1 Gbps Ethernet
Console Port 1x USB-C
Power over Ethernet (PoE) Supported

Physical & Environmental
Width 9.5 Inch (241.3 mm)
Depth 9.5 Inch (241.3 mm)
Height 2.0 Inch (50.8 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 93% (non-condensing)
Mounting Options Ceiling, Wall

Cloud Management & Licensing
Management Interface Cisco Meraki Dashboard / Cisco Catalyst Center
Cloud Management Supported via Cisco Meraki or DNA Center
Required License Cisco DNA licenses for advanced features
Software Updates Included with active license
