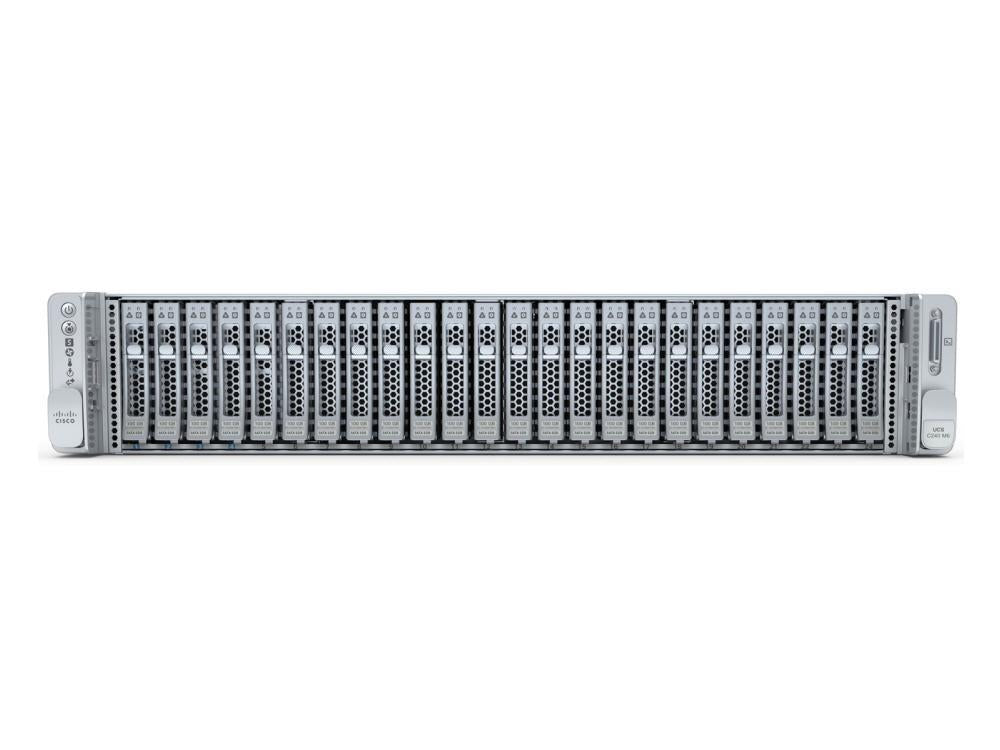

Cisco HyperFlex All Flash Edge 245 Full Capacity M6 System

VENDOR: CISCO Mfg Part#: HXAF-E-245-M6SX
1 1
Photo is for illustration purposes only. Actual product may be different.
$5,770.00
$5,770.00
Sale Sold out
MSRP: $10,435.00
Shipping calculated at checkout.
  • - Full capacity system without CPU, memory, drives, PCIe cards, or power supply
  • - Gigabit Ethernet connectivity for high-speed networking
  • - TAA compliance supports regulated government and public sector deployments
  • - Country of origin: China / United States
  • - Three-year parts coverage included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Allows full customization for specific business or deployment needs, reducing unnecessary component costs
  • TAA compliance makes it suitable for federal and public sector procurement
  • Supported by a robust three-year parts warranty, providing long-term peace of mind

Product Overview

The Cisco HyperFlex All Flash Edge 245 Full Capacity M6 System is a customizable platform ideal for flexible edge and enterprise deployments. It excludes CPU, memory, drives, PCIe cards, and power supply, allowing tailored component integration. Featuring Gigabit Ethernet support and TAA compliance, the system is suitable for both commercial and public sector environments. Sourced from CHINA / UNITED STATES, it includes a three-year parts warranty, ensuring long-term reliability for mission-critical applications.

Specifications

Product Overview
Product Type Hyperconverged Server System (Barebones)
Product Series Cisco HyperFlex Edge
Model HXAF-E-245-M6SX
Form Factor 2U Rack-mountable
Number of Nodes 1 (Expandable to 3‒4 nodes for HA configurations)
Power Supply Included No (Sold separately)
CPU Included No (User configurable)
Memory Included No (User configurable)
Drive Bays Up to 12 x 2.5" SATA/SAS/NVMe hot-swappable drives
Weight (Maximum) 36.5 lbs (16.6 kg)
Power Requirements Dual redundant hot-swappable PSUs supported (not included)

Physical & Environmental
Dimensions (H x W x D) 3.4 in x 17.2 in x 29.8 in (86.36 mm x 437.9 mm x 756.9 mm)
Chassis Type Rack-mountable, 2U
Operating Temperature 10°C to 35°C (50°F to 95°F)
Non-Operating Temperature -40°C to 65°C (-40°F to 149°F)
Operating Humidity 10% to 90% non-condensing
Non-Operating Humidity 5% to 93% non-condensing

Cloud Management & Licensing
Management Interface Cisco Integrated Management Controller (CIMC)
Cloud Integration Cisco Intersight (remote management and monitoring)
Licensing Model Cisco Smart Licensing
Included Software Cisco HyperFlex Data Platform (must be licensed separately)
Software-defined Storage Yes, with HXDP (not included by default)
Management Access Protocols Redfish, IPMI 2.0, SNMP, SSH

Interfaces
Ethernet Ports 2 x 10GBase-T ports (onboard), 1 x 1G management port
Expansion Slots 2 x PCIe Gen4 Half-height Half-length (HHHL) slots
OCP NIC Slot 1 x OCP 3.0 slot for modular LAN connectivity
USB Ports 2 x USB 3.0 (front), 1 x USB 2.0 (rear)
VGA Port 1 x VGA (rear)
Serial Port 1 x DB-9 serial port (rear)
Dedicated Management Port 1 x RJ-45 for CIMC management

Compliance & Origin
Country of Origin CHINA / UNITED STATES
TAA Compliant Yes
Certifications RoHS, ENERGY STAR (pending), UL, FCC Class A
Warranty 3-Year Cisco Smart Net Total Care (Parts only)

Advanced Security Features
Secure Boot Yes
TPM Support TPM 2.0 module (optional)
Drive Encryption Support Self-encrypting drives supported (optional)
Chassis Intrusion Detection Yes
Firmware Authentication Cisco Secure Boot with hardware root of trust
