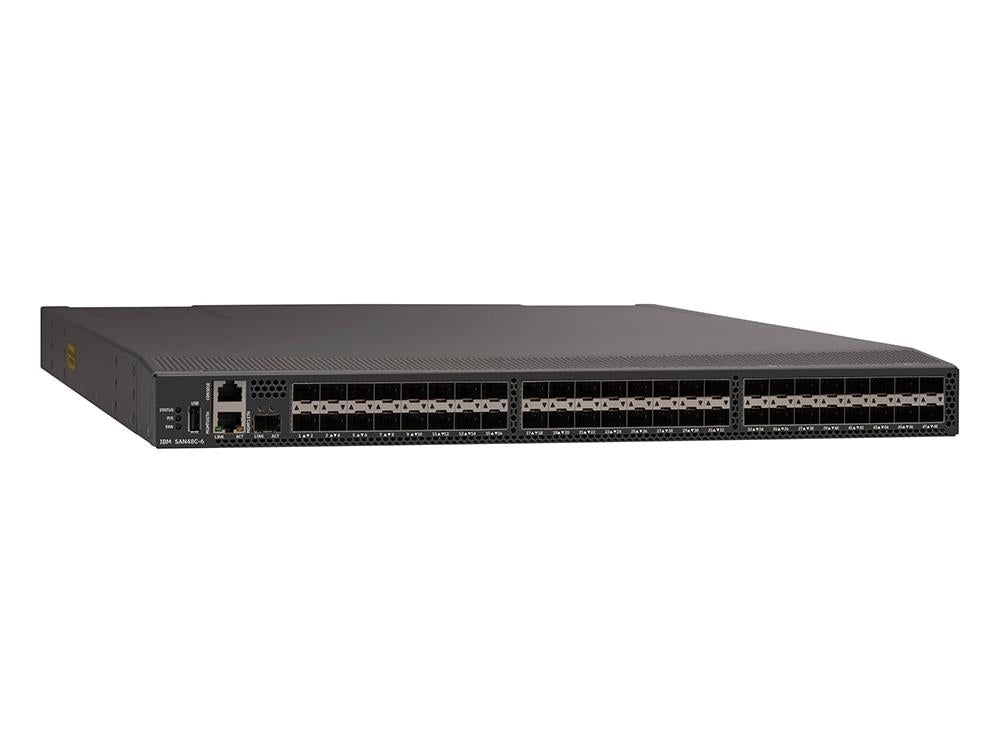

Cisco IBM SAN48C-6 32G 48-Port FC Fabric Switch with 48 Optics

VENDOR: CISCO Mfg Part#: 02JD728
1 3
Photo is for illustration purposes only. Actual product may be different.
$33,432.00
$33,432.00
Sale Sold out
MSRP: $100,892.00
Shipping calculated at checkout.
  • 48 Fibre Channel ports supporting 32 Gbps for high-speed data transfer
  • Includes 48 integrated 32G optical transceivers
  • 1RU rack-mountable form factor for space efficiency
  • Interfaces: Fibre Channel, RJ-45, RS-232, and USB for flexible connectivity
  • Remote management via SNMP with LED status indicators
  • 650W power supply with 100–240 VAC input range

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Equipped with 48x 32Gbps FC ports and optics, it provides high bandwidth for demanding SAN environments
  • Designed for SAN consolidation, lowering total cost of ownership while maximizing efficiency
  • Meets TAA compliance requirements, making it suitable for government and regulated sector procurement

Product Overview

The Cisco IBM SAN48C-6 is a 48-port Fibre Channel switch designed for high-performance SAN environments. With 32 Gbps per port and integrated 32G optics, it ensures rapid and reliable data flow. The 1RU form factor, versatile connectivity including Fibre Channel, RJ-45, RS-232, and USB, and SNMP remote management make it ideal for tight IT infrastructures. Operating within a temperature range of 0–40°C and storing safely from -40–70°C, it is robust and deployment-ready. TAA compliance and 650W power support round out its enterprise-grade feature set, designed for cost-effective SAN consolidation.

Specifications

Product Overview
Product Type Fibre Channel Switch
Model SAN48C-6
Manufacturer Part Number 02JD728
Form Factor 1RU
Weight Approximately 28.5 lbs (12.93 kg)
Power Supply Type Internal Hot-Swappable Power Supplies
Power Consumption (Max) 650 Watts
Power Supply Voltage 100 to 240 VAC
Connectivity Technology Wired
Status Indicators LED Indicators
Product Family Cisco MDS 9000 Series
Data Link Protocol Fibre Channel

Wireless Features
Wireless Support No

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CSA, CE Marking, FCC Class A, ICES, VCCI, RoHS
Safety Standards IEC 60950-1, EN 60950-1
EMI Standards EN55022 Class A, EN55024

Advanced Security Features
Access Control Role-Based Access Control (RBAC)
AAA Support TACACS+, RADIUS, LDAP
Security Protocols SSH, SNMPv3, HTTPS
Zoning Capabilities Hardware-enforced zoning
Fabric Binding Yes

Interfaces
Total Ports 52
Fibre Channel Ports 48 x 32 Gbps SFP+
Management Ports 1 x 100/1000 Ethernet RJ-45, 1 x RS-232 (RJ-45 console), 1 x USB
Interface Types Fibre Channel, RJ-45, RS-232, USB
Data Transfer Rates 32 Gbps per port
Optics Included 48 x 32G SFP+ Transceivers
Expansion Slots 4 x SFP+ expansion slots

Physical & Environmental
Width 17.3 inches (439.42 mm)
Depth 22.3 inches (566.42 mm)
Height 1.72 inches (43.7 mm)
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -40°C to 70°C
Relative Humidity (Operating) 10% to 85% non-condensing
Relative Humidity (Storage) 5% to 95% non-condensing
Cooling Front-to-back airflow; redundant fans

Cloud Management & Licensing
Management Interface SNMP, CLI, Cisco DCNM (Data Center Network Manager)
Remote Management Protocols SNMP v1/v2/v3, Telnet, SSH, HTTP/HTTPS
Licensing Model Port-based license; includes base license for all ports
Included Software Cisco MDS NX-OS with base features
Cloud Monitoring Support Support via Cisco Data Center Network Manager (DCNM)
