Cisco IBM SAN48C-7 64G FC Switch with 24 Active Ports + 24 64G Optics

VENDOR: CISCO Mfg Part#: 00NR215
1 1

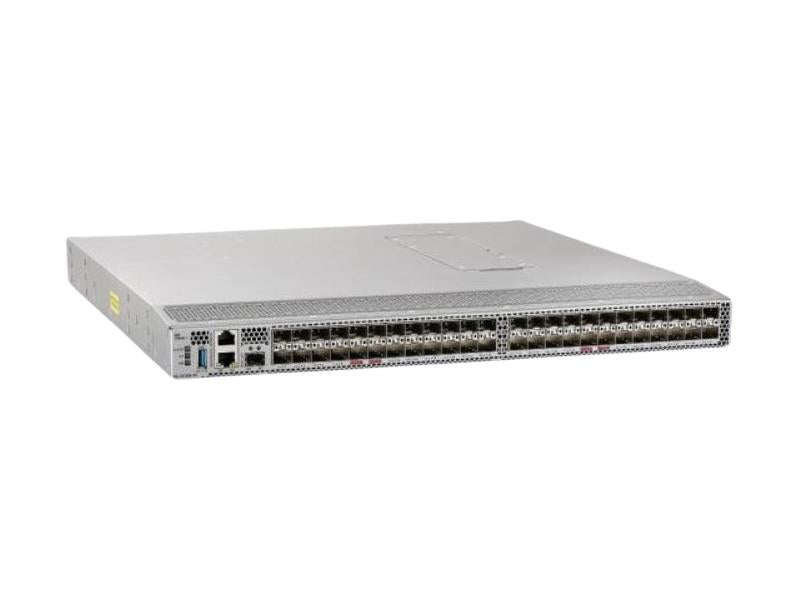

Photo is for illustration purposes only. Actual product may be different.
$29,149.00
$29,149.00
Sale Sold out
MSRP: $87,965.00
Shipping calculated at checkout.
  • 24 active ports with 24 included 64G optics for high-density connectivity
  • 64 Gbps maximum data transfer rate supporting Gigabit Ethernet protocols
  • Compact 1RU form factor; dimensions: 17.299"W x 18"D x 1.72"H
  • Security features include secure-boot and anti-counterfeiting technology
  • Weight: 9.9 kg; designed for rack-optimized installation
  • One-year IBM On-Site Limited, 24×7 same-day maintenance support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-high-speed 64 Gbps Fibre Channel connectivity for demanding SAN infrastructures
  • Includes 24 x 64G optics, reducing additional hardware costs and simplifying deployment
  • Backed by IBM's premium 24x7 same-day on-site support for uninterrupted operations

Product Overview

The IBM SAN48C-7 64G FC Switch by Cisco is built for high-performance SAN environments, featuring 24 active ports and 24 x 64G optics for advanced data throughput. Supporting 64 Gbps data transfer speed and Gigabit Ethernet protocol, it efficiently handles large-scale workloads. The 1RU compact form factor with measurements of 17.299"W x 18"D x 1.72"H and 9.9 kg weight ensures data center optimization. Security-centric features like secure-boot and anti-counterfeiting technology, combined with IBM’s 24×7 same-day support, make it ideal for mission-critical operations. Manufactured in Mexico and TAA-compliant, this switch meets enterprise and federal IT standards.

Specifications

Product Overview
Product Type Fibre Channel Switch
Model SAN48C-7
Manufacturer Part Number 00NR215
Form Factor 1RU
Chassis Type Rack-mountable
Weight 9.9 kg
Power Requirements AC 100-240V, 50/60 Hz
Redundant Power Supplies Yes, hot-swappable
Power Supply Type Dual power supplies included

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
EMC Standards FCC Part 15 Class A, ICES-003
Safety Certifications UL, CSA, CE Marking
WEEE Compliance Yes

Advanced Security Features
Secure Boot Support Yes
Anti-Counterfeit Technology Yes
Role-Based Access Control Yes
RADIUS/TACACS+ Authentication Yes
Encrypted Management Sessions Yes (via SSH and HTTPS)

Interfaces
Total Ports 48 Fibre Channel ports + 4 QSFP ports (upgradeable)
Active Ports 24 active Fibre Channel ports
SFP+ Ports 24 x 64G FC optics included
Maximum Ports Supported 52
Data Transfer Rate per Port 64 Gbps
Data Link Protocol 64G/32G/16G Fibre Channel auto-negotiation
Port Speed Scalability 16/32/64 Gbps
Port Expansion Capability Yes, via software license
Backplane Bandwidth 4.8 Tbps
Aggregate Throughput 3.6 Tbps

Physical & Environmental
Dimensions (W x D x H) 17.299 x 18 x 1.72 in
Operating Temperature Range 32°F to 104°F (0°C to 40°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity Range 10% to 90% (non-condensing)
Storage Humidity Range 5% to 95% (non-condensing)
Cooling Front-to-back airflow, redundant fans
Acoustic Noise 59 dB typical

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, SNMP, GUI, REST API
Remote Management Protocols SSH, Telnet, SNMP v1/v2c/v3
Software Licensing Base license included, port upgrades via license
Cloud Compatibility Compatible with IBM SAN cloud orchestration and Cisco DCNM
