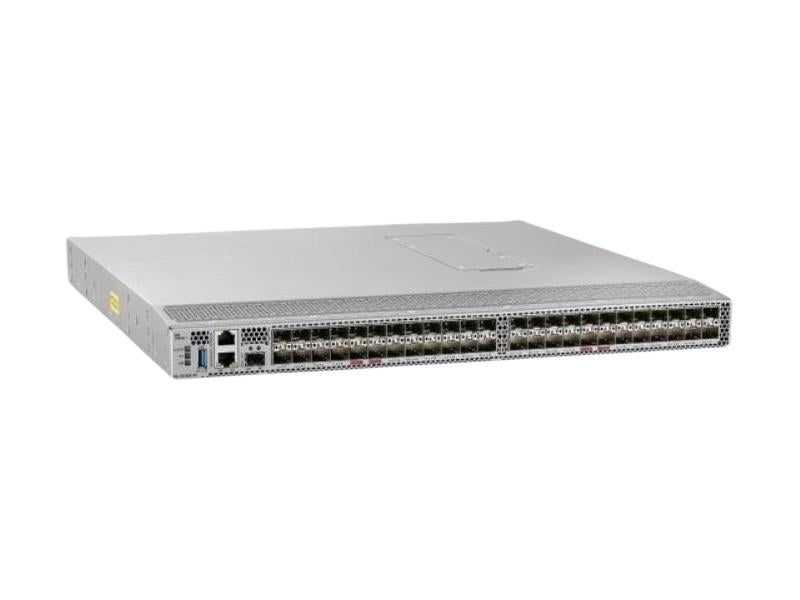

CISCO IBM SAN48C-7 64G FC Switch with 24 Active Ports & 32G Optics

VENDOR: CISCO Mfg Part#: 00NR217
  • No_media_available
1 0
Photo is for illustration purposes only. Actual product may be different.
$18,713.00
$18,713.00
Sale Sold out
MSRP: $56,472.00
Shipping calculated at checkout.
  • - 64 Gbps data transfer rate for high-speed Fibre Channel connectivity
  • - 24 active ports with 24 included 32G optics
  • - 1RU compact form factor ideal for data center environments
  • - Secure-boot and anti-counterfeiting technology for enhanced security
  • - TAA compliance and country of origin: Mexico
  • - 52 total networking ports for scalable deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers preinstalled 32G optics and 24 active ports for immediate high-performance deployment
  • Includes advanced security features such as secure-boot and anti-counterfeiting technology
  • Includes 24×7 IBM On-Site Limited support, ensuring minimized downtime and responsive service

Product Overview

The CISCO IBM SAN48C-7 64G Fibre Channel Switch offers 24 active ports and 24 preinstalled 32G optics, supporting 64 Gbps data throughput for demanding storage environments. With a compact 1RU form factor and 52 total ports, it is optimized for data center density. Key technologies include secure-boot and anti-counterfeiting features to enhance security. The unit complies with TAA standards and includes 24×7 IBM On-Site Limited support for one year, making it a reliable investment for scalable SAN infrastructure.

Specifications

Product Overview
Product Type Fibre Channel Switch
Model SAN48C-7
Form Factor 1RU
Weight 9.9 Kg
Power Requirements AC 100-240V, 50/60 Hz
Power Supply Redundancy Dual, hot-swappable
Power Consumption (typical) 137 Watts
Chassis Fixed configuration chassis

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Certifications FCC Class A, UL 60950-1/62368-1, CE Mark, ICES-003 Class A, VCCI Class A

Advanced Security Features
Secure Boot Yes
Anti-Counterfeiting Technology Yes
Role-based Access Control (RBAC) Yes
Encrypted Management Sessions SSH, HTTPS
SNMPv3 Support Yes

Interfaces
Total Number of Ports 52
Active Ports 24
Optics Installed 24 x 32G FC SFP+
Port Type Fibre Channel
Port Speed 64 Gbps (line-rate)
Expansion Slots Up to 48 ports enabled via POD licenses
Fibre Channel Ports 48 x SFP+, 4 x QSFP-DD breakout capable
Data Link Protocol Fibre Channel
Aggregate Switch Bandwidth 4 Tbps
Forwarding Latency < 800 ns for 64G FC

Physical & Environmental
Width 17.299 Inch
Depth 18 Inch
Height 1.72 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 10% to 95% (non-condensing)
Cooling Fan trays, front-to-back airflow
Heat Dissipation 467.9 BTU/hr
Rack Mountable Yes

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, SNMPv3, GUI via Cisco DCNM
Cloud Support Cisco Data Center Network Manager (optional)
Licensing Model Port On Demand (POD)
License Included 24 active ports licensed
Smart Licensing Supported
