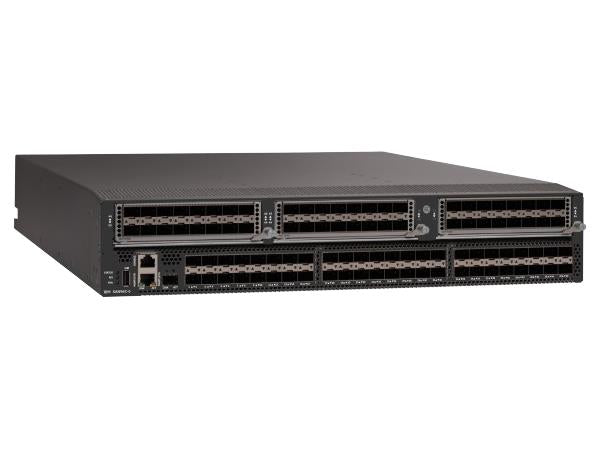

CISCO IBM SAN96C-6 32G 96-Port FC Fabric Switch, FRU

VENDOR: CISCO Mfg Part#: 02JD721
1 3
Photo is for illustration purposes only. Actual product may be different.
$38,491.00
$38,491.00
Sale Sold out
MSRP: $116,158.00
Shipping calculated at checkout.
  • 96 SFP+ Fibre Channel ports delivering 32 Gbps high-speed connectivity
  • Compact 1RU form factor ideal for space-constrained environments
  • Integrated interfaces: USB, RS-232, Ethernet, and Fibre Channel
  • Remote management support via SSH, SNMPv3, and HTTPS
  • Strong security measures with AES encryption and RADIUS/TACACS+ authentication
  • 600W power supply with broad voltage input range (100–240 VAC)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High port density (96 SFP+) enables scalable and flexible enterprise SAN configurations
  • Robust remote management and security protocols improve administrative efficiency and data protection
  • TAA compliance and industrial-grade temperature range ensure suitability for government and mission-critical environments

Product Overview

The CISCO IBM SAN96C-6 32G 96-Port FC Fabric Switch is a high-performance Fibre Channel solution for enterprise storage networks. Designed for data-intensive environments, it supports 96 SFP+ ports with 32 Gbps throughput in a compact 1RU chassis. Comprehensive remote access via SSH, SNMPv3, and HTTPS and security protocols such as AES encryption and TACACS+ make it both powerful and secure. Additional features include dual 10/100/1000BASE-T Ethernet ports, next-gen ASIC hardware, and TAA compliance, making it an ideal solution for high-demand storage infrastructures.

Specifications

Product Overview
Product Type Fibre Channel Fabric Switch
Model SAN96C-6
Form Factor 1RU
Weight 20.2 lbs
Power Requirements 100 to 240 VAC
Power Supply Redundant Hot-swappable Power Supplies
Power Consumption 600 Watt
Chassis Type Rack-mountable
Connectivity Technology Wired

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliant Standards FCC Class A, UL/CSA/IEC 60950-1, RoHS, CE Marking
Certifications UL, CSA, CE, RoHS

Advanced Security Features
Encryption Algorithm AES
Authentication Methods RADIUS, TACACS+
Access Control Role-Based Access Control (RBAC)
Secure Management Access HTTPS, SSH v2, SNMPv3
Port Security Yes
Fabric Binding Yes
Trust Anchor Yes (Cisco Secure Boot and Secure Unique Device Identifier)

Interfaces
Interface Types 96 x 32Gbps Fibre Channel; 2 x 10/100/1000BASE-T Ethernet; 1 x RS-232 console; 1 x USB
SFP+ Ports 96
10/100/1000BASE-T Ports 2
Total Port Count 100
Supported Transceivers 32GFC SFP+, 16GFC SFP+, 8GFC SFP+
Port Speed 1/2/4/8/10/16/32 Gbps auto-negotiation per port
Console Port RS-232
USB Ports 1 x USB (Type A)
Status Indicators LED Indicators

Physical & Environmental
Width 17.3 inch
Depth 22.3 inch
Height 1.72 inch
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Humidity (Operating) 5% to 85% non-condensing
Humidity (Storage) 5% to 95% non-condensing

Cloud Management & Licensing
Remote Management Protocols SSH, SNMPv3, HTTPS
Out-of-Band Management Ethernet management port (10/100/1000BASE-T)
Management Interface Cisco NX-OS Software CLI and GUI
Licensing Cisco MDS software features via optional license packs
