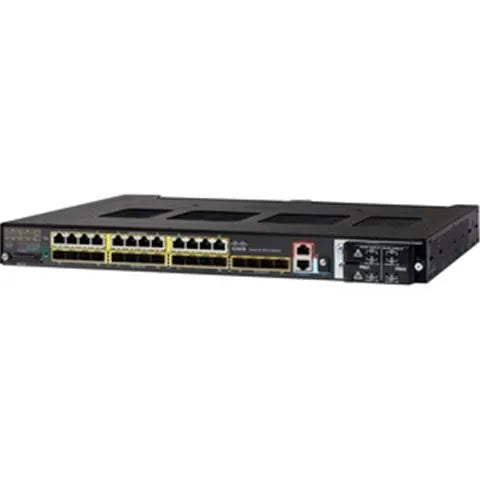

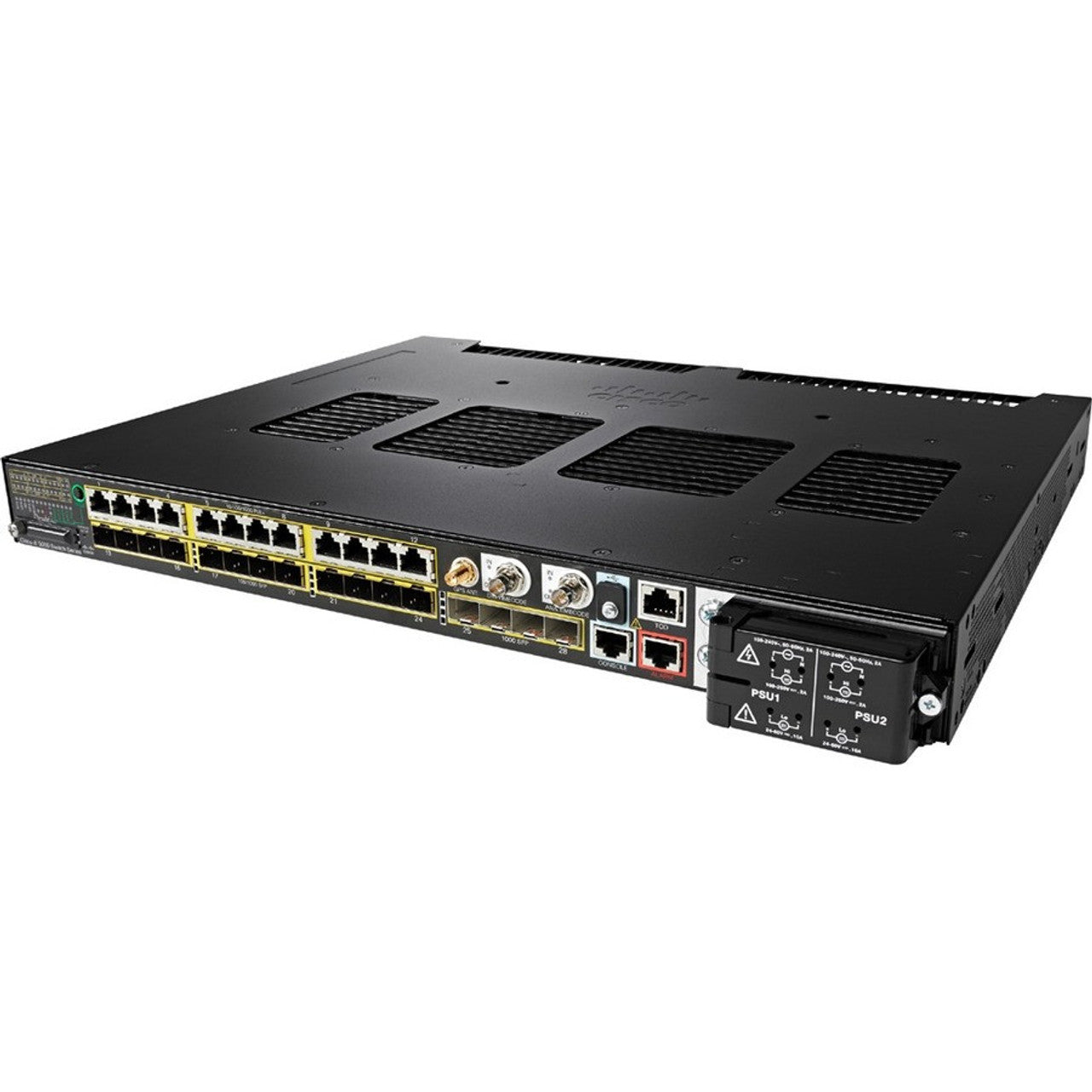

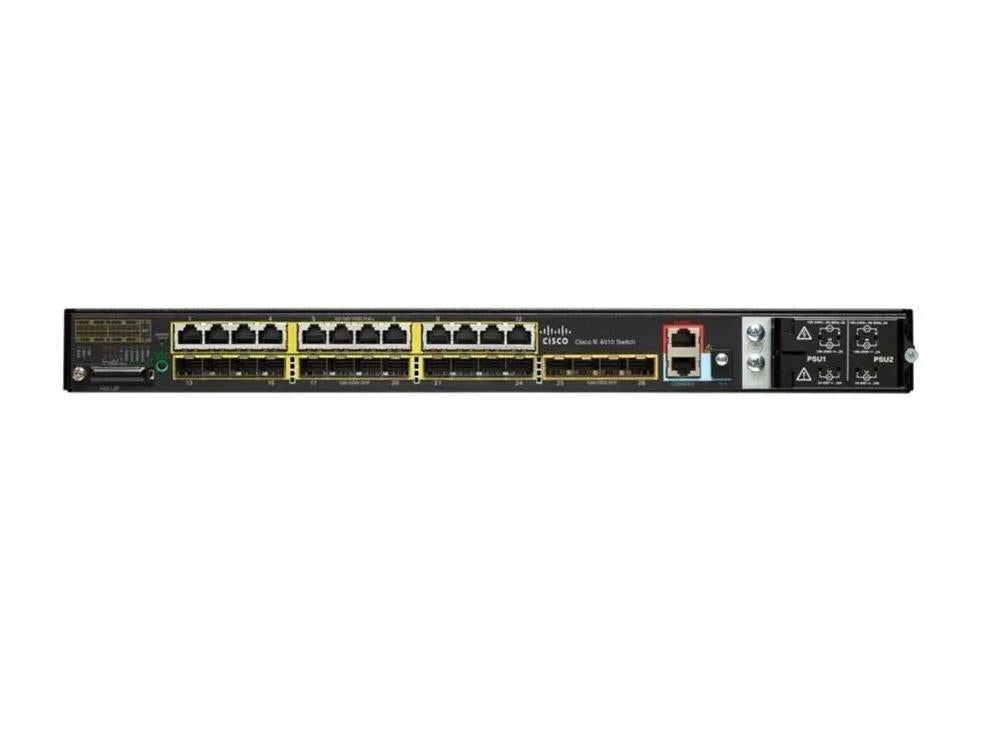

Cisco IE-4010-16S12P Industrial Ethernet Switch, 28-Port Managed

VENDOR: CISCO Mfg Part#: IE-4010-16S12P UPC#: 882658945557
  • The Cisco IE-4010-16S12P is a highly ruggedized 28-port managed switch built for industrial Ethernet deployments. Offering a mix of Gigabit PoE+ and SFP uplink ports, it combines high port density, industrial resilience, and powerful Layer 2 and basic Layer 3 capabilities. Ideal for demanding outdoor and factory environments, it features wide temperature tolerance and advanced network control support.
1 1
Photo is for illustration purposes only. Actual product may be different.
$14,022.00
$14,022.00
Sale Sold out
MSRP: $19,801.00
Shipping calculated at checkout.
  • 28-port DIN rail mountable industrial managed switch
  • 12x 10/100/1000 PoE+ ports, 12x SFP ports, 4x combo SFP uplink ports
  • 56 Gbps switching bandwidth and 28 Gbps forwarding bandwidth
  • Advanced security features: FIPS 140-2, 802.1x, IP source guard, and DHCP snooping
  • Operating temperature range: -40 °F to 167 °F
  • Complies with numerous industrial standards including IEEE 1588v2 and EN 50155
View full details

Key Benefits

Eye-Insights
  • Offers versatile connectivity with 28 total ports including PoE+ and SFP options, ideal for mixed deployment environments
  • Built to operate in extreme temperatures and industrial conditions, ensuring reliable uptime in harsh settings
  • Includes Cisco IOS LAN Base software and a 5-year warranty with advance parts replacement, enhancing ROI and lifecycle support

Product Overview

The Cisco IE-4010-16S12P is a 28-port managed industrial Ethernet switch designed for critical network applications in harsh environments. It features 12 Gigabit PoE+ ports, 12 SFP ports, and 4 uplink ports for maximum connectivity flexibility. Layer 2 and basic Layer 3 support, including static IPv4 routing and IGMP snooping, provide strong traffic control capabilities. The switch delivers 56 Gbps switching bandwidth and is built with FIPS 140-2 certified encryption for advanced security. Certified to industry standards like IEEE 1588v2 and EN 50155, and tolerant to –40°F to 167°F temperature ranges, this device ensures reliable operation in demanding settings. It is backed by a five-year Cisco warranty with advance hardware replacement support.

Specifications

Primary Information
Network Device Type Switch
Model IE-4010-16S12P
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Networking / Ports Qty 31
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 1 GB
Flash Memory / Installed Size 128 MB
Networking Compliant Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, EEE 802.1AE, IEEE 802.1ag, IEEE 802.3ah
Media Layer Supported Layer 2 and Layer 3
Power / Device Type Power Supply
Uplink Port 4GE SFP uplink ports
MTBF 415160 hours
Features Robust industrial design; User-friendly GUI device manager; Swap drive: zero-config replacement; Complete Gigabit Ethernet switch

Interfaces / Ports
Interfaces 12GE SFP, 12GE Copper PoE+ and 4GE SFP uplink ports, Mini-USB, RJ-45 console
SFP Ports 16

Service&Support
Service & Support Type Five-year limited hardware warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support YES
MAC Address Table Size 16000
Remote Management Protocol SSH; DHCP; VLAN; HTTP; SNMP
Routing Protocol OSPF, EIGRP, BGPv4, IS-IS, RIPv2, Policy-Based Routing (PBR), HSRP
Encryption Algorithm MACsec
Authentication Method TACACS+, RADIUS
SFP Ports 16
Interfaces 12GE SFP, 12GE Copper PoE+ and 4GE SFP uplink ports, Mini-USB, RJ-45 console

Dimensions&Miscellaneous
Width 17.5 Inch
Height 1.75 Inch
Weight 12.7 lbs.

Special Feature
Min Operating Temperature -40 Celsius
Max Operating Temperature 75 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 85 Celsius
RoHS Y
COO BRAZIL / CHINA / UNITED STATES
TAA compliance Yes
