Products Memory, Storage and Components CISCO LX -4xSFP+ Dual DC Po...

CISCO LX -4xSFP+ Dual DC Power Supply

VENDOR: CISCO Mfg Part#: SKY-LXS-DD++
  • LX -4xSFP+ Dual DC Power Supply
1 1

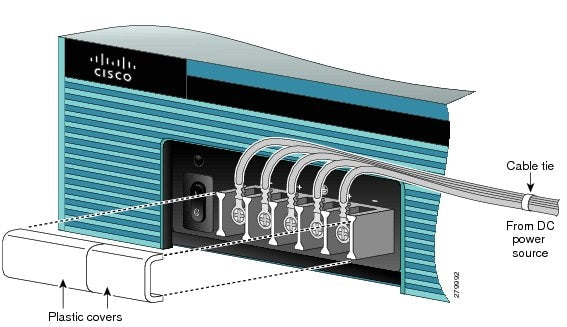

Photo is for illustration purposes only. Actual product may be different.
$13,487.00
$13,487.00
Sale Sold out
MSRP: $19,781.00
Shipping calculated at checkout.
  • Dual DC power supply configuration for redundancy
  • Supports 4x SFP+ ports for high-speed networking
  • Manufactured in Canada
  • TAA compliant for government and public sector use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for environments requiring redundant power to ensure uptime.
  • TAA compliance makes it suitable for regulated and public sector procurement.
  • Supports 4x SFP+ ports, enabling high-density fiber connectivity.

Product Overview

The CISCO LX -4xSFP+ Dual DC Power Supply, part number SKY-LXS-DD++, is engineered for enterprise networking where high availability and redundant power are essential. It supports 4 SFP+ ports and features dual DC input, providing consistent power delivery in mission-critical setups. Manufactured in Canada and TAA-compliant, it's a reliable choice for government and enterprise installations. Additional specs are required for full implementation planning.

Specifications

Product Overview
Product Type Network Interface Device with Dual DC Power Supply
Form Factor Rack-mountable
Redundant Power Supply Yes, Dual DC Input
Power Supply Type DC
Hot-swappable Power Yes
Power Input -48V DC
Designed For Enterprise Networking Environments

Physical & Environmental
Dimensions (W x D x H) Approximately 8.5 x 10 x 1.75 inches
Mounting Type Standard 1U Rack Mount
Weight Approx. 5.5 lbs (2.5 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Heat Dissipation Approx. 150 BTU/hr

Cloud Management & Licensing
Cloud Management Not Applicable
Management Interface Not Managed – Media Converter Type
Firmware Upgrade Support No
Licensing Requirement No Licensing Required

Interfaces
Interface Type SFP+
Number of Ports 4
Port Speed 10 Gigabit Ethernet
Total Switching Capacity Up to 40 Gbps aggregate
Uplink Ports Supported Yes, via SFP+
Compatible SFP Modules Cisco 10GBASE modules

Compliance & Origin
Country of Origin Canada
TAA Compliant Yes
RoHS Compliance Yes
Certifications FCC Class A, CE, UL, CSA, VCCI, ICES-003
Safety Standards UL 60950-1, EN 60950-1

Advanced Security Features
MAC Address Filtering No
Traffic Isolation No
Firewall Included No
Content Filtering No
Malware Protection No
Intrusion Detection No
