Cisco M7 12G SAS HBA for 16 Drives, UCSC-SAS-T-D

VENDOR: CISCO Mfg Part#: UCSC-SAS-T-D
1 2

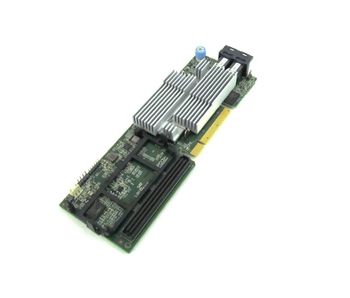

Photo is for illustration purposes only. Actual product may be different.
$1,047.00
$1,047.00
Sale Sold out
MSRP: $1,536.00
Shipping calculated at checkout.
  • 16 x SAS 12Gb/s high-speed data interfaces
  • Supports 12 Gbit/s data transfer rate
  • HBA mode for minimal overhead and greater throughput
  • Compatible with UCSC-C220-M7S and UCSC-C240-M7SX series
  • TAA compliant and manufactured in the United States
  • Optimized for Cisco UCS infrastructure integration

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High channel capacity with support for 16 SAS devices enhances storage scalability.
  • Designed for Cisco UCS M7 series ensures seamless integration and compatibility.
  • TAA compliance and U.S. origin meet government and enterprise procurement standards.

Product Overview

The Cisco M7 12G SAS HBA for 16 Drives (UCSC-SAS-T-D) is a high-performance storage controller crafted for Cisco UCS platforms, offering 12Gb/s SAS connectivity across 16 channels. Operating in HBA mode, it ensures efficient non-RAID data processing. Designed for UCSC-C220-M7S and UCSC-C240-M7SX models, it supports 16 direct SAS connections. With its TAA compliance and U.S. origin, it’s appropriate for regulated and government use. Built to enhance performance in virtualization and data-intensive environments, the M7 HBA integrates seamlessly within Cisco’s server infrastructure.

Specifications

Product Overview
Product Type Storage Controller (HBA)
Model Cisco M7 12G SAS HBA
Form Factor Low-profile adapter card
Weight 0.5 lbs (approximate)
Power Requirements 12V DC via PCIe slot
Supported Servers Cisco UCSC-C220-M7S, UCSC-C220-M7S-NEW, UCSC-C240-M7SX, UCSC-C240-M7SX-NEW
Mode of Operation HBA (non-RAID)

Wireless Features

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Compliance Standards RoHS, WEEE
Certifications FCC Class A, UL, CE

Advanced Security Features
Data Protection End-to-end data integrity via SAS T10 DIF
Secure Firmware Firmware signed and verified by Cisco
Tamper Protection Secure firmware update process
Hardware Encryption No (relies on software layer or storage device controller)

Interfaces
Interface Type SAS 12Gb/s (Serial Attached SCSI)
Number of Channels 16
Data Transfer Rate per Channel 12 Gbit/s
Total Bandwidth Up to 192 Gbit/s (aggregate across 16 channels)
Connector Type Internal mini-SAS HD (SFF-8643)
Number of Ports 4 x internal mini-SAS HD ports (each supporting 4 drives)
Drive Support Supports up to 16 SAS drives

Physical & Environmental
Card Dimensions (H x L) 2.71 in. x 6.6 in. (low profile standard)
Operating Temperature Range 10°C to 55°C (50°F to 131°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Server-dependent passive cooling (airflow from server chassis)

Cloud Management & Licensing
Management Utility Managed via Cisco UCS Manager / CIMC
Licensing Requirements No additional license required (standard hardware component)
Remote Monitoring Yes, through UCS management console
