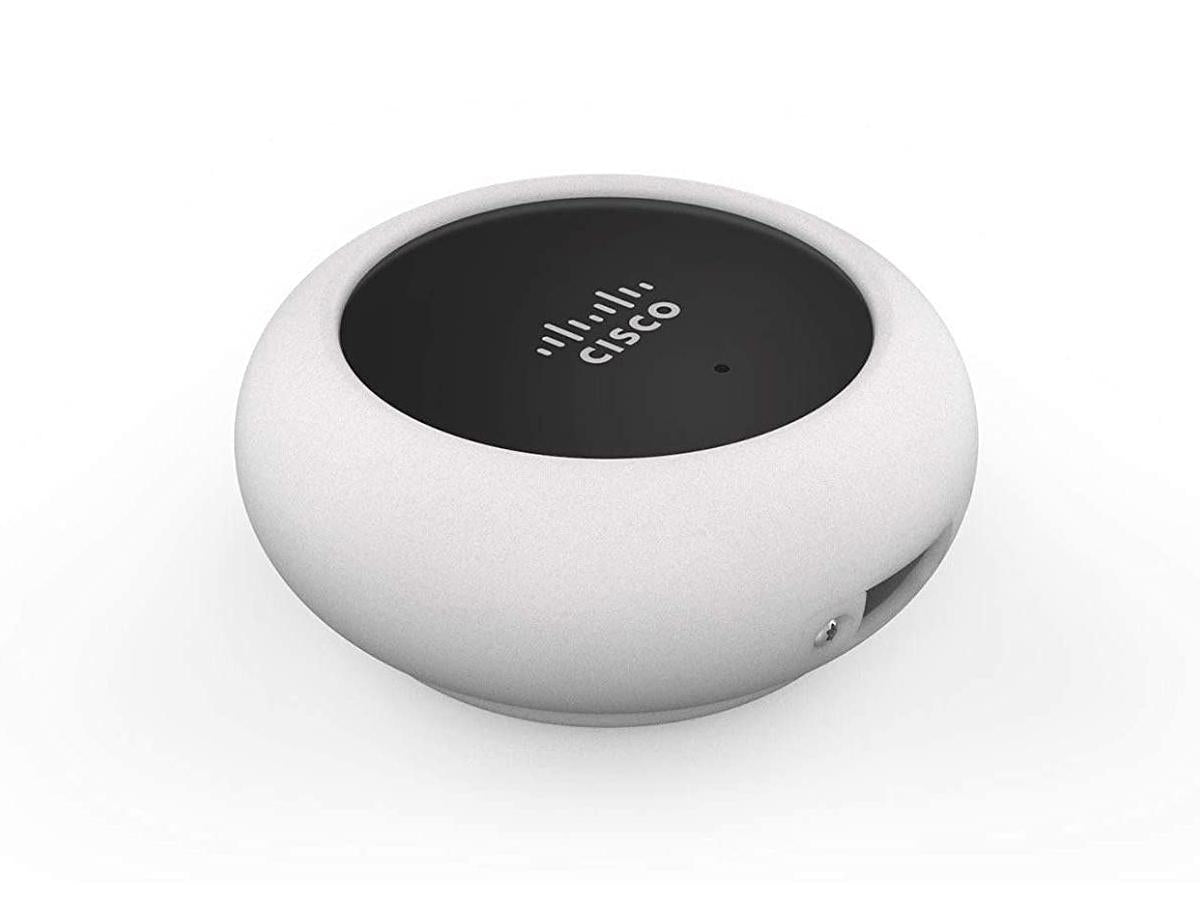

Cisco MA-PWR-MV-LV Low Voltage 12VDC/24VAC PoE Injector

VENDOR: CISCO Mfg Part#: MA-PWR-MV-LV
1 2
Photo is for illustration purposes only. Actual product may be different.
$284.00
$284.00
Sale Sold out
MSRP: $417.00
Shipping calculated at checkout.
  • Input voltage: 12VDC or 24VAC for low-voltage environments
  • Output voltage: 54V PoE with max current of 0.43 A
  • Single RJ-45 Gigabit LAN port for data and power transmission
  • IEEE 802.3af compliant for wide device compatibility
  • TAA compliant and manufactured in Taiwan
  • Specifically designed for Cisco Meraki MV63, MV93, MV93X, and MV12 HD camera models

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables low-voltage (12VDC/24VAC) PoE deployment, reducing the need for additional power infrastructure.
  • Tailor-made for Cisco Meraki MV cameras, ensuring seamless integration and optimal performance.
  • Compliance with IEEE 802.3af and TAA standards makes it suitable for federal and enterprise applications.

Product Overview

The Cisco MA-PWR-MV-LV is a specialized PoE injector built for low voltage environments, converting 12VDC or 24VAC to a stable 54V PoE output. Optimized for Cisco Meraki MV cameras such as MV63, MV93, MV93X and MV12 series, it features a single RJ-45 Gigabit Ethernet interface and complies with IEEE 802.3af standards. Designed and manufactured in Taiwan, this unit is TAA-compliant and intended for secure, cost-effective deployments in enterprise or government environments.

Specifications

Product Overview
Manufacturer Cisco
Product Name Cisco MA-PWR-MV-LV Low Voltage 12VDC/24VAC PoE Injector
Manufacturer Part Number MA-PWR-MV-LV
Device Type PoE injector
Product Description Cisco Meraki - PoE injector
Form Factor External
Power Input Type AC or DC
Input Voltage AC 24 V / DC 12 V
Output Voltage 54 V
Maximum Output Current 0.43 A
Power Output Type PoE (Power over Ethernet)
Power Output Connectors 1 x RJ-45
Application Low-voltage environments
Intended Use Power supply for Cisco Meraki MV cameras
Compatible Devices Cisco Meraki MV63, MV93, MV93X, MV12 (Narrow and Wide Angle)

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Compliant Standards IEEE 802.3af
Certifications FCC, UL, CE, RoHS

Advanced Security Features
Integrated Security Features None
Firewall Support
Intrusion Detection/Prevention
Content Filtering
Malware Protection

Interfaces
Network Interface 1 x Gigabit Ethernet (RJ-45)
Data Transfer Rate 10/100/1000 Mbps
PoE Standard Supported IEEE 802.3af

Physical & Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Operating Relative Humidity 5% to 95% (non-condensing)
Dimensions (W x D x H) 120 mm x 85 mm x 45 mm (approximate)
Weight Approx. 400 g

Cloud Management & Licensing
Remote Management Not applicable
Cloud Managed No
Licensing Required No
