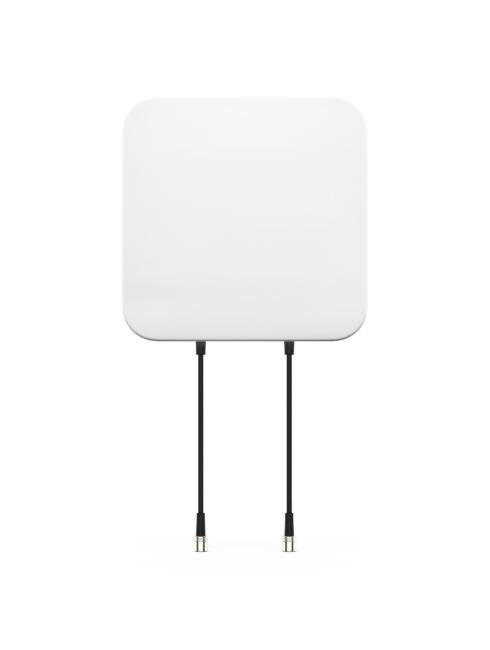

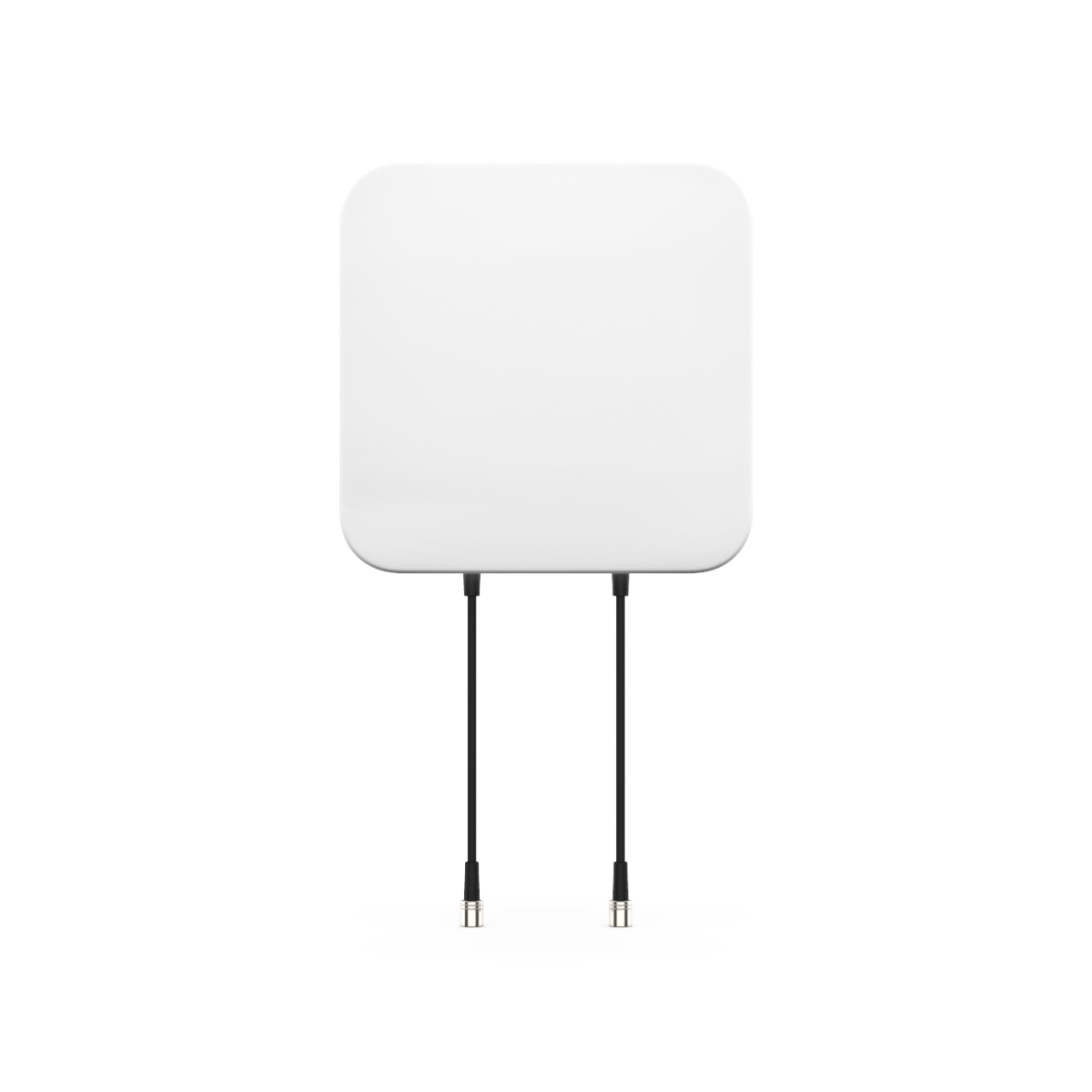

Cisco Meraki Dual Patch Antenna with Custom Mount for MG41E

VENDOR: CISCO Mfg Part#: MA-ANT-DUAL-C1
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,018.00
$1,018.00
Sale Sold out
MSRP: $1,492.00
Shipping calculated at checkout.
  • Antenna type: Dual patch optimized for MG41E
  • Connector type: RP-SMA for reliable connections
  • Frequency support: 617–960 MHz to 4400–5925 MHz across five bands
  • Cable length: 90 cm for flexible placement
  • TAA-compliant and includes 1-year hardware warranty
  • Compact size: 220 mm x 220 mm x 48 mm

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Tailored for MG41E, ensuring seamless integration and optimal signal performance.
  • Supports a wide frequency range, covering LTE and emerging 5G bands for versatile deployment.
  • TAA compliance and hardware warranty offer peace of mind for enterprise and government contracts.

Product Overview

The Cisco Meraki Dual Patch Antenna with Custom Mount for MG41E is a high-performance antenna designed to support reliable LTE and 5G connectivity across a broad range of frequency bands. It includes RP-SMA connectors and a 90 cm cable for flexible installation. The durable build, compact dimensions (220 × 220 × 48 mm), and TAA-compliant certification make it suitable for enterprise and government use. Backed by a 1-year hardware warranty and made in Taiwan, this dual patch antenna is ideal for enhancing the Meraki MG41E's performance in various deployment scenarios.

Specifications

Product Overview
Type Dual Patch Antenna
Form Factor Panel mount with custom bracket
Weight 0.65 kg
Power Requirements Passive (no power required)
Included Cable Length 90 cm
Antenna Connectors RP-SMA
Intended Use Outdoor/indoor LTE and 5G deployments
Compatible Devices Cisco Meraki MG41E

Wireless Features
Supported Frequencies 617–960 MHz, 1710–2170 MHz, 2200–2690 MHz, 3300–4100 MHz, 4400–5925 MHz
Frequency Bands LTE, LTE-Advanced, 5G Sub-6 GHz
Antenna Type Dual Polarized Patch Antenna
Antenna Gain 3 to 6 dBi (frequency-dependent)
Radiation Pattern Directional
Polarization ±45° slant polarization
MIMO Support 2x2 MIMO
VSWR < 2:1
Impedance 50 Ohms

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certification Standards RoHS, WEEE
Warranty 1-Year Hardware Warranty

Advanced Security Features
Passive Device Yes (does not handle security features)

Interfaces
Number of Connectors 2
Connector Type RP-SMA male
Cable Type Low-loss coaxial

Physical & Environmental
Width 220 mm
Depth 220 mm
Height 48 mm
Mounting Options Custom mount included for MG41E
Operating Temperature -40°C to 70°C
Storage Temperature -40°C to 85°C
Humidity Tolerance 5% to 95% non-condensing
Outdoor Use Rated Yes
Enclosure Material UV-resistant plastic housing

Cloud Management & Licensing
Cloud Integration Works with Meraki MG41E (cloud-managed)
Licensing Requirement No license required for antenna
