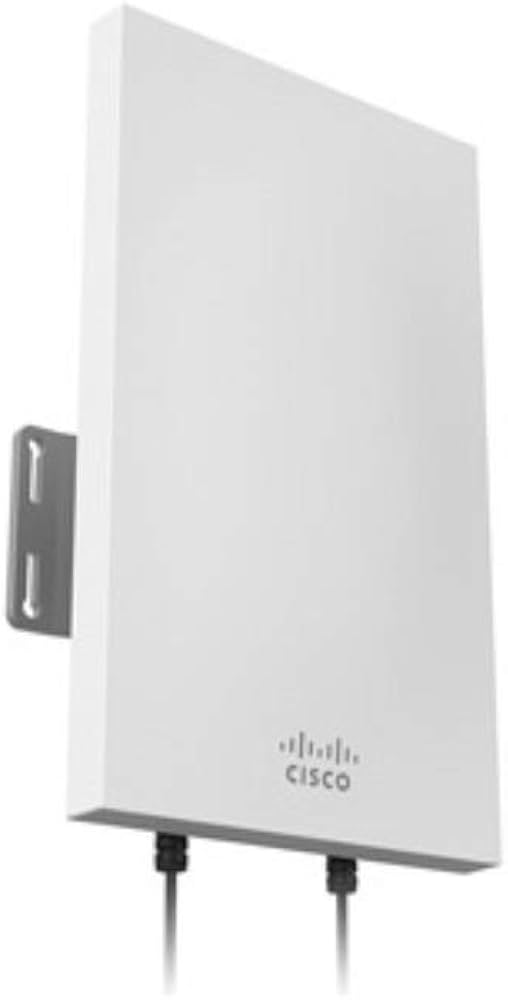

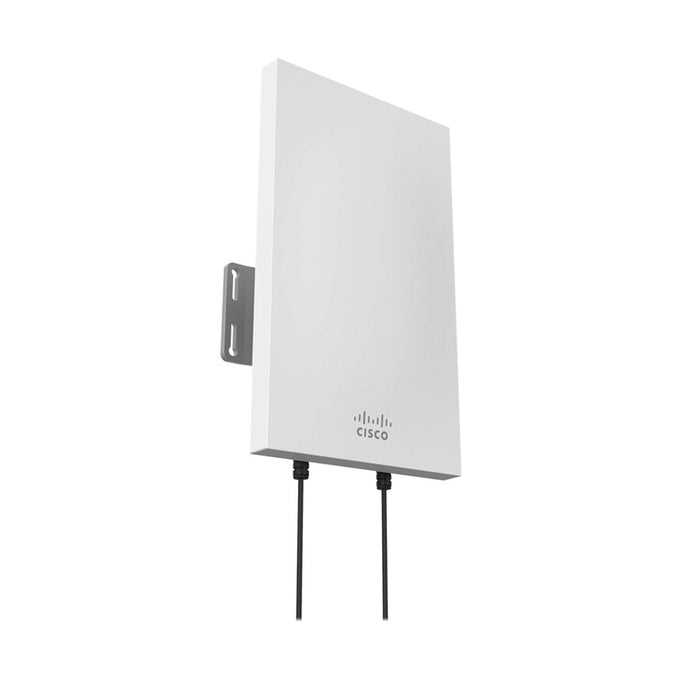

Cisco Meraki MA-ANT-21 5GHz 13dBi Sector Antenna, N-Type

VENDOR: CISCO Mfg Part#: MA-ANT-21
1 2
Photo is for illustration purposes only. Actual product may be different.
$400.00
$400.00
Sale Sold out
MSRP: $587.00
Shipping calculated at checkout.
  • 13 dBi gain for focused 5 GHz wireless coverage
  • Supports MIMO with 2 N-Type connectors
  • Operates in the 5.150 - 5.875 GHz frequency band
  • Compact dimensions: 9.2" W x 5.5" D x 1.6" H
  • TAA compliant for government use
  • Includes 1-year hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Provides high-gain directional coverage, ideal for both client access and backhaul use cases
  • Seamless compatibility with Meraki access points featuring N-Type connectors ensures easy deployment
  • TAA compliance and compact form factor make it suitable for government and professional enterprise environments

Product Overview

The Cisco Meraki MA-ANT-21 is a 13 dBi sector antenna engineered for high-performance 5 GHz MIMO wireless networks. With two N-Type connectors and a frequency range of 5.150 – 5.875 GHz, it is ideal for targeted coverage and backhaul deployments. Its compact design, TAA compliance, and integration with Meraki APs make it a reliable option for enterprise and government-grade installations.

Specifications

Product Overview
Type 5GHz Sector Antenna
Form Factor Directional Outdoor Antenna
Antenna Gain 13 dBi
Power Requirements Passive device (powered by connected AP)
Service & Support Type 1 year hardware warranty

Wireless Features
Frequency Range 5.150 - 5.875 GHz
Supported Wireless Band 5 GHz
MIMO Support Yes, Dual-Element (2x2) MIMO
Polarization Dual Linear (Vertical and Horizontal)
Beamwidth Horizontal 30°
Beamwidth Vertical 30°
VSWR ≤2.0:1
Isolation Between Ports >30 dB
Max Input Power 10W

Compliance & Origin
Country of Origin TAIWAN
TAA Compliance Yes
Certifications FCC, IC, CE
RoHS Compliance Yes
REACH Compliant Yes

Advanced Security Features
Security Features N/A – passive antenna without built-in security functions

Interfaces
Connector Type N-Type
Number of Connectors 2
Connector Gender Female

Physical & Environmental
Height 1.6 Inch
Width 9.2 Inch
Depth 5.5 Inch
Weight 0.79 kg (1.75 lbs)
Mounting Options Wall or pole mount (hardware included)
Radome Material UV-stabilized plastic
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity (Operating) 5% to 95% non-condensing
Wind Survivability Up to 201 km/h (125 mph)
Ingress Protection Rating IP67

Cloud Management & Licensing
Compatible Platforms Cisco Meraki MR series Access Points
Cloud Management Managed through Meraki Dashboard when connected to MR series APs
Licensing Requirement No separate license required (follows AP licensing)
