Cisco N9K-C9336C-FX2 36-Port 100G L3 Managed Switch

VENDOR: CISCO Mfg Part#: N9K-C9336-FX2-Z-PI
  • The Cisco Nexus N9K-C9336C-FX2 is a high-density, 1RU rack-mountable switch offering 36 ports of 100/40 Gigabit QSFP28 connectivity with advanced Layer 3 management. Designed for enterprise and high-performance data centers, it boasts 7.2 Tbps switching capacity, Layer 2/3 protocol support, and a robust 24 GB of RAM. Its powerful architecture enables extensive scalability and virtualization compatibility.
1 1

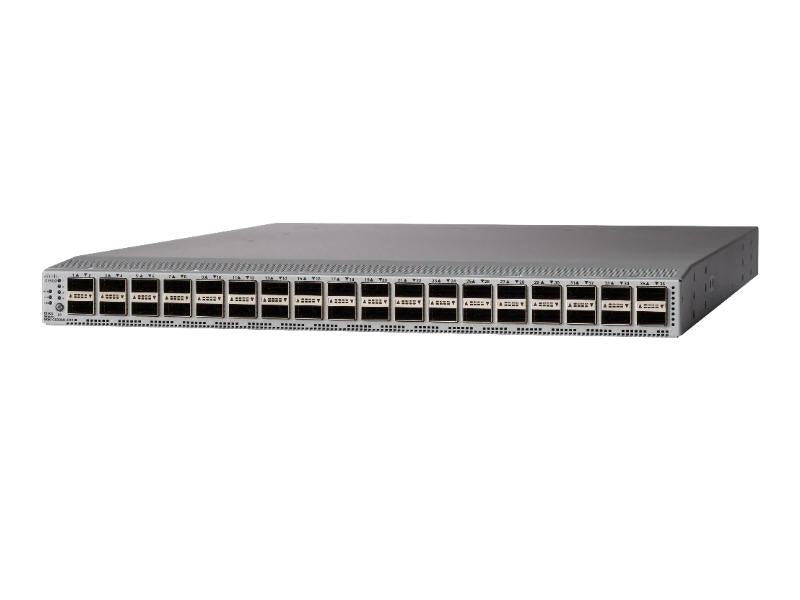

Photo is for illustration purposes only. Actual product may be different.
$65,041.00
$65,041.00
Sale Sold out
MSRP: $91,850.00
Shipping calculated at checkout.
  • 36 x 100G/40G QSFP28 ports with 7.2 Tbps total bandwidth
  • Layer 3 managed switch with support for OSPF, BGP, MPLS, and more
  • 24 GB RAM and 128 GB SSD for high-throughput configurations
  • MACsec, VXLAN, EVPN, and vPC support for secure and scalable network design
  • Front and side to back rack-mountable 1U design with optional power redundancy
  • 40MB system buffer and ACL support (5,000 ingress / 2,000 egress entries)
View full details

Key Benefits

Eye-Insights
  • Delivers massive 7.2 Tbps switching capacity supporting modern data center bandwidth needs
  • Supports extensive protocol and virtualization technologies including VXLAN, EVPN, and MACsec
  • Provides investment protection with high scalability (16000 VRFs, 3967 VLANs) and TAA compliance

Product Overview

The Cisco Nexus N9K-C9336C-FX2 is a powerful Layer 3 managed switch built for data-intensive environments requiring optimal speed and flexibility. Featuring 36 QSFP28 ports supporting 100Gbps and 40Gbps, this rack-mountable 1RU unit delivers a total switching bandwidth of 7.2 Tbps with line-rate forwarding performance of 2.8 billion packets per second. It's second to none in data center scalability, featuring MACsec encryption, VxLAN/EVPN, vPC support, and comprehensive Layer 2/3 protocol support including OSPF, BGP, and MPLS. Advanced security and traffic control are enabled through extensive ACL entry capabilities (5,000 ingress, 2,000 egress) and multicast support of up to 32,000 routes. The device also includes 24 GB of RAM and a 128 GB SSD to support complex configurations and high availability operations.

Designed with front-to-back airflow and an optional dual power supply configuration, it offers enhanced cooling and redundancy. With a system buffer of 40MB, robust STP, MSTP, and multiple VRF (up to 16,000 instances), it is ideal for large-scale virtualized or segmented network designs. Built-in management and console interfaces, including serial, RJ-45 and SFP+, ensure straightforward configuration and monitoring. The unit is TAA-compliant, RoHS-certified, and delivers service continuity with a one-year limited hardware warranty and 352,590 hours MTBF.

Specifications

Primary Information
Network Device Type Switch
Model N9K-C9336C-FX2
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Networking / Ports Qty 40
Data Link Protocol Gigabit Ethernet
Processor / Type Quad-Core
RAM / Total Installed Size 24 GB
Power / Device Type Power Supply
Media Layer Supported Layer 2 and Layer 3
Power / Voltage Required 100 to 240V ac
MTBF 352590 hours

Interfaces / Ports
Interfaces QSFP28;RJ-45;SFP+;USB;RS-232 serial
SFP+ Ports 1

Service&Support
Service & Support Type 1-year limited hardware warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support none
PoE Power Consumption none
MAC Address Table Size 256000
Remote Management Protocol HTTPS; HTTP
Routing Protocol ECMP,RSVP
Encryption Algorithm MACsec
SFP+ Ports 1
Interfaces QSFP28;RJ-45;SFP+;USB;RS-232 serial

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 24.5 Inch
Height 1.72 Inch

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y
COO CHINA / MEXICO
TAA compliance Yes
