| Product Type | Router |
| Model | Cisco NCS-55A1-24Q6H-S |
| Form Factor | Rack-mountable - 1U |
| Throughput | 900 Gbps |
| Processor Speed | 1.9 GHz |
| RAM | 32 GB |
| Storage Capacity | 128 GB |
| Power Supply Type | Internal power supply |
| Power Redundancy | Yes (2 installed / 2 max) |
| Power Consumption (Operational) | 450 Watt |
| System Software | Cisco IOS XR 6.6.25 |

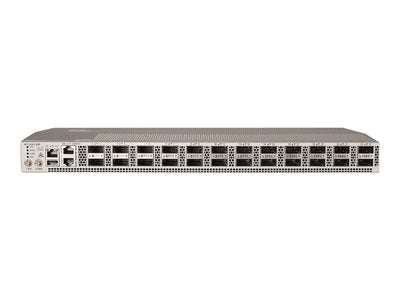

Cisco NCS-55A1-24Q6H-S 24x10/25G & 6x100G Rack-Mount Router
Photo is for illustration purposes only. Actual product may be different.
Regular price
$175,155.00
Regular price
Sale price
$175,155.00
Unit price
per
MSRP: $256,894.00
Shipping calculated at checkout.
Couldn't load pickup availability
- - 900 Gbps total throughput across 24x 1/10/25GbE and 6x 100GbE interfaces
- - Layer 2 and Layer 3 switching with support for routing protocols including BGP, OSPFv2/v3, IS-IS, and MPLS
- - Supports jumbo frames up to 9216 bytes and 1.1M FIB entries for high-scale routing
- - Advanced security and management: MACsec, SSH, SNMPv3, JSON, and YANG
- - Dual redundant power supplies and modular fan trays for high-availability architecture
- - Compliant with IEEE, FCC, TAA, and various global standards for interoperability and regulatory compatibility
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- - Ideal for high-density edge and aggregation deployments thanks to 900 Gbps throughput and versatile port configurations
- - Advanced routing protocol support with MACsec, HQoS, and L3VPN enable robust and secure service delivery
- - Designed for operational efficiency with remote programmability, telemetry, and compact 1U form factor
Product Overview
The Cisco NCS-55A1-24Q6H-S is engineered to deliver high-performance routing in space- and power-constrained environments. This fixed 1U rack-mounted router supports up to 900 Gbps of throughput and incorporates 24 ports of 1/10/25GbE using SFP28 and 6 ports of 40/100GbE via QSFP28. It supports jumbo frames up to 9216 bytes, robust IP routing protocols including BGP, OSPFv2/v3, IS-IS, ECMP, MPLS, and features MACsec, HQoS, and L3VPN. The system runs on Cisco IOS XR 6.6.25 and includes 32 GB RAM and 128 GB storage. Integrated dual power modules and fan trays ensure operational continuity. Fully RoHS and TAA compliant, it meets global reliability standards.
Designed for scale and automation, this platform enables secure and programmable management via SNMPv3, SSH, YANG, and JSON. Advanced telemetry and real-time monitoring streamline diagnostic efficiency. With an operating temperature range of 32°F to 104°F and carrier-grade features, the NCS-55A1-24Q6H-S delivers exceptional performance for data center, service provider, and enterprise network deployments.
Specifications
Product Overview
Cloud Management & Licensing
| Remote Management Protocols | SNMPv3, SSH, OAM, JSON, YANG |
| Automation Features | ZTP, PTP, iPXE, MIB, RPL |
Routing & Performance
| Routing Protocols | IS-IS, IS-ISv6, BGP, OSPFv2, OSPFv3, VRRP, ECMP, MPLS, BFD |
| Forwarding Information Base (FIB) | 1,100,000 entries |
| Quality of Service | HQoS |
| IP Version Support | IPv4, IPv6 |
| Layer 2/3 Switching | Supported |
Compliance & Origin
| Country of Origin | China / United States |
| TAA Compliant | Yes |
| RoHS Compliance | RoHS 6/6 |
| Certifications | FCC CFR47 Part 15, UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 55022, EN 55024, EN 300 386, KN22, KN61000-4, VCCI Class A, CNS 13438, ICES-003 Class A, CISPR 22/24, GR-1089-CORE, GR-63-CORE, GB 4943, AS/NZS 60950-1, Directive 2004/108/EC, Directive 2006/95/EC, EN 60950-1 |
Interfaces
| Total Ports | 30 |
| 10/25 GbE Ports | 24 x SFP28 |
| 40/100 GbE Ports | 6 x QSFP28 |
| Management Port | 1 x RJ-45 |
| Console Port | 1 x RJ-45 |
| Supported Data Link Protocols | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 100 Gigabit Ethernet |
| Jumbo Frame Support | 9216 bytes |
Advanced Security Features
| Authentication Methods | SSH, TACACS+ |
| MACsec Support | Yes |
| AAA Support | Yes |
| L3VPN Support | Yes |
Physical & Environmental
| Width | 17.4 in |
| Depth | 21.7 in |
| Height | 1.7 in |
| Weight | 23.81 lbs |
| Operating Temperature Range | 32°F to 104°F |
| Operating Humidity | 5% - 95% (non-condensing) |
| Cooling System | Redundant 1+1 fan modules with 2 fan trays |
