CISCO Nexus 9508 R2 Chassis Bundle, 1 SupB+, 3 PS, 2 SC, 6 FM-R2, 3 FT

VENDOR: CISCO Mfg Part#: N9K-C9508-B2-R2
1 3

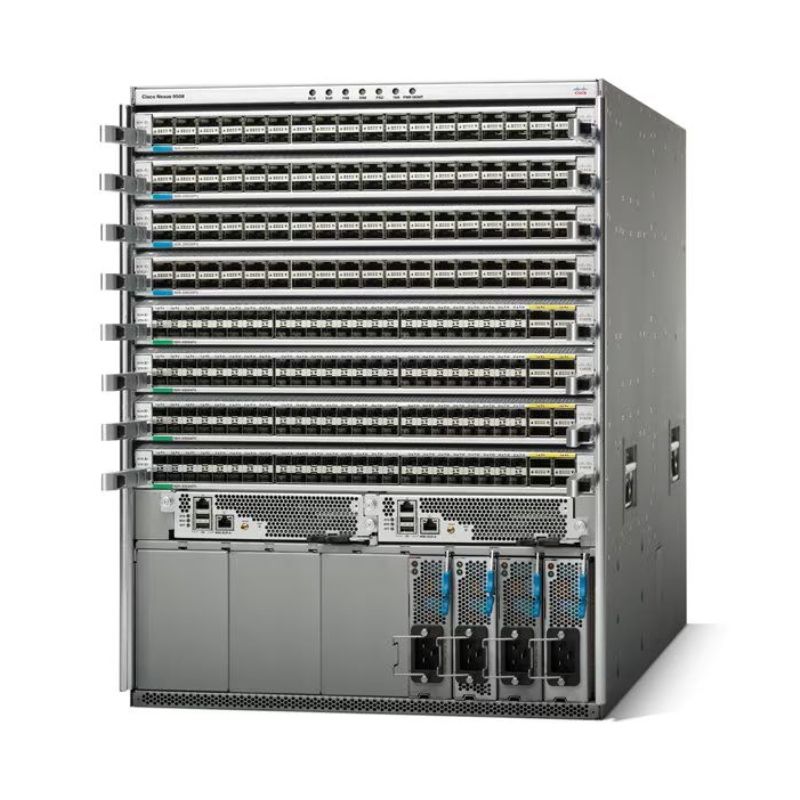

Photo is for illustration purposes only. Actual product may be different.
$231,075.00
$231,075.00
Sale Sold out
MSRP: $338,910.00
Shipping calculated at checkout.
  • Includes 1 Supervisor Module B+ for centralized control
  • Equipped with 3 power supplies for redundancy
  • Comes with 2 system controllers to enhance resilience
  • 6 FM-R2 fabric modules ensure high internal bandwidth
  • 3 fan trays included for thermal management
  • TAA compliant and made in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Fully modular design supports enterprise-scale network growth using Cisco’s proven NX-OS platform
  • TAA compliance and U.S. origin make it suitable for federal and government procurement
  • Redundant components (PSUs, controllers, fan trays) improve fault tolerance and uptime assurance

Product Overview

The Cisco Nexus 9508 R2 Chassis Bundle (N9K-C9508-B2-R2) is a high-performance modular switch chassis featuring 1 Supervisor Module B+, 3 power supplies, 2 system controllers, 6 fabric modules, and 3 fan trays. It is built in the United States and is TAA-compliant, making it suitable for regulated environments. Offering internal redundancy and scalable modularity, this chassis is designed for mission-critical enterprise and data center applications. Due to limited data, further technical specifications are not available.

Specifications

Product Overview
Product Type Modular Switch Chassis
Series Cisco Nexus 9500
Model Nexus 9508 R2
Form Factor 8-slot Chassis
Included Supervisor Modules 1 x Supervisor Module B+
Included Power Supplies 3 x Power Supply Units
Included System Controllers 2 x System Controllers
Included Fabric Modules 6 x Fabric Modules (FM-R2)
Included Fan Trays 3 x Fan Trays
Redundancy Yes (Supervisors, Power Supplies, Fabric Modules, Fans)
Power Supply Type AC or DC (depends on model configuration)
Power Requirements 3000W to 6000W depending on configuration
Weight 82 kg (maximum with all components installed)

Wireless Features

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
RoHS Compliance Yes
EMC Standards EN55032, EN55024, FCC Part 15 Class A
Safety Certifications UL 60950-1, IEC 60950-1, CB Scheme
Certifications CE Marking, RCM, CSA, VCCI

Advanced Security Features
MACsec Encryption Supported on select line cards
Role-Based Access Control (RBAC) Yes
Secure Boot and Trust Anchor Yes
Access Control Lists Yes
Cisco TrustSec Support Yes
Network Segmentation (VRF) Yes

Interfaces
Slot Count 8 Line Card Slots
Supervisor Slots 2
Maximum 40/100GbE Ports Up to 288 x 100GbE ports (with appropriate line cards)
Fabric Capacity 30 Tbps (using 6 FM-R2 fabric modules)

Physical & Environmental
Chassis Dimensions (H x W x D) 36.4 x 44.5 x 61.5 cm (14.3 x 17.5 x 24.2 in.)
Rack Units 13 RU
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% noncondensing
Altitude Up to 10,000 ft (3,000 m)
Airflow Front-to-back
Cooling Method Redundant fan trays with variable-speed fans

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, SNMP, REST API
Cloud-Ready Yes (via Cisco Data Center Network Manager - DCNM)
Monitoring & Telemetry Supported with Cisco Tetration and Streaming Telemetry
Licensing Model Smart Licensing
Included Licensing Base NX-OS License, feature licenses sold separately
