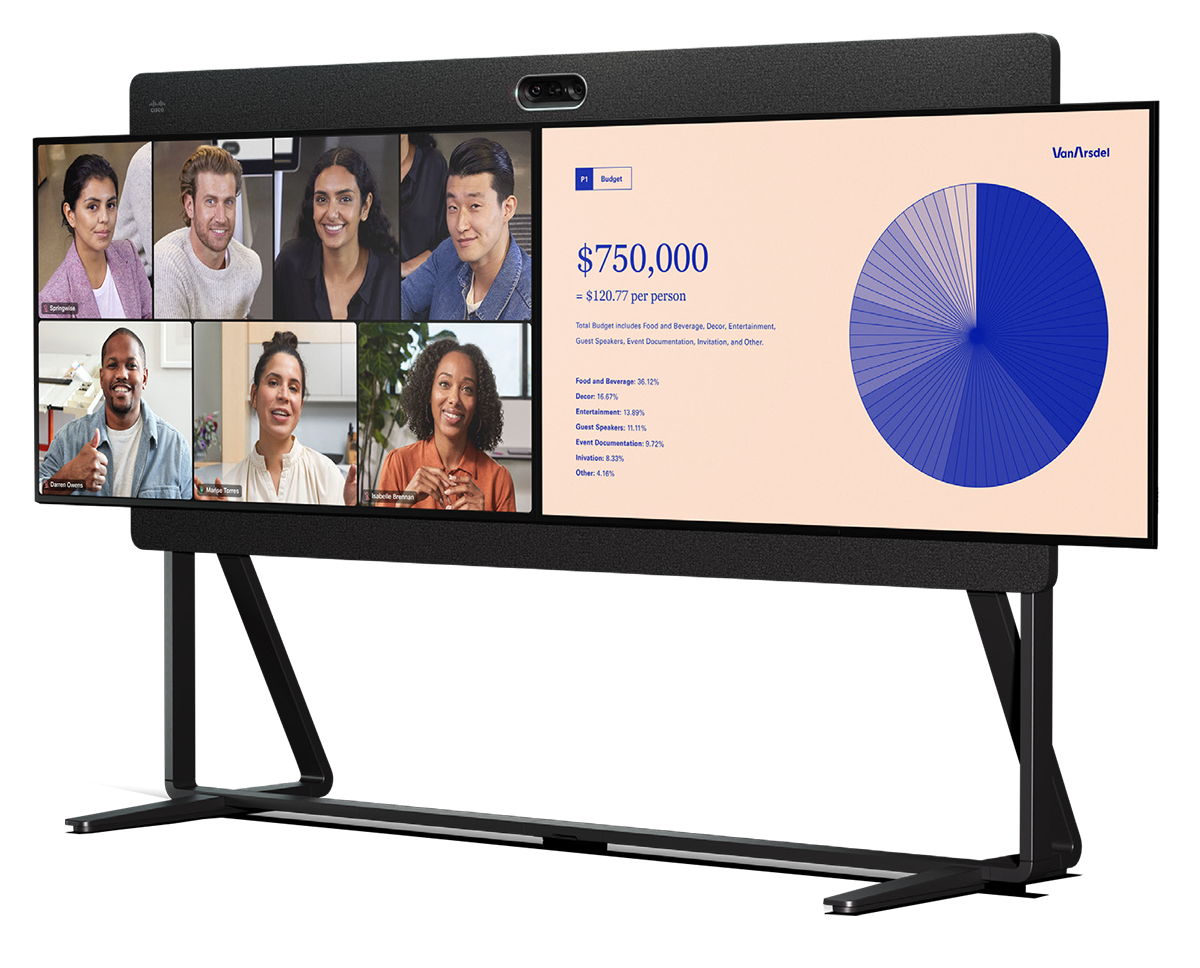

Cisco Room Kit EQX Center Module

VENDOR: CISCO Mfg Part#: CS-EQX-CENTER-MOD=
1 2
Photo is for illustration purposes only. Actual product may be different.
$2,922.00
$2,922.00
Sale Sold out
MSRP: $4,285.00
Shipping calculated at checkout.
  • TAA-compliant for use in government-regulated environments
  • Designed for Cisco Room Kit EQX video conferencing systems
  • Hardware classification: UCC/Video endpoint accessory
  • Manufacturer part number: CS-EQX-CENTER-MOD=
  • Country of origin: China

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Meets TAA compliance, ensuring eligibility for public sector and government contracts
  • Part of Cisco’s professional UCC hardware ecosystem, offering proven integration and reliability
  • Designed as a central control module for Room Kit EQX systems, supporting scalable video infrastructure

Product Overview

The Cisco Room Kit EQX Center Module, part number CS-EQX-CENTER-MOD=, is a core component for Cisco’s advanced Room Kit EQX system. As a TAA-compliant device manufactured in China, it is well-suited for enterprise and public sector deployments. Functioning as a critical hub within large-scale video conferencing environments, the module integrates with peripheral displays and control interfaces to enhance Unified Communications capabilities. While full technical specifications are not provided, its classification under Hardware UCC/Video signals its importance in professional-grade conferencing installations.

Specifications

Product Overview
Product Type Video Conferencing Center Module
Form Factor Rack-mountable
Weight 12.0 kg
Power Supply 100–240V AC, 50/60 Hz
Power Consumption (Typical) 190W
Included Components EQX Center Module, Power Supply, Network Cable, Mounting Kit

Wireless Features
Wi-Fi Support No

Compliance & Origin
Country of Origin China
TAA Compliant Yes
Regulatory Compliance FCC Part 15B, CE Mark, UL listed
Certifications RoHS, WEEE

Advanced Security Features
Data Encryption AES-256 for media and signaling
Secure Boot & Firmware Verification Yes
802.1X Authentication Supported
Media Encryption SRTP for audio and video
Password Management Role-based access with secure password policies

Interfaces
HDMI Inputs 3 x HDMI 2.0
HDMI Outputs 3 x HDMI 2.0
USB Interfaces 1 x USB 3.0 Type A, 1 x USB-C
Ethernet Ports 2 x RJ-45 (10/100/1000Base-T)
Control Interfaces RS-232, IR, API over Ethernet
Audio Input Interfaces 2 x Balanced Line In, 2 x Mic In
Audio Output Interfaces 2 x Balanced Line Out
Touch Panel Interface 1 x RJ-45 for Cisco Touch 10 control
Peripheral Interface Cisco Codec EQ Interface Port

Physical & Environmental
Dimensions (W x H x D) 437 x 88 x 400 mm (17.2 x 3.5 x 15.7 in)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 10% to 95% (non-condensing)
Cooling Integrated active cooling
Mounting Options Rack or shelf mount
Noise Emission Maximum 40 dB(A)

Cloud Management & Licensing
Management Platform Cisco Webex Control Hub
Cloud Connectivity Cisco Webex Cloud
Licensing Model Cisco Smart Licensing
Included Licenses None — purchased separately
Remote Monitoring Support Yes via Webex Control Hub
