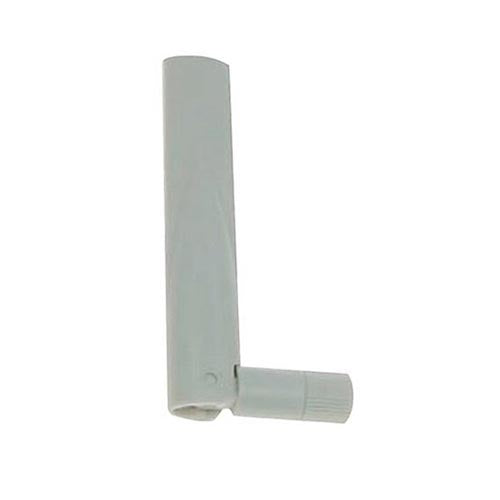

CISCO VEdge 100m/100wm 3G/4G/LTE Outdoor Antenna

VENDOR: CISCO Mfg Part#: 4G-ANT-O-OUT=
1 2
Photo is for illustration purposes only. Actual product may be different.
$206.00
$206.00
Sale Sold out
MSRP: $301.00
Shipping calculated at checkout.
  • Omni-directional antenna ensures 360-degree signal reception
  • Outdoor-rated for durability in harsh environments
  • Supports 3G, 4G, and LTE frequencies
  • Manufactured in Taiwan
  • TAA compliant for government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered by CISCO for VEdge 100m/100wm platforms ensures optimal compatibility and performance
  • Omni-directional design supports versatile installations without alignment constraints
  • TAA compliance qualifies it for procurement in regulated and government sectors

Product Overview

The CISCO VEdge 100m/100wm 3G/4G/LTE is a high-performance omni-directional outdoor antenna tailored for robust LTE, 3G, and 4G connectivity. It supports 360-degree signal coverage and is built with weather-resistant materials for reliable outdoor deployment. Made in Taiwan and TAA compliant, it is suitable for government and enterprise applications requiring mobility, network redundancy, and secure WAN access.

Specifications

Product Overview
Product Type Outdoor Omni-Directional LTE Antenna
Form Factor External antenna
Compatibility Cisco VEdge 100m/100wm Routers
Application 3G/4G/LTE WAN Connectivity
Signal Coverage 360-degree
Mounting Type Pole mount or wall mount
Power Requirements Passive (no power required)
Number of Antennas 1
Cable Included Yes

Wireless Features
Frequency Range 698–960 MHz / 1710–2700 MHz
Frequency Bands Supported LTE Band 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 25
Antenna Type Omni-directional
Radiation Pattern Omni

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certification RoHS, REACH
Compliance Standards EN 60950-1, UL 60950-1
Hazardous Material Certification RoHS Compliant

Advanced Security Features
Security Functions

Interfaces
Connector Type TNC Male Connector
Supported Technologies 3G, 4G, LTE
Impedance 50 Ohms
Gain 4 dBi
Polarization Vertical
VSWR < 2.0:1
Maximum Input Power 10 Watts

Physical & Environmental
Outdoor Usage Yes
Weather Resistance IP67 Rated
Operating Temperature Range -40°C to +85°C (-40°F to +185°F)
Storage Temperature Range -40°C to +85°C
Humidity Tolerance 5% to 95% (non-condensing)
Material UV-resistant plastic and sealed metal base
Color White
Dimensions (H x D) 172 mm x 60 mm (6.77 in x 2.36 in)
Weight 250 g (0.55 lb)
