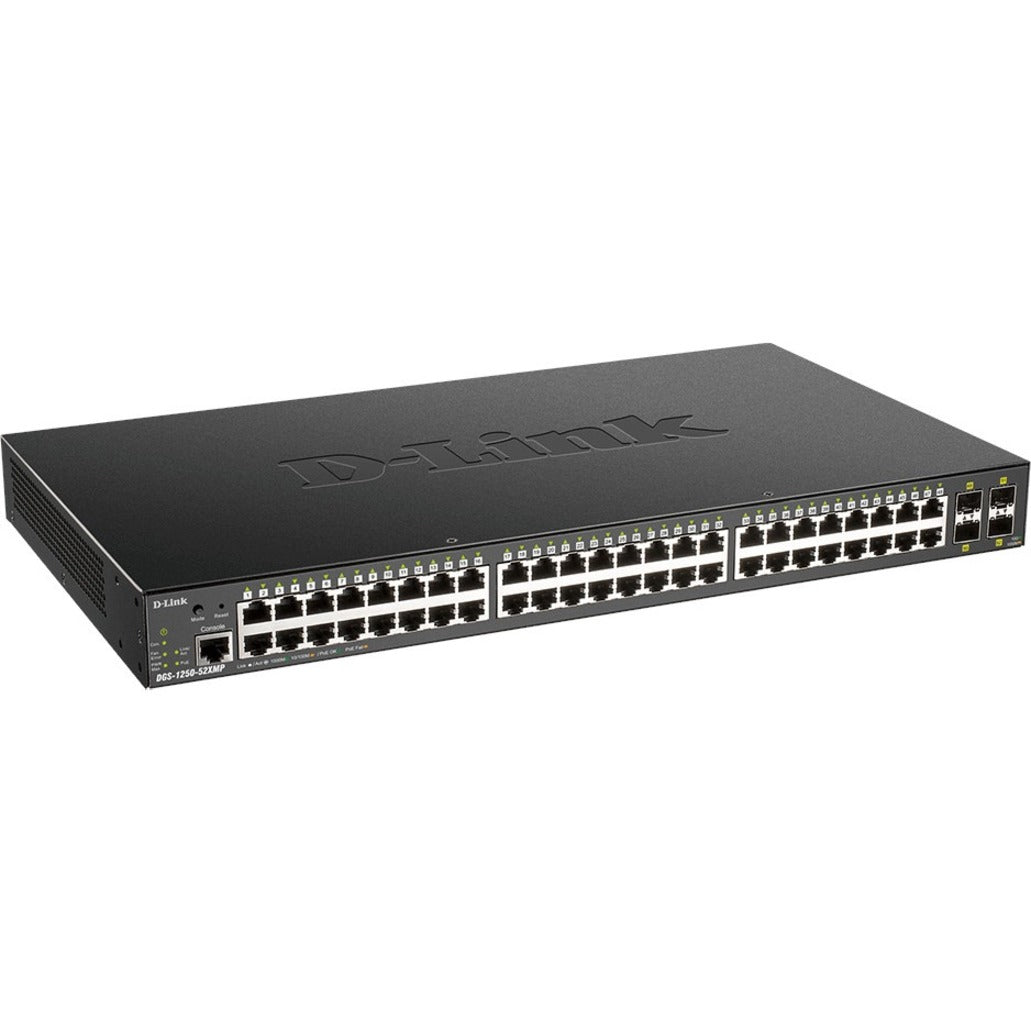

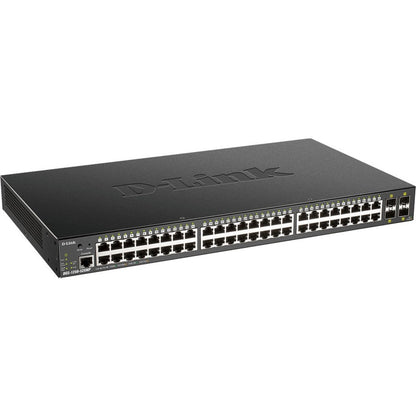

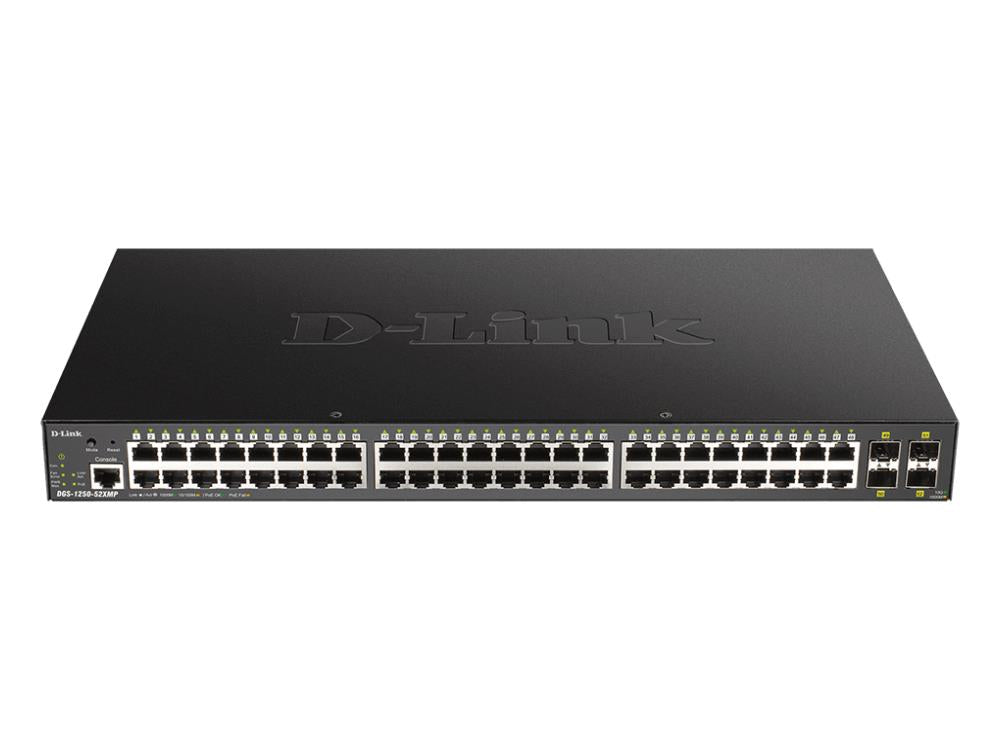

D-Link DGS-1250-52XMP-6KV 52-Port Smart Managed Gigabit PoE Switch

VENDOR: D-LINK Mfg Part#: DGS-1250-52XMP-6KV UPC#: 790069458842
  • The D-Link DGS-1250-52XMP-6KV is a high-performance 52-port Smart Managed Gigabit PoE switch with 4 10G SFP+ uplinks and robust Layer 2/3 switching features. Designed for scalable deployments, it offers 370W PoE power, remote management, and enterprise-grade security. This 1RU wired solution is ideal for high-density networking in business and campus environments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,223.00
$1,223.00
Sale Sold out
MSRP: $1,543.00
Shipping calculated at checkout.
  • 48 x 10/100/1000BASE-T PoE ports plus 4 x 10G SFP+ uplinks with console port
  • 370W total PoE power budget to support high-density PoE device deployments
  • Advanced Layer-2 and Layer-3 features including IPv4/IPv6 routing
  • Supports Jumbo Frames up to 12,000 bytes and 32K MAC address table
  • Remote management via SNMP, SSH, DHCP; Secure authentication with RADIUS/TACACS+
  • High-performance hardware with 256MB RAM and 64MB flash memory
View full details

Key Benefits

Eye-Insights
  • High port density and PoE budget support large-scale IP surveillance or wireless deployments
  • Advanced enterprise-class management and Layer 3 routing features enable scalable network design
  • Long lifecycle and low maintenance ensured by high MTBF (309,053 hours) and robust thermal tolerance

Product Overview

The D-Link DGS-1250-52XMP-6KV is a 52-Port Smart Managed Gigabit PoE Switch engineered for professional network environments demanding power efficiency, scalability, and control. With 48 10/100/1000BASE-T PoE ports and 4 10G SFP+ uplinks, it ensures superior data throughput and flexible uplink capabilities. Supporting a total of 370W PoE budget, the switch powers devices like VoIP phones and IP cameras without additional cabling.

This 1RU rackmount switch features advanced Layer 2 and Layer 3 capabilities including IPv4/IPv6 routing, Jumbo Frame support up to 12,000 bytes, and a 32K MAC address table. It supports key IEEE standards and secure authentication via RADIUS/TACACS+, making it well-suited for enterprise and TAA-compliant deployments. Remote management is facilitated via SNMP, SSH, and DHCP, backed by 256MB RAM and 64MB flash storage.

With a metal chassis, LED status indicators, and operating temperature range of 5°C to 50°C, the DGS-1250-52XMP-6KV is built for reliability. Its compact build and high MTBF of over 309,000 hours deliver strong ROI and minimal disruption in mission-critical operations.

Specifications

Primary Information
Network Device Type Switch
Model DGS-1250 Series
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Networking / Ports Qty 53
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 256 MB
Flash Memory / Installed Size 64 MB
Networking Compliant Standards IEEE 802.3af/at, 802.1D, 802.1W, 802.1s, 802.1p, 802.3u, 802.3ab, 802.3z
Media Layer Supported Layer-2, Layer-3
Power / Device Type Power Supply
Power / Voltage Required 100 to 240 V AC 50/60 Hz
MTBF 309053.10 hours
Features 48 x 10/100/1000BASE-T PoE ports; 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement; Lite L3 Static Routing for increased network efficiency; Advanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT network; 370W PoE Power Budget (802.3af/at) to allow more power for connected devices
Form Factor 1RU
Status Indicators LED Indicators

Interfaces / Ports
Interfaces 48 x 10/100/1000 BASE-T PoE; 4 x 10G SFP + ports, Console Port
10/100/1000BASE-T Ports 48
SFP+ Ports 4

Special Feature
Min Operating Temperature 5 Celsius
Max Operating Temperature 50 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 70 Celsius
COO TAIWAN
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support YES
PoE Power Consumption 370W
MAC Address Table Size 32k
Jumbo Frame Support Up to 12000 bytes
Remote Management Protocol DHCP; SSH; SNMP
Routing Protocol IPv4, IPv6
Authentication Method RADIUS/TACACS+
10/100/1000BASE-T Ports 48
SFP+ Ports 4
Interfaces 48 x 10/100/1000 BASE-T PoE; 4 x 10G SFP + ports, Console Port

Dimensions&Miscellaneous
Width 17.32 Inch
Depth 9.84 Inch
Height 1.73 Inch
Weight 3.85 Kg

UNSPSC Code
UNSPSC Code 43222612
