| Product Type | Stackable Layer 3 Managed Switch |
| Model | DGS-3130-54S |
| Form Factor | Rack-Mountable |
| Mounting Type | Rack-mountable (1U) |
| Connectivity Technology | Wired |
| Power Supply | Internal AC power supply |
| Redundant Power Option | Yes, via DPS-500A RPS |
| Power Consumption (Max) | 61.6 W |
| Weight | 4.42 kg |

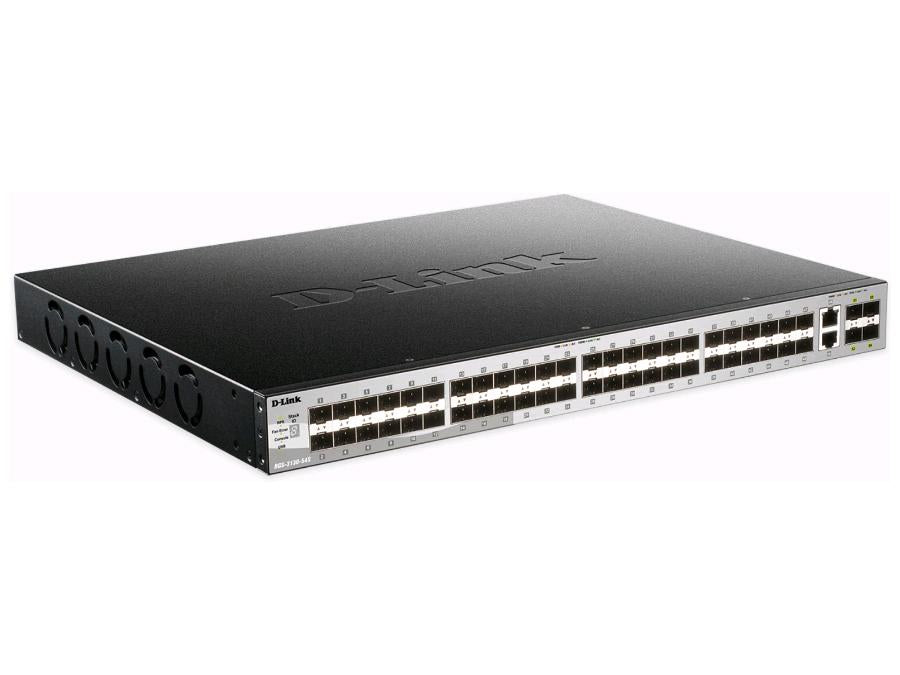

D-Link DGS-3130-54S 48-Port L3 Stackable Managed Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$3,190.00
Regular price
Sale price
$3,190.00
Unit price
per
MSRP: $4,145.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 48 x 1Gbps SFP ports, 2 x 10GBASE-T ports, and 4 x 10G SFP+ uplinks for high-density networking
- Advanced Layer 3 features including Static Routing, RIP/RIPng, OSPFv2/v3
- Supports IGMP v1/v2/v3 Snooping for multicast traffic optimization
- 6 kV surge protection for enhanced equipment safety
- Rack-mountable form factor with optional redundant power supply (DPS-500A)
- SNMP, RMON, HTTP, VLAN, and DHCP remote management protocols
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for enterprise and campus networks requiring high-density fiber and 10G uplinks
- Supports advanced dynamic and static routing protocols for scalable infrastructure
- Reliable hardware with surge protection and optional redundant power supply minimizes downtime
Product Overview
The D-Link DGS-3130-54S is a rack-mountable, high-capacity Layer 3 managed switch featuring 48 x 1Gbps SFP ports, 2 x 10GBASE-T, and 4 x 10G SFP+ uplinks designed for enterprise networking. It supports advanced routing protocols including Static Routing, RIP/RIPng, and OSPFv2/v3 alongside IGMP snooping for efficient multicast traffic. Management options include SNMP, RMON, HTTP, VLAN, and DHCP. With 6 kV surge protection and optional redundant power support via DPS-500A, it offers increased network resilience. TAA compliance and Taiwan origin further support its enterprise readiness.
Specifications
Product Overview
Cloud Management & Licensing
| Management Interface | Web UI, CLI, SNMP, RMON |
| Supported Protocols | SNMP, RMON, HTTP, BOOTP, VLAN, DHCP |
| Stacking Support | Yes, physical and virtual stacking |
| Max Stack Units | Up to 9 units |
Physical & Environmental
| Width | 17.32 in (440 mm) |
| Depth | 13.77 in (350 mm) |
| Height | 1.73 in (44 mm) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Cooling | Smart Fan Design with internal fans |
| Surge Protection | 6 kV Ethernet Surge Protection |
Interfaces
| Total Ports | 54 |
| SFP Ports | 48 x 1G SFP |
| 10GBASE-T Ports | 2 x 10G RJ45 |
| 10G SFP+ Ports | 4 x 10G SFP+ |
| USB Port | 1 x USB Type-A |
| Stacking Ports | Supports stacking via 10G ports |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Data Transfer Rate | 1 Gbps / 10 Gbps |
Advanced Security Features
| Access Control | 802.1X Port-based/MAC-based Access Control |
| MAC Address Table Size | 32K entries |
| DHCP Snooping | Yes |
| IP Source Guard | Yes |
| Dynamic ARP Inspection | Yes |
| ACL Support | Yes (IPv4/IPv6 Layer 2/3/4 ACLs) |
| DoS Protection | Yes |
| Storm Control | Yes |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliance | Yes |
| Certifications | CE, FCC Class A, VCCI, BSMI, RCM |
