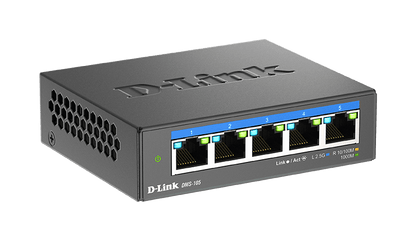

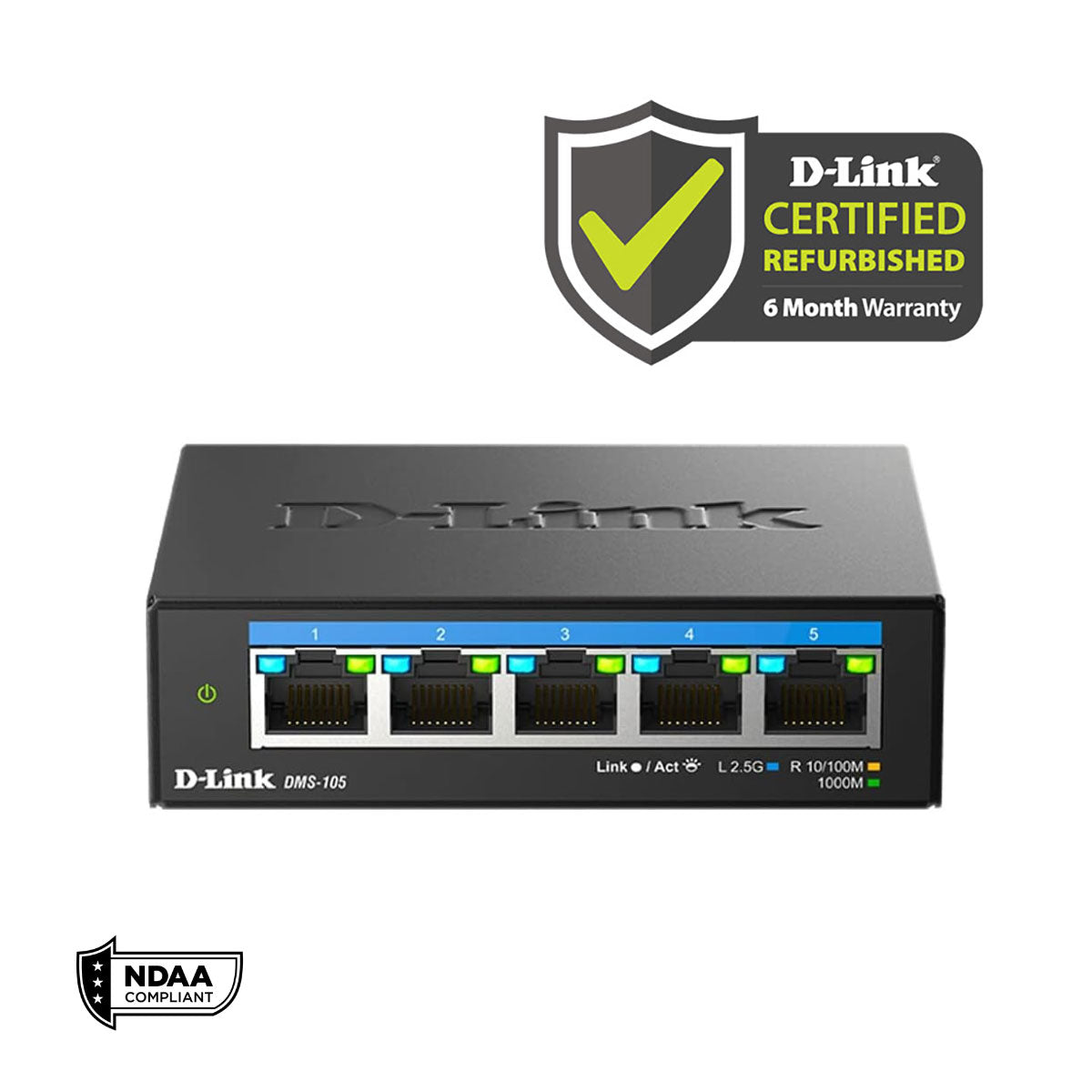

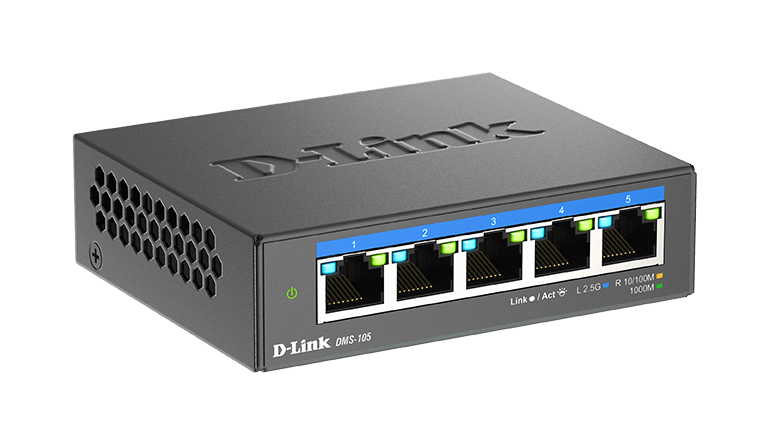

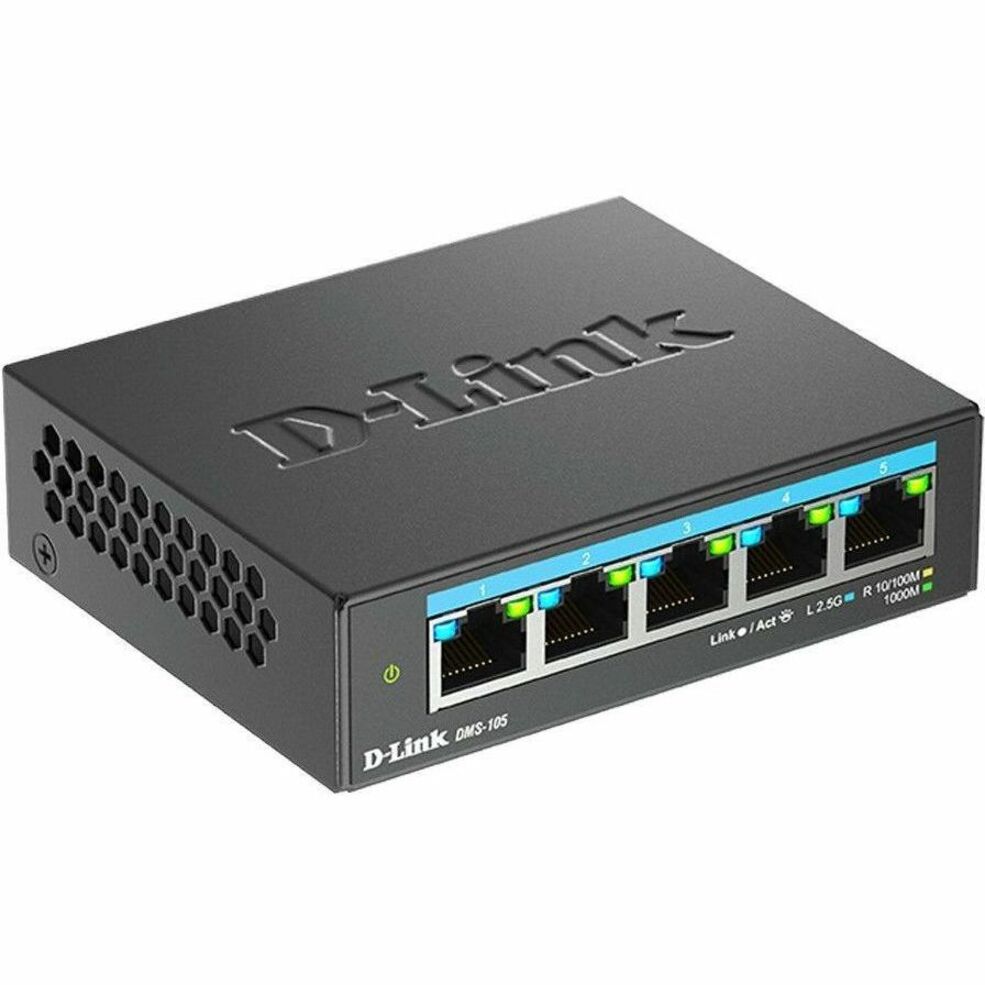

D-LINK DMS-105 5-Port Multi-Gigabit Unmanaged Ethernet Switch

VENDOR: D-LINK Mfg Part#: DMS-105 UPC#: 790069470554
1 3
Photo is for illustration purposes only. Actual product may be different.
$121.00
$121.00
Sale Sold out
MSRP: $218.00
Shipping calculated at checkout.
  • 5 unmanaged multi-gigabit Ethernet ports
  • IGMP Snooping for optimized multicast performance
  • Fanless design for silent operation
  • TAA compliant for government and enterprise use
  • Manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for multicast data streams with IGMP Snooping, improving bandwidth efficiency in media-rich environments.
  • Silent operation due to fanless design is ideal for office or studio setups that require minimal noise.
  • TAA compliance enhances its value for government agencies and federal contractors seeking secure procurement sources.

Product Overview

The D-LINK DMS-105 is a compact 5-port unmanaged multi-gigabit Ethernet switch designed for plug-and-play performance. Featuring IGMP Snooping, it optimizes multicast traffic, making it perfect for bandwidth-intensive applications like streaming and video conferencing. Its fanless design ensures silent, reliable operation, ideal for quiet office setups. The device is both TAA-compliant and manufactured in Taiwan, enhancing its suitability for enterprise and government use. While deeper port-level specifications are not available, its core attributes make it a strong fit for small business networks seeking easy deployment and stable throughput.

Specifications

Product Overview
Product Type Unmanaged Ethernet Switch
Model Number DMS-105
Form Factor Desktop
No. of Ports 5
Mounting Type Desktop and Wall-Mountable
Housing Metal
Power Supply External AC Adapter
Input Voltage 5V DC
Power Consumption 9.1 Watts (maximum)
Fanless Design Yes
LED Indicators Power, Link/Activity/Speed
Traffic Prioritization IEEE 802.1p QoS

Physical & Environmental
Dimensions (W x D x H) 140 x 67 x 26 mm
Weight 0.29 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing
Cooling Passive (Fanless)

Cloud Management & Licensing
Cloud Management No
Management Interface None (Unmanaged)
License Requirement No license required

Interfaces
Ethernet Ports 5 x 10/100/1000/2500BASE-T
Port Speed 10/100/1000 Mbps and 2.5 Gbps
Port Type RJ-45
Auto MDI/MDIX Support Yes
Full/Half Duplex Support Yes
Plug-and-Play Yes
IGMP Snooping Yes

Compliance & Origin
TAA Compliance Yes
Country of Origin Taiwan
Certifications FCC Class B, CE, RoHS
EMI/EMC Standards CE, FCC Part 15 Subpart B
Safety Standards UL, LVD

Advanced Security Features
Basic Security 802.3az Energy-Efficient Ethernet (EEE)
