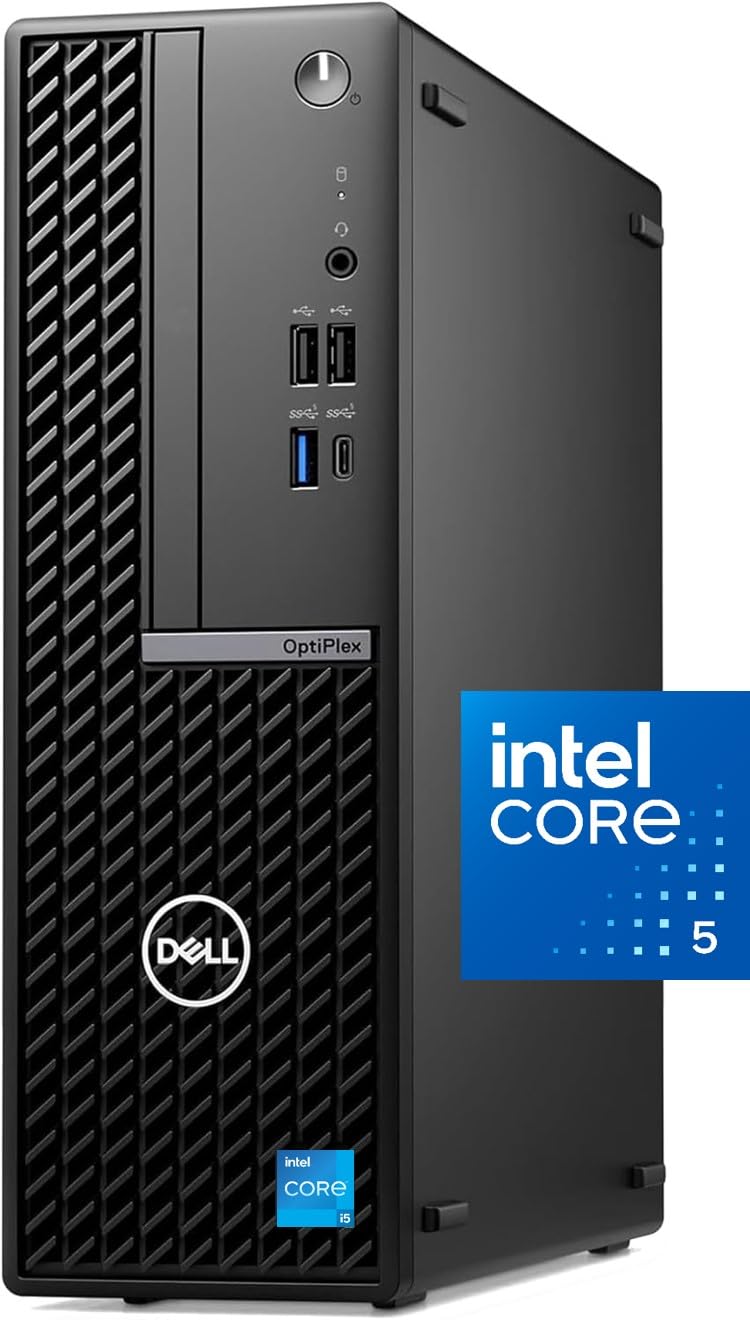

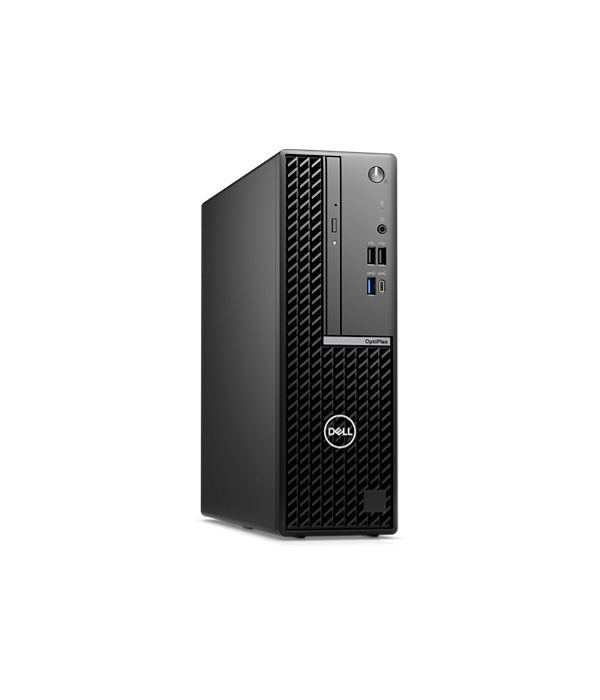

DELL OptiPlex 7020 SFF i5-14500 16GB 512GB SSD Win11Pro

VENDOR: DELL Mfg Part#: 9DN74 UPC#: 884116462217
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,531.00
$1,531.00
Sale Sold out
MSRP: $2,279.00
Shipping calculated at checkout.
  • Intel Core i5-14500 (14-core, 2.6GHz base, up to 5GHz turbo, 24MB Smart Cache)
  • 16GB DDR5 UDIMM RAM (max supported 64GB)
  • 512GB PCIe NVMe SSD for fast storage
  • Intel UHD Graphics 770 with support for up to 4 monitors
  • Wi-Fi 6 (802.11ax), Bluetooth, and Gigabit Ethernet connectivity
  • Includes DisplayPort, HDMI, 7 USB-A, and 1 USB-C interface options

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Equipped with a 14-core 14th Gen Intel Core i5 CPU and fast DDR5 RAM, ensuring future-proof performance for business applications.
  • Compact Small Form Factor design with powerful internals allows seamless deployment in space-constrained environments.
  • Secure and manageable with TPM, Windows 11 Pro, and a 3-year Basic Onsite hardware support plan for peace of mind and enterprise readiness.

Product Overview

The DELL OptiPlex 7020 Small Form Factor is engineered for business users who demand high efficiency in a compact footprint. Powered by the 14th generation Intel Core i5-14500 processor with 14 cores and a max turbo frequency of 5.0 GHz, this system provides robust performance for multitasking and productivity. With 16GB DDR5 RAM (expandable to 64GB), it ensures responsive computing for intensive tasks.

The 512GB PCIe NVMe SSD accelerates boot times and data access, ideal for business workflows. Integrated Intel UHD Graphics 770 support up to four monitors via HDMI and DisplayPort, ensuring flexibility. Networking includes Wi-Fi 6, Bluetooth, and Gigabit Ethernet, while connectivity is maximized via multiple USB ports including USB-C. Features like TPM security, Windows 11 Pro, and a 3-year Basic Onsite warranty make it ideal for secure and scalable IT environments.

Bundled with a wired Dell Keyboard and Mouse, and housed in a space-saving 3.64" wide chassis, the OptiPlex 7020 SFF is an optimal desktop for professional settings needing a balance of performance and reliability.

Specifications

Product Overview
Product Type Desktop Computer
Form Factor Small Form Factor (SFF)
Model OptiPlex 7020
Operating System Windows 11 Pro
Processor Intel Core i5-14500 (14-Core, 2.6GHz, Turbo up to 5.0GHz, 24MB Cache)
Processor Generation 14th Generation Intel
Chipset Intel Q670
Installed RAM 16 GB DDR5 UDIMM
Maximum Supported RAM 64 GB
RAM Technology DDR5
Storage Type PCIe NVMe SSD
SSD Capacity 512 GB
Optical Drive None
Included Accessories Dell Multimedia Wired Keyboard (KB216), Dell Optical Mouse (MS116)
Power Supply 180W
Color Black

Wireless Features
Wi-Fi Standard Wi-Fi 6 (802.11ax)
Bluetooth Version Bluetooth 5.3
Wireless Antennas Internal Antenna System

Compliance & Origin
Country of Origin Mexico
TPM Version 2.0 (Trusted Platform Module)
Regulatory Compliance RoHS, WEEE
Energy Star Certified Yes
EPEAT Rating EPEAT Gold

Advanced Security Features
Security Module Firmware TPM 2.0
Chassis Intrusion Detection Yes

Interfaces
USB-C Ports 1
USB-A 3.2 Gen 1 Ports 4
USB-A 2.0 Ports 3
HDMI Ports 1
DisplayPort Outputs 1
Total Video Outputs 2 (1x HDMI, 1x DisplayPort)
Maximum Supported Monitors 4
Ethernet Port 1x RJ-45, Gigabit Ethernet

Physical & Environmental
Width 3.64 in (92.5 mm)
Depth 11.52 in (292.6 mm)
Height 11.41 in (289.9 mm)
Weight Approx. 7.5 lb (3.4 kg)
Chassis Material Steel and Plastic

Cloud Management & Licensing
Management Tools Dell Client Command Suite
OS Licensing Windows 11 Pro, pre-licensed
Support & Warranty 3-Year Basic Onsite Service with Hardware-Only Support
