Eaton 9355 20KVA 208V Hardwired UPS Tower

VENDOR: EATON Mfg Part#: KB2013100000110
1 5

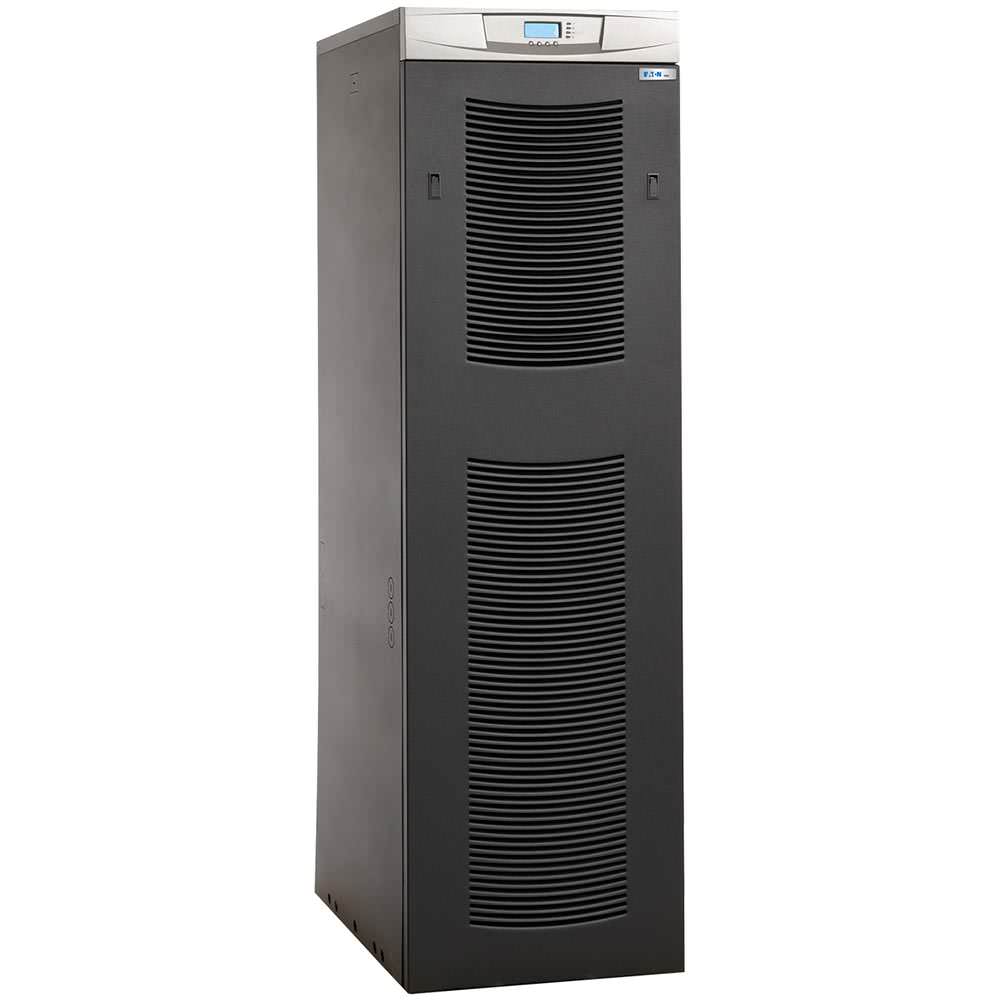

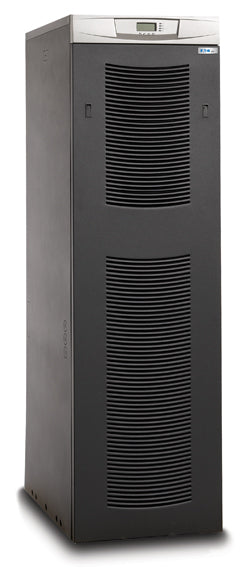

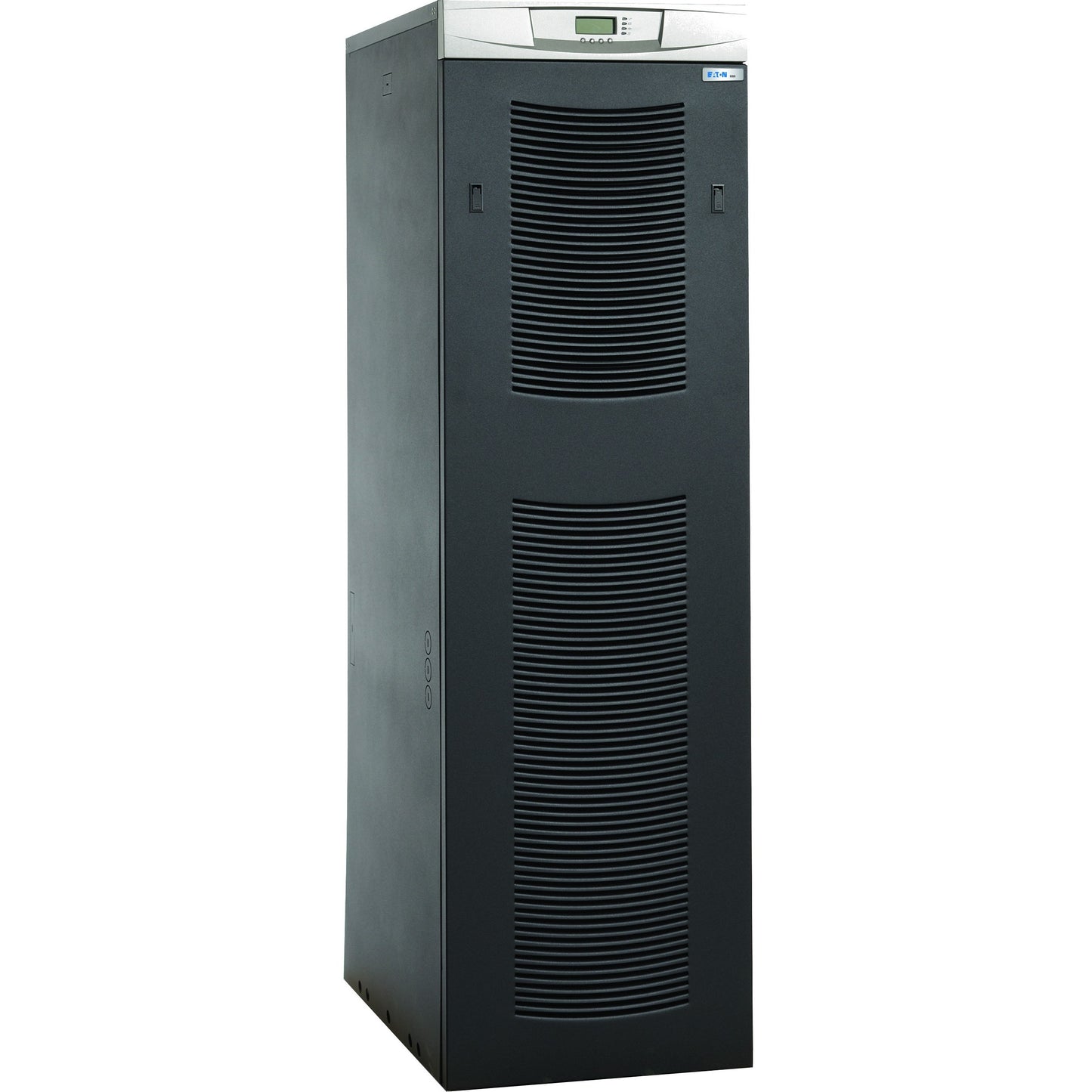

Photo is for illustration purposes only. Actual product may be different.
$34,700.00
$34,700.00
Sale Sold out
MSRP: $53,757.00
Shipping calculated at checkout.
  • - 20,000 VA power capacity with 208V input/output
  • - Double conversion UPS technology ensures clean, uninterrupted power
  • - ABM battery technology extends battery service life
  • - Connectivity options: RS-232, relay contact, REPO, and environmental inputs
  • - Tower form factor with dimensions: 20" W x 34" D x 66" H
  • - TAA compliant; manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Delivers premium, continuous power with double conversion technology to protect mission-critical systems
  • - TAA compliance and U.S. origin make it viable for government contracts and regulated industries
  • - ABM-enhanced lead-acid batteries boost reliability and lifespan, reducing long-term maintenance and cost

Product Overview

The Eaton 9355 20KVA UPS delivers high-performance double conversion power protection for mission-critical equipment. Designed with a 208V output/input and 20,000 VA capacity, it secures infrastructure from voltage fluctuations and outages. Its ABM battery technology enhances battery life, reducing total ownership costs. The unit's comprehensive interface options, including RS-232, REPO, and environmental inputs, enable remote management. Built in the USA and TAA compliant, the UPS suits government and enterprise-grade deployments. Its tower footprint balances power density and floor space efficiency.

Specifications

Product Overview
Type Uninterruptible Power Supply (UPS)
UPS Technology Double Conversion (Online)
Power Capacity 20 kVA / 18 kW
Output Voltage 208V
Input Voltage 208V
Input Frequency 50/60 Hz Auto-sensing
Form Factor Tower
Battery Type Valve-regulated lead-acid (VRLA)
Battery Technology ABM (Advanced Battery Management)
Internal Battery Runtime at Full Load 5 minutes (can be extended with external battery modules)
Scalability Yes, supports additional battery modules
Redundancy N+1 Parallel Redundant Configuration Supported
Hot Swappable Batteries Yes
Weight Approximately 790 lbs (358 kg)
Power Input Connection Hardwired

Physical & Environmental
Width 20 inches (508 mm)
Depth 34 inches (864 mm)
Height 66 inches (1676 mm)
Operating Temperature 0° to 40°C (32° to 104°F)
Storage Temperature -15° to 40°C (5° to 104°F)
Operating Humidity 0% to 95% non-condensing
Noise Level 55 dBA at 1 meter
Color Black

Cloud Management & Licensing
Network Management Optional Network Management Card (optional SNMP/Web card support)
Management Software Eaton Intelligent Power Manager (IPM)
Remote Monitoring Capabilities Yes, via Web/SNMP or Modbus cards
Firmware Upgradable Yes

Interfaces
Serial Port 1 x RS-232
Relay Contact Ports 1
Remote Emergency Power Off (REPO) 1
Environmental Input Ports 2
Expansion Slot Yes, optional connectivity cards
Communication Slot Type Eaton Mini-Slot
Available Network Options Optional SNMP/Web Card, Modbus, Relay Card

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, cUL, FCC Part 15 Class A, ISO 9001
Safety Standards UL, cUL Listed
Environmental Compliance RoHS Compliant

Advanced Security Features
User Access Control Yes, via network management card
Event Logging Yes
Secure SNMP Management SNMPv3 supported via optional card
